4
Horizontal Tail Installation
Before assembly, please inspect the contents of the kit. The photo below details the contents of the kit and
labels. If any parts are missing or defective, please indentify the name or part number (refer to the spare
parts list near the end of the manual) then contact your local shop or email us: support@fmsmodel.com

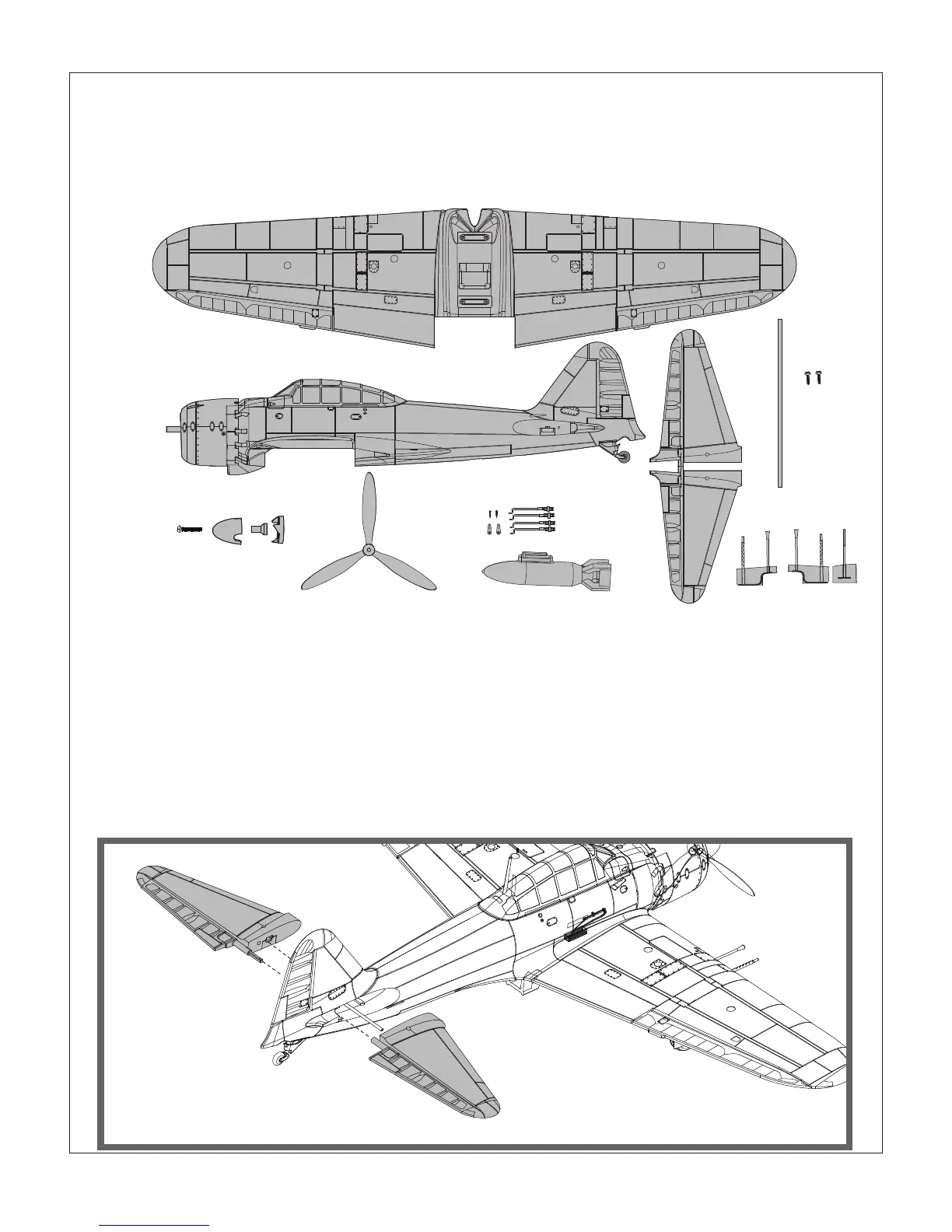

Contents of Kit
A: Main wing
B: Main fuselage
C1: Horizontal stabilizer (Left)
C2: Horizontal stabilizer (Right)
D: Pipe (For Horizontal Stabilizer)
E: Horizontal stabilizer mounting screws (PA2.3*10mm)
F: Spinner
G: Propeller
H: Linkage rods, control horns, servo arms
I: Bomb
J: Gun Barrel
A.
B. C1.
D. E.
F.
G.
H.
I. J.
C2.
fig1
1. Slide the horizontal tail tube into the hole in the rear of the fuselage. Install the 2 piece horizontal tail as
shown. Ensure the control horn faces down. Secure the two horizontal tail pieces in place using screws
PA2.3x10mm.
