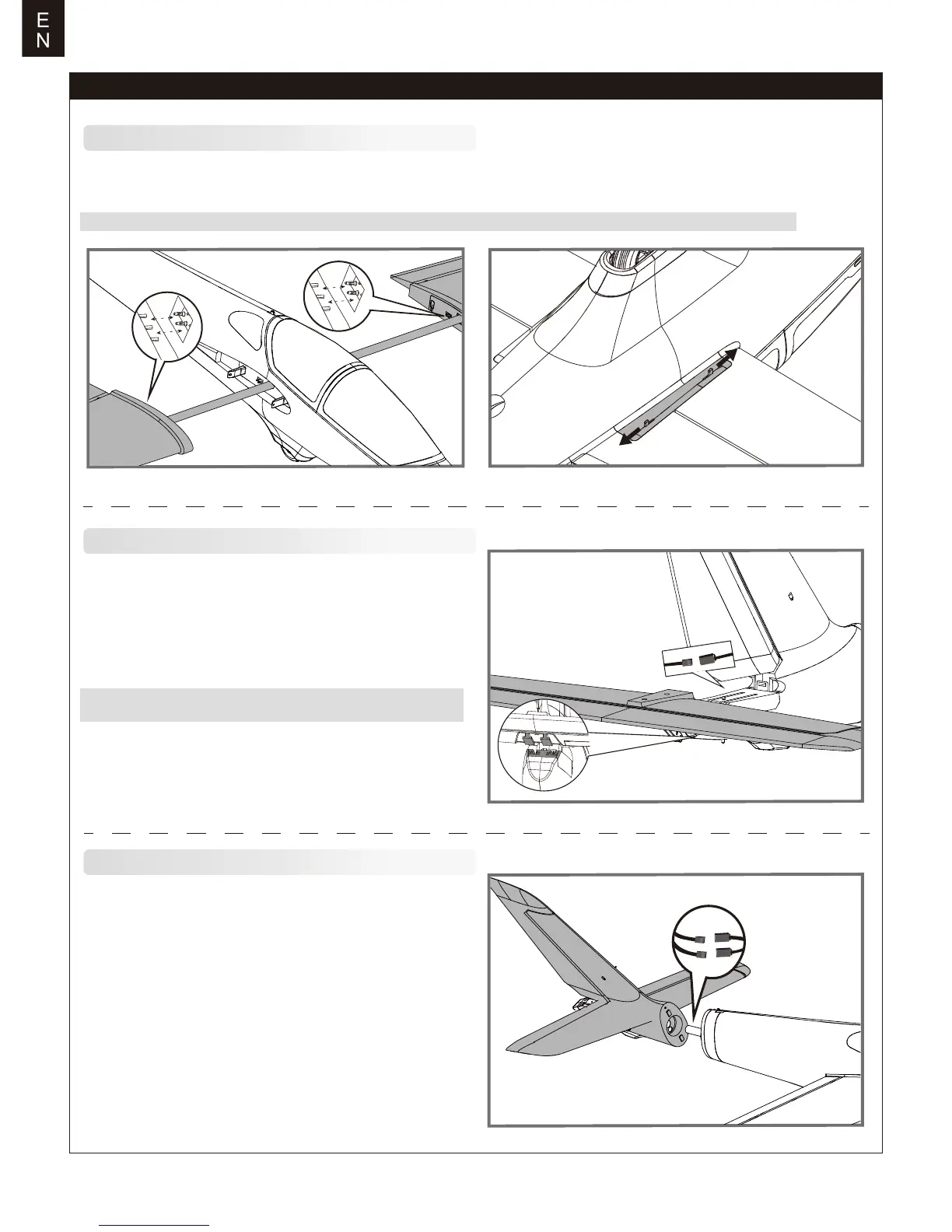

Main wing installation
Vertical stabilizer installation
Horizontal stabilizer installation
4
Model assembly
1.Ensure the control horn faces down as shown. Carefully insert
the horizontal stabilizer to the horizontal stabilizer slot until it is
properly in place and you hear a click.
Note: Align and connect the elevator servo plugs to the servo
extensions located within the fuselage.
1.Slide the Horizontal stabilizer spar into the fuselage. Align and
install the vertical stabilizer over the spar and into the vertical
stabilizer slot of the fuselage.
2.Connect the elevator and rudder servos to their respective
extensions in the fuselage.
EN
1.Align and slide the wing spar into the fuselage, then install both wings over the wing spar and into the wing slot of the fuselage.
2.Secure both wings onto the fuselage using the snap lock.The wings are successfully secured when you hear a click.
Notice: Ensure the snap lock is properly in place and the connectors on both sides are attached precisely and firmly.
