Connecting the battery
连接电池
28
Vehicle Setup
车辆设置

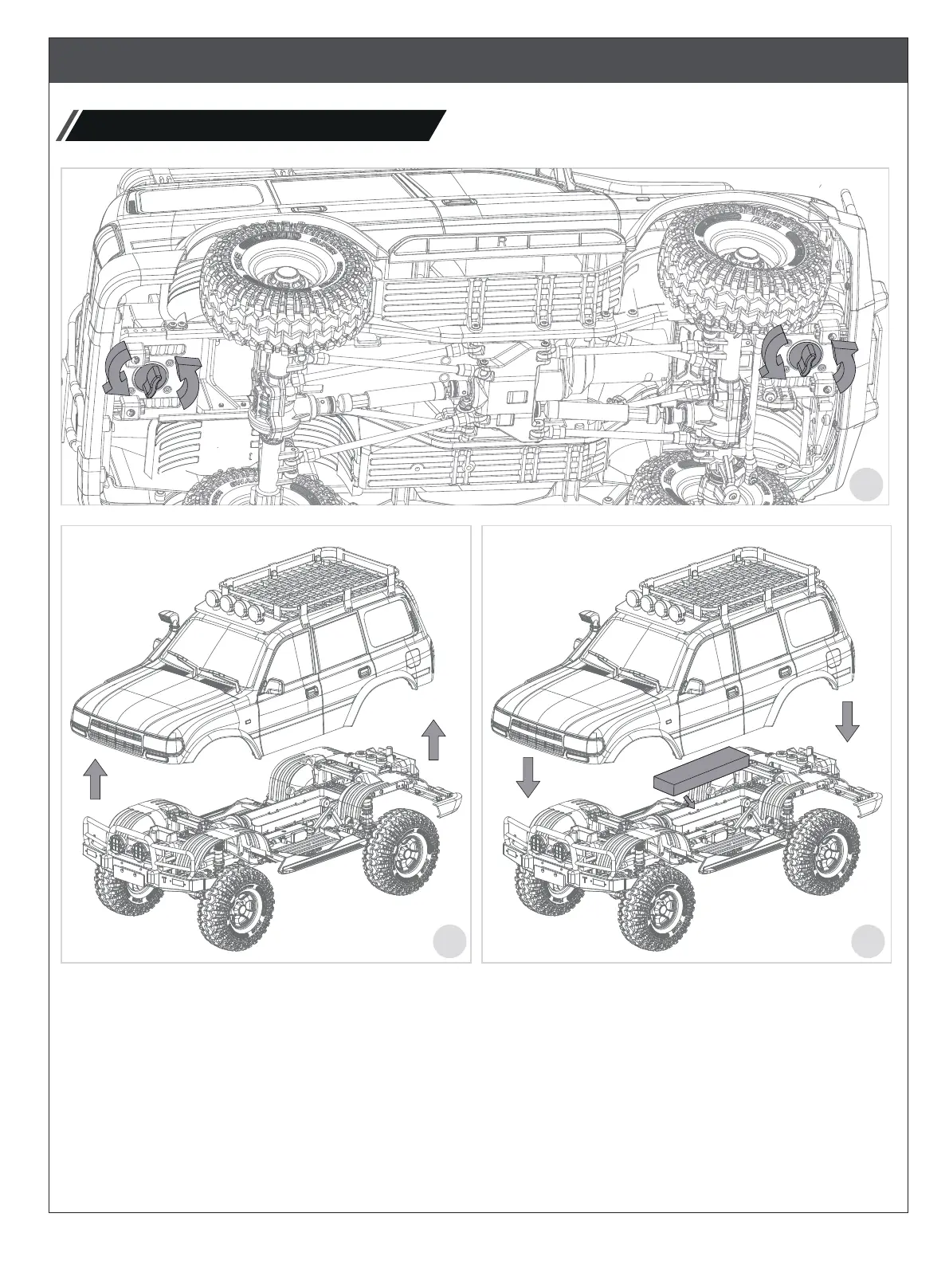

1. Gently push the front latches forward and the rear latches backward to separate the car shell from the chassis.
2. As shown in the diagram, place the battery inside the battery compartment and secure it in place using the included
battery strap，Connect the battery to the RX/ESC 2-in-1 unit (batteries sold separately, recommended batteries
are advised).
3. Align the front and rear pillars of the car shell with the corresponding snap joints on the chassis, then push them
in to reattach the car shell onto When there is a "click" sound from the front and rear shells, it means the car body
is installed in place.
Battery compartment size：140*47*40mm
The battery plug :XT60 Male
2
1
3
