This system is compatible with 2.4GHz 2A-BS protocol and consists of FS-FMS-MG6-BS transmitter and
FS-FMS-R6D-ESC-BS receiver. It supports two-way transmission and outputs six channels. The transmitter is
lightweight and compact in design, comfortable and ergonomic, it supports ESC parameters setting and compati-
ble with RC cars.
本系统采用 2.4GHz 2A-BS 协议，由 FS-FMS-MG6-BS 发射机和 FS-FMS-R6D-ESC-BS 接收机组成。支持双向传输 , 输出六
通道，外观轻巧，手感舒适，符合人体工程学，支持通过发射机设置电调参数，适配模型车使用。
Transmitter Instruction
发射机介绍

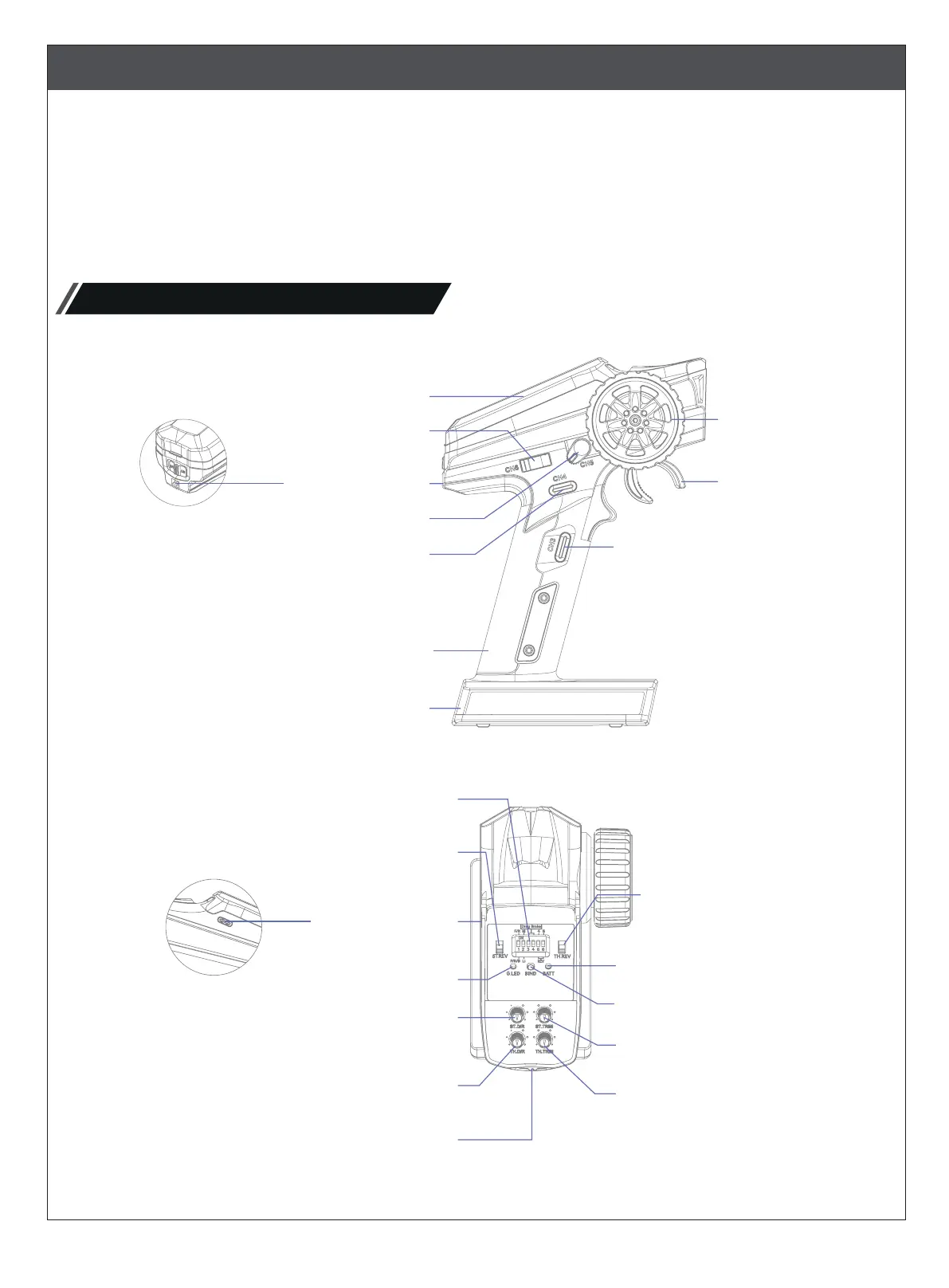

Transmitter Overview
发射机概览
8
Panel Flip Cover
功能面板保护盖
Steering Wheel(CH1)
方向手轮（CH1)
Throttle Trigger (CH2)
油门扳机（CH2)
CH3 Button with a Blue Indicator (CH3)
CH3 按键（CH3)，带蓝色指示灯
TH.REV Switch, for throttle
channel reverse
油门反向开关 (TH.REV)
BATT LED, RX Power Indicator
RX 电量指示灯 (BATT）
BIND Button
对码按键（BIND）
ST.TRIM Knob, to adjust the trim of
steering channel
方向微调旋钮（ST.TRIM）
TH.TRIM Knob, to adjust
the trim of throttle channel
油门微调旋钮（TH.TRIM）
CH6 Three-position Toggle Switch (CH6)
CH6 三档拨动开关
Neck Strap Hook
挂绳孔
CH5 Knob(CH5)
CH5 旋钮 (CH5)
CH4 Button with a Blue Indicator (CH4)
CH4 按键（CH4)，带蓝色指示灯
Handle
手柄
Battery Compartment(AA Battery*4/2S Lipo)
电池仓(4*AA 电池 /2S Lipo)
6-bit DIP Switch
六位拨码开关
ST.REV Switch, for steering channel reverse
方向反向开关（ST.REV）
USB Type-C Port
USB Type-C 接口
G.LED, Status Indicator
状态指示灯绿色（G.LED）
ST.D/R Knob, to adjust the rate of steering channel
方向比率旋钮 (ST.D/R)
TH.D/R Knob, to adjust the rate of throttle channel
油门比率旋钮 (TH.D/R)
OFF/ON Switch, Power Switch
电源开关（OFF/ON)
RS
MG6
R6D-ESC-BS二合一电调 60A
DB01 PWM INPUT
2S 5000mAh, 3S 5000mAh
有刷550 32T
10T
0.8P
47T
0.8P
R6D-ESC-BS二合一电调 60A
25KG金属齿 25.5Kg.cm 防水25T
13克金属齿
572*251*288 带射灯
325mm
203mm
51°
42°
55°
76mm
前2WS
45°
60°(人造草皮)
120mm,46mm
66mm,26mm
12mm
全车轴承
4WD
防溅水
140*47*40mm
10km/h / 22km/h
30min (3S 5000mAh 35C)
≤150m
