The LED status indicates the power supply status of the receiver and its operating status.
Off: The receiver is not powered on.
Solid ON: The receiver works normally.
Fast Flashing: The receiver is in the binding mode.
Slow Flashing: The transmitter bound is powered off, or it has been not bound with a transmitter, or the receiver
does not receive any signal.
All channel connectors are 2.54mm*3 Pin standard pins, and the battery connector is XT60 male connector, and the
spec of motor connector is a 4.0 mm bullet female connector. Connectors are used to connect the receiver to the
various components of the model.
接收机状态指示灯用于指示接收机的电源及工作状态。
指示灯灭：接收机电源未接通。
指示灯灯常亮：接收机正常工作。
指示灯快闪：接收机处于对码状态中。
指示灯慢闪：发射机未开机或未对码，无信号情况。
所有通道接口均采用标准 2.54mm*3 Pin 排针，电池接口采用 XT60 公头接口，马达接口采用 4.0 mm 子弹头母型接口，用于连接
接收机与模型的各个终端部件。

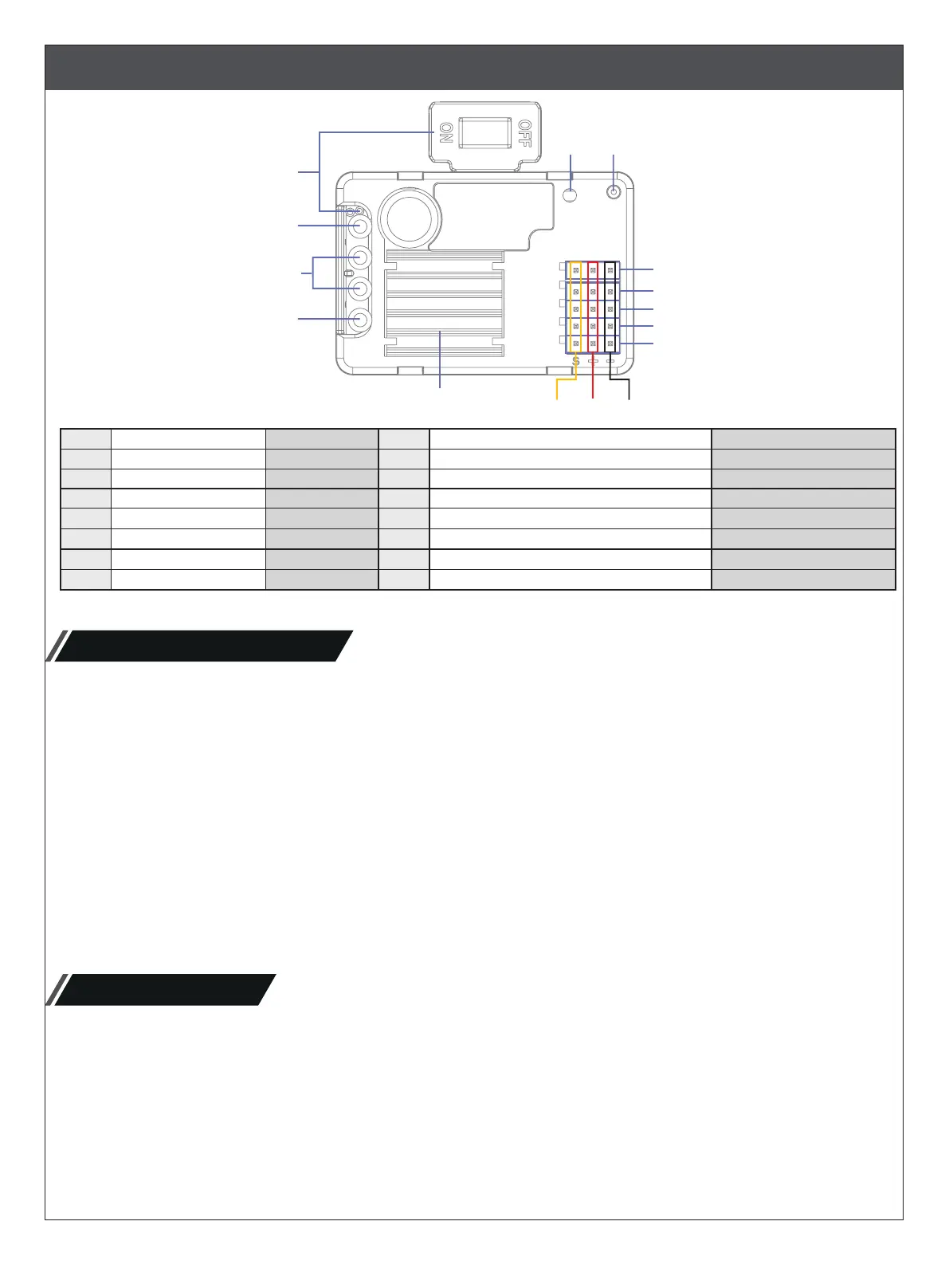

Receiver Overview
接收机概览
Receiver LED
接收机指示灯
Connector
接口
9
CH1 通道接口
CH3 通道接口
CH4 通道接口
LED 车灯接口
CH6 通道接口
天线
LED 指示灯
电源开关
马达接口 "+"
电池接口
马达接口 "-"
散热片
S（通道 / 车灯接口信号端 ）
+ ( 通道 / 车灯接口正极）
- ( 通道 / 车灯接口负极）
[1]
[7]
[6]
[2]
[3]
[4]
[5]
[13]
[12]
[11]
[10]
[9]
[8]
[14] [15]
[1] CH1 Connector [9] Motor Connector "+"
[2] CH3 Connector [10] Battery Connector
[3] CH4 Connector [11] Motor Connector "-"
[4] LED Light Connector [12] Heatsink
[5] CH6 Connector [13] S (Signal Pin of CH/ LED Light Connector ）
[6]
Antenna
[14] + (Anode of CH/ LED Light Connector ）
- (Cathode of CH/ LED Light Connector）
[7] LED [15]
[8]
Power Switch / / /
