It is an external antenna.
The transmitter has a built-in antenna. When the transmitter starts to work, the antenna automatically operate,with-
out additional operations.

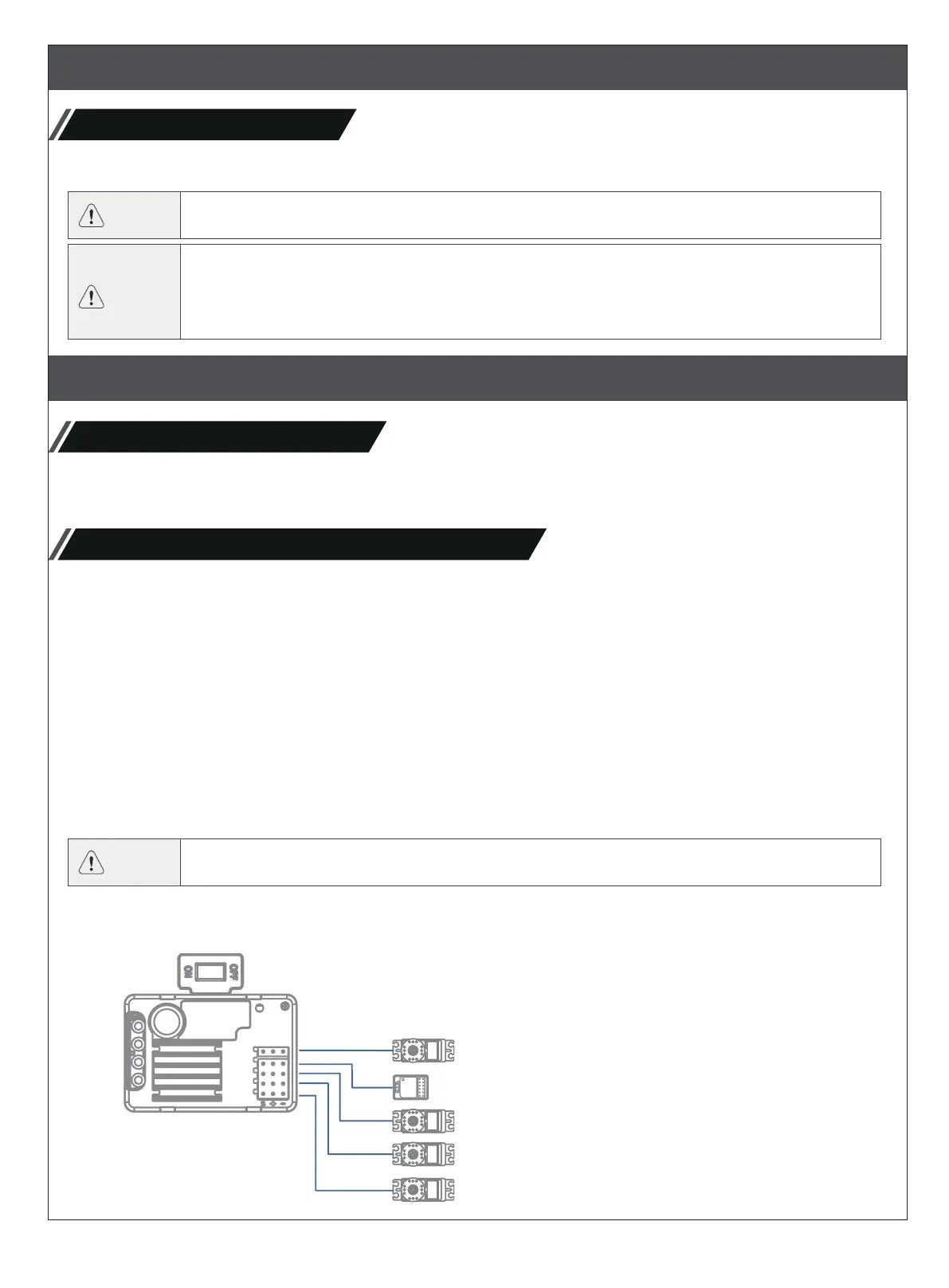

Connect the servos/car light drive board to the receiver according to the digram below.
Make sure that the receiver is mounted in an appropriate location within the model, to ensure a stable signal, maxi-
mum range and to mitigate external interference, follow these guidelines:
Pay attention to the following when installing the receiver:
1. Make sure the receiver is not installed near motors or sources of electrical noise.
2. Keep the receiver's antenna away from conductive materials such as carbon or metal. To ensure normal function,
make sure there is a gap of at least 1cm between the antenna and the conductive material.
本接收机天线为外置单天线。
本发射机天线为内置天线，发射机开始工作，天线自动工作，无需单独进行操作 !
请参考如下图示来连接接收机与舵机 / 灯板 :
请结合相应模型的结构选择合适的位置安装接收机， 同时为了确保接收机的性能和遥控距离的稳定，并防止外界干扰，请注意以下
操作事项：
安装过程中请注意以下事项：
1.确保接收机安装在远离电机，或电子噪声过多的区域。
2. 接收机天线需远离导电材料 , 例如金属棒和碳纤物质。为了避免影响正常工作，请确保接收机和导电材料之间至少有 1 厘米以上
的距离。
Receiver Overview
接收机概览
Receiver LED
接收机指示灯
Transmitter Antenna
发射机天线
Receiver and Servo Installation
接收机与舵机安装
Danger
注意
Do not pull the antenna of the receiver. Do not tie the antenna and the servo cable together.
不要拉扯接收机的天线，也不要将天线和舵机连接线绑在一起。
Danger
注意
To prevent damage do not power on the receiver during installation.
准备过程中，请勿连接接收机电源，避免造成不必要的损失。
Warning
警告
Do not put the antenna close to the metal materials, because this will affect the signal strength
of the receiver. Keep the receiver's antenna at least 1cm away from conductive materials such
as carbon or metal.
接收机天线需远离导电材料，例如金属棒和碳纤物质。为避免影响正常工作，请确保接收机天线 和导电
材料之间至少有 1cm 以上的距离。
10
Getting Started
使用前准备
Aux Channel Servo
辅助通道舵机
FS-FMS-DB01 Car Light Drive Board
FS-FMS-DB01 车灯驱动板
Aux Channel Servo
辅助通道舵机
Aux Channel Servo
辅助通道舵机
Steering Servo
方向舵机
CH1
CH4
CH3
LED
CH6
