10

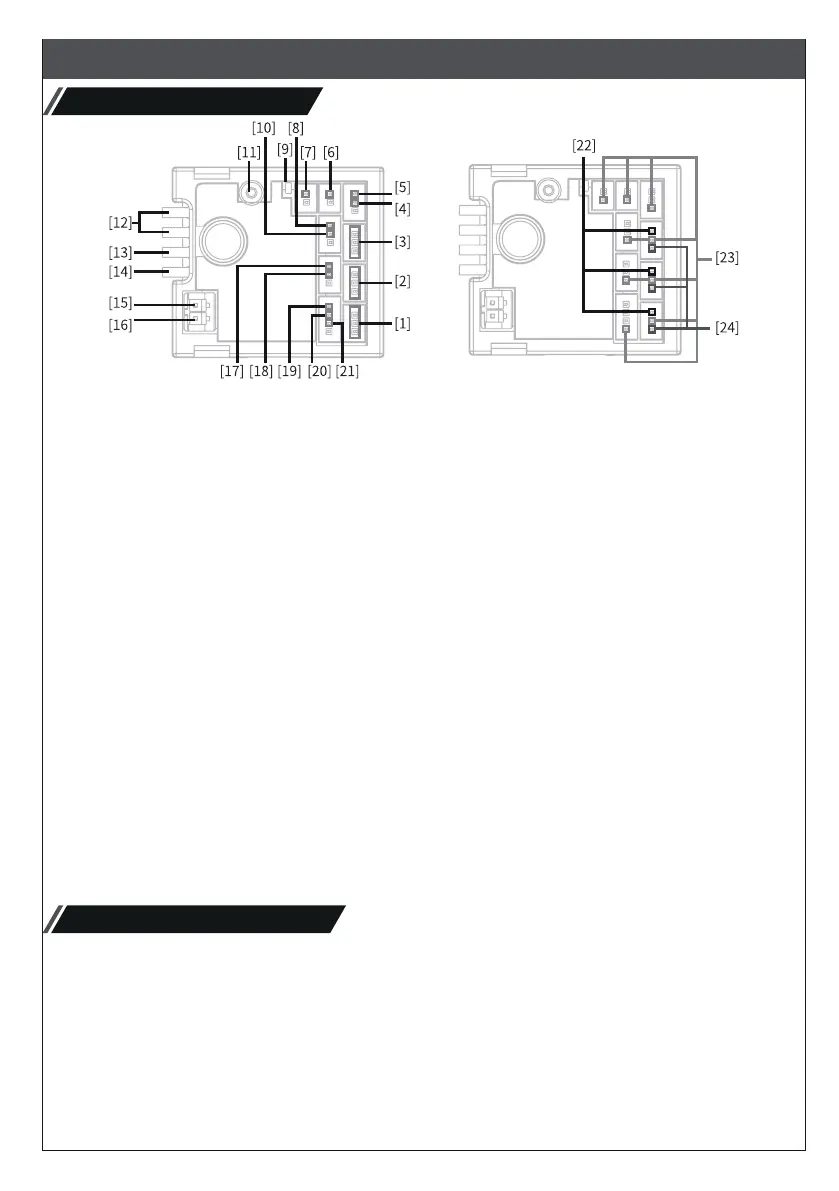

Overview
[1] CH1
[2] CH3
[3] CH4
[4] Headlight Interface
[5] Right Turn Signal Light Interface
[6] Fog Light Interface
[7] Fog Light Interface
[8] Left Turn Signal Light Interface
Overview Instruction
接收机概览
接收机
Receiver LED 接收机指示灯
[1] CH1
[2] CH3
[3] CH4
[4] 前灯接口
[5] 右转灯接口
[6] 雾灯接口
* Note: CH1, CH3 and CH4 interfaces use standard 1.25mm*3Pin terminal blocks. The car light interface
uses standard 1.25mm terminal blocks. The battery interface uses an Molex 51005 female connector.
The motor interface is a PH2.0 female terminal blocks.
The LED status indicates the power supply state of the receiver and its working state.
Off: The receiver is not powered on.
Solid on in red: The receiver is connected to the power supply. It works normally.
Fast flashing: The receiver is in the bind mode.
Slow flashing: The LED flashes slowly when the transmitter is powered off, unbound, or no signal.
* 注：CH1 通道、CH3 通道和 CH4 通道接口采用标准的 1.25mm*3Pin 端子座；车灯接口采用标准的
1.25mm 端子座；电池接入采用 Molex 51005 母座接口；马达接口采用 PH2.0 母座端子座。
接收机状态指示灯用于指示接收机的电源及工作状态。
灭：接收机电源未接通。 红灯常亮：接收机已连接电源，并正常工作。
快速闪烁：接收机处于对码状态中。 慢速闪烁：发射机未开机或未对码，无信号情况。
[9] LED
[10] Headlight interface
[11] Antenna
[12] Power Switch
[13] Battery Line Anode
[14] Battery Line Ccathode
[15] Motor Interface "M+"
[16] Motor Interface "M-"
[17] Left Turn Signal Light Interface
[18] Right Turn Signal Light Interface
[19] Tail Light Interface
[20] Brake Light Interface
[21] Backup Light Interface
[22] Signal Pin
[23] + (CH Interface/Light Interface Anode)
[24] - (CH Interface/Light Interface Cathode)
[7] 雾灯接口
[8] 左转灯接口
[9] LED 指示灯
[10] 前灯接口
[11] 天线
[12] 电源开关
[13] 电池线正极
[14] 电池线负极
[15] 马达接口 "M+"
[16] 马达接口 "M-"
[17] 左转灯接口
[18] 右转灯接口
[19] 尾灯接口
[20] 刹车灯接口
[21] 倒车灯接口
[22] 通道信号端
[23] 电源正极
[24] 电源负极
