电池连接：
电调连接电池时,要特别注意正负极位置,错误的连接会损坏电调和电池。如上图所示,电调正极线连接电池的正极,
负极线连接电池的负极。
电机连接:
电调与马达相连无严格的线序要求,电调的#A/#B/#C可以与电机的三线随意对接,若出现转向相反,任意交换两条马
达线即可。
接收机连接：
信号线提供6.0V电压给到接收机、舵机等,所以不需要额外的电池,外接电源到接收机可能会损坏电调。
黑线：RX- 负极
红线：RX+ 正极（6.0V）
白线：RX信号线
Battery Wire Connection
When connecting the battery, pay attention to polarity: incorrect connection will damage the ESC
and Battery.
As shown in the figure above, connect the positive (+) wire is connected to (+) battery par,and the
negative (-) wire is connected to the (-) battery port.
Motor Wire Connection
The A,8, #C wires ofthe Esc can be connected with the motor wires freely (without any sequencel.
lfthe motor runs in the oppoite direcion, please swaranytwo wire connections.
Receiver Wire Connection
The signal wire supplies 6.0v to the receiver,servo, etc, So there is no need to connect an additional battery.
Extemal power connected to the receiver maydamage the ESC.
Black wire: RX-
Red wire: RX+6.0V
White wire:RX-Signal

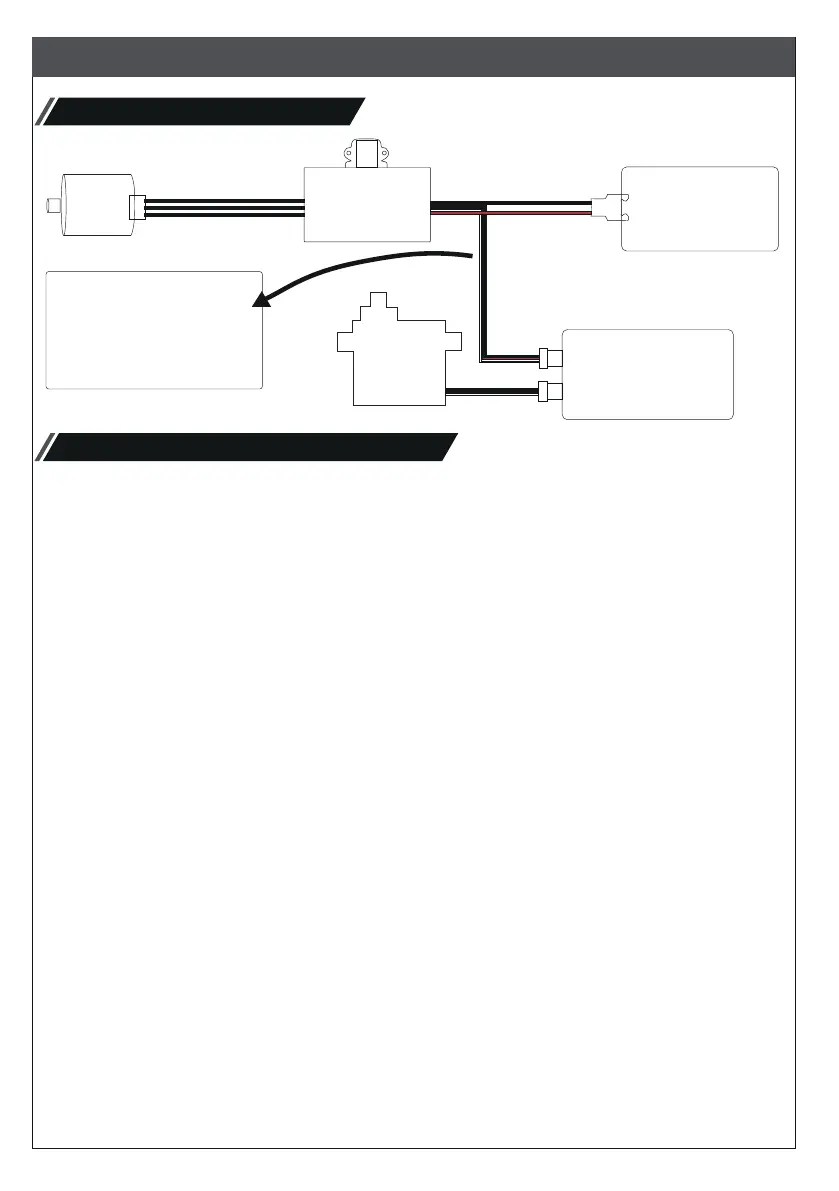

Connection
电调连接-示意图
Connection Installation
电调连接-说明
21
SL 10A 2S ESC User Manual
电调说明书
马达
Motor
ESC
Battery
Receiver
Servo
电调
舵机
接收机
电池
黑线：RX- 负极
Black: Ground (-)
Red: Positive (6V)
White: Signal
红线：RX+ 正极 （6.0V)
白线：RX信号线
