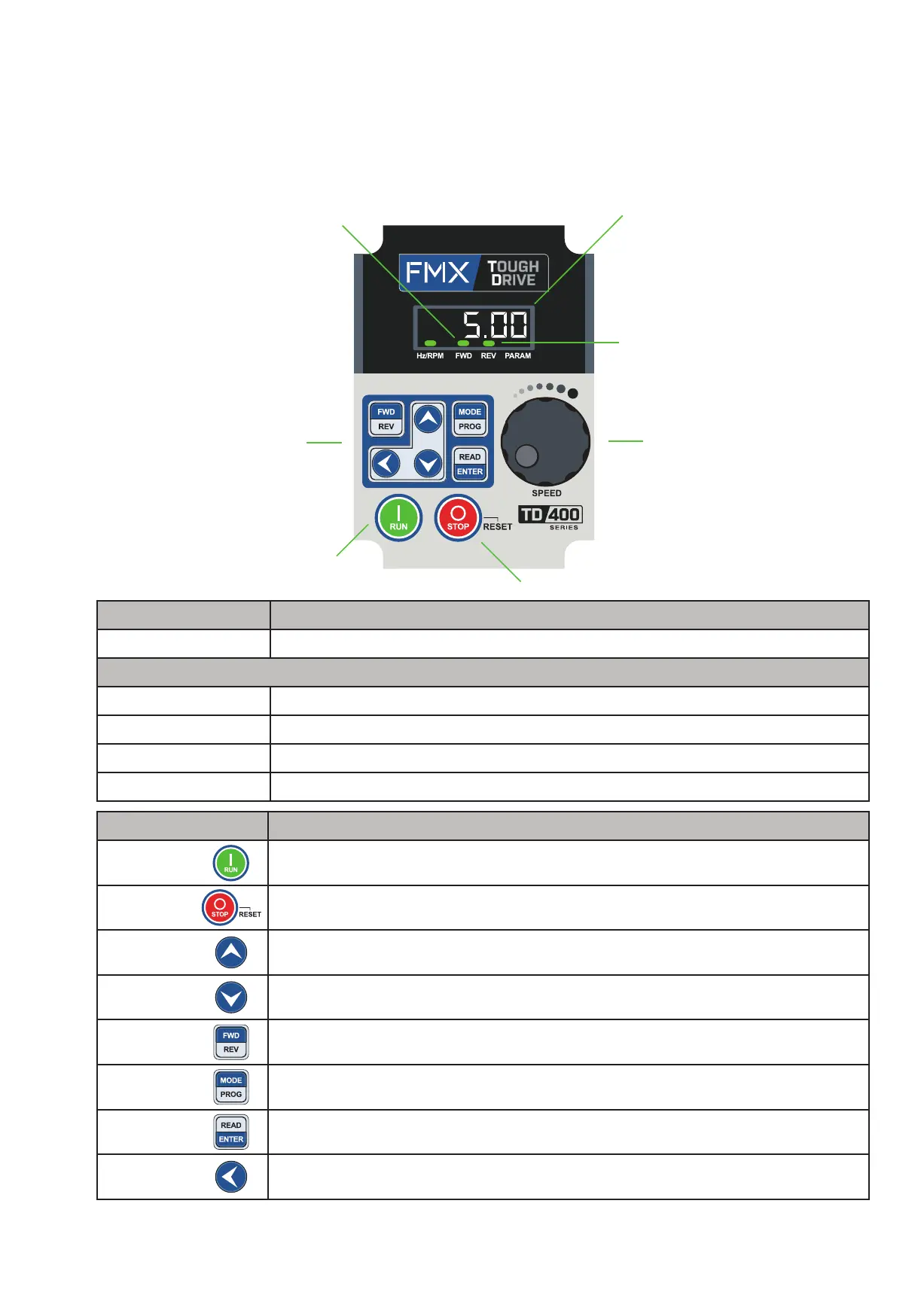

FMX TD400-2015-3PH - 4.1 LED Keypad

4-1
LED Display
Run Key
8 button
Membrane
Keypad
Stop/Reset Key
Forward Direction
Status Indicator
Reverse Direction
Status Indicator
Frequency
Potentiometer
DISPLAY Description
5 Digit LED Display Monitor AC Drive signals, view / edit parameters, fault / alarm display.
LED INDICATORS
Hz/RPM LED ON when frequency or line speed is displayed.
FWD LED ON when AC Drive is running in forward direction, flashing when stopping.
REV LED ON when AC Drive is running in reverse direction, flashing when stopping.
PARAM LED ON when parameters are displayed.
KEYS (8) Description
RUN
RUN AC Drive in Local Mode
STOP/RESET
STOP AC Drive and reset alarms or resettable faults
▲
Parameter navigation Up, increase parameter or reference value
▼
Parameter navigation Down, decrease parameter or reference value
FWD/REV
FWD: Forward Run / REV: Reverse Run
MODE/PROG
MODE: Switch between available display modes
PROG: View / Edit parameter value
READ/ENTER
Used to display parameter settings and save changed parameter settings
◄
Parameter navigation Back
4. User Interface and Programming
4.1 LED Keypad
4.1.1 LED Keypad Display and Keys
