Focus Paralane - Front Fender Assembly; Attach Front Fender; Adjust Fender Stay; Secure Front Fender and Stay

RIDE BEYOND
1
2
3
5
4
4
1
2
3
4
5
5
4
5
4
4
6
4
9
7
8
10
11
13
13
12
10
1
2
3
5
4
4
1
2
3
4
5
5
4
5
4
4
6
4
9
7
8
10
11
13
13
12
10

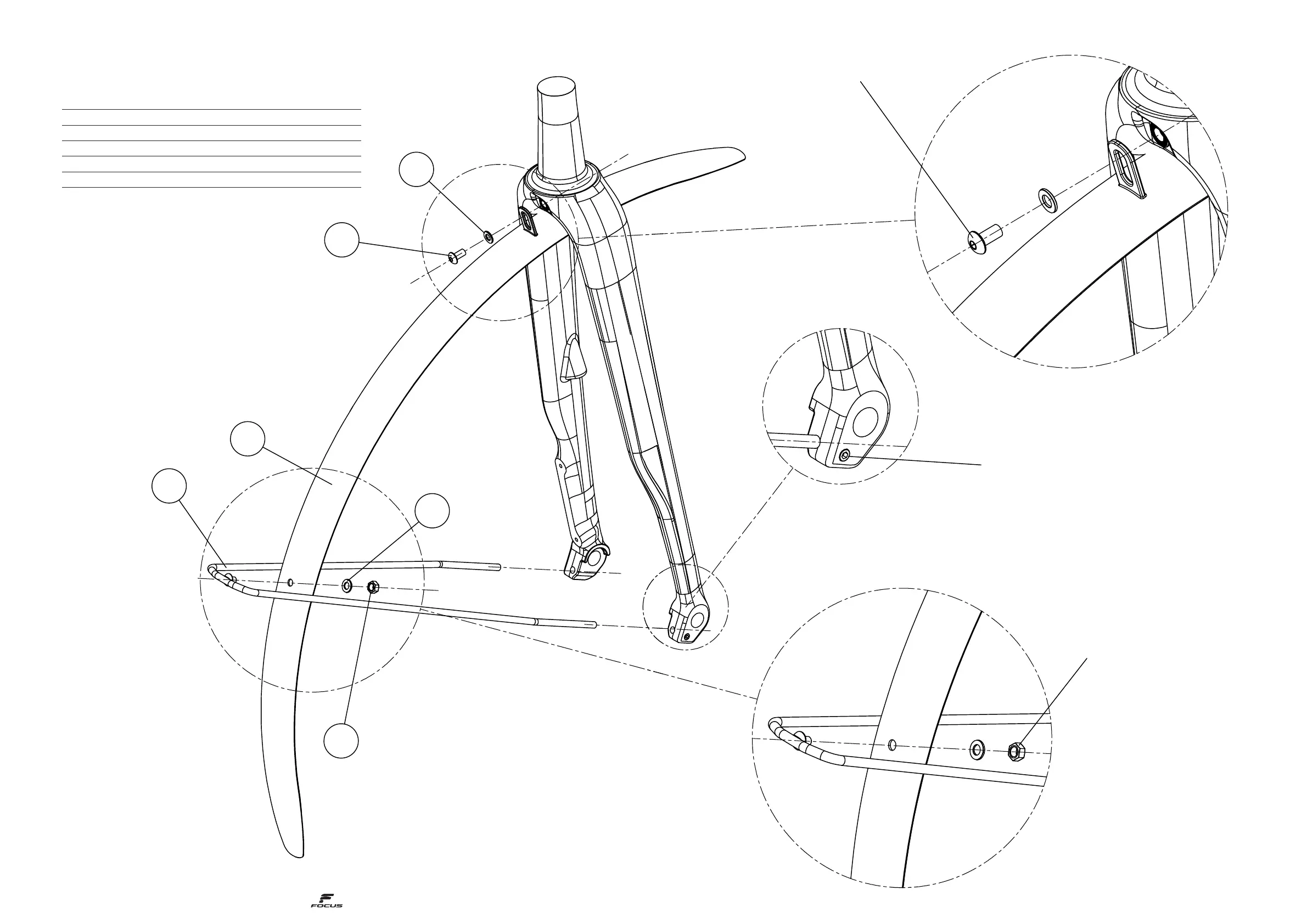

FRONT FENDER
POSITION DCW SKU DESCRIPTION QTY
01
140119013 Front fender 1
02
140219005 Front fenderstay 360 mm 1
03
199217001 M5 Nut – DIN 934 1
04
19936002 Washer – DIN 125 2
05
199114018 M5 x10 mm Screw – DIN 7380 1
IMPORTANT
Always wear personal protective equipment. In case you
have any doubt, please contact your local Focus dealer.
· Place the Fender, Washer and M5x10 Screw
· Tighten it (3
mm allen)
· With Fender and Stay placed
· Insert M5 Nuts and Washer
· Thighten it (8
mm wrench)
· Losen the M4 Screw (2.5 mm allen)
· Insert the Fender Stay (360 mm)
· Tighten the M4 Screw
· This operation is required on Left and Right sides
3 / 222 /8
