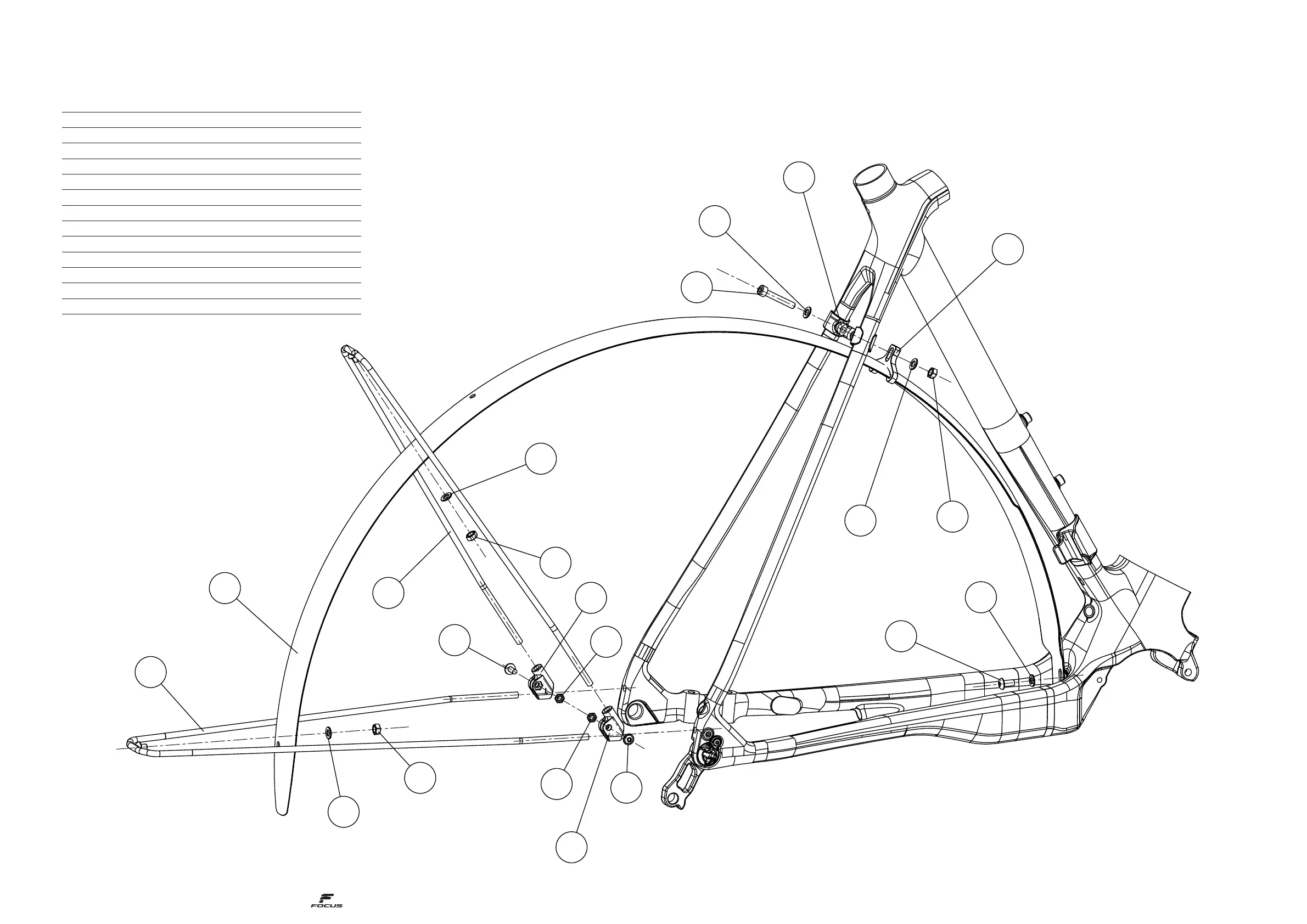

Focus Paralane - Rear Fender Assembly

RIDE BEYOND
1
2
3
5
4
4
1
2
3
4
5
5
4
5
4
4
6
4
9
7
8
10
11
13
13
12
10
1
2
3
5
4
4
1
2
3
4
5
5
4
5
4
4
6
4
9
7
8
10
11
13
13
12
10
REAR FENDER
POSITION DCW SKU DESCRIPTION QTY
01
140119014 Rear fender 1
02
140219003 Rear Fender Main Stay 370 mm 1
03
140219004 Rear Fender Auxiliary Stay 340 mm 1
04
19936002 Washer – DIN 125 5
05
199217001 M5 Nut - DIN 934 3
06
74970 M5 x 30 mm Screw - DIN 912 1
07
325917012 Seat Stays Bridge 1
08
140919003 Seat Stays Fender Hook 1
09
199114018 M5 x 10 mm Screw - DIN 7380 1
10
199119025 M4 x 10 mm Screw - DIN 7380 2
11
140219006 Stay Clip - Left 1
12
140219007 Stay Clip - Right 1
13
199219004 M4 Nut - DIN 439 2
IMPORTANT
Always wear personal protective equipment. In case you
have any doubt, please contact your local Focus dealer.
5 / 224 /8
