2.1

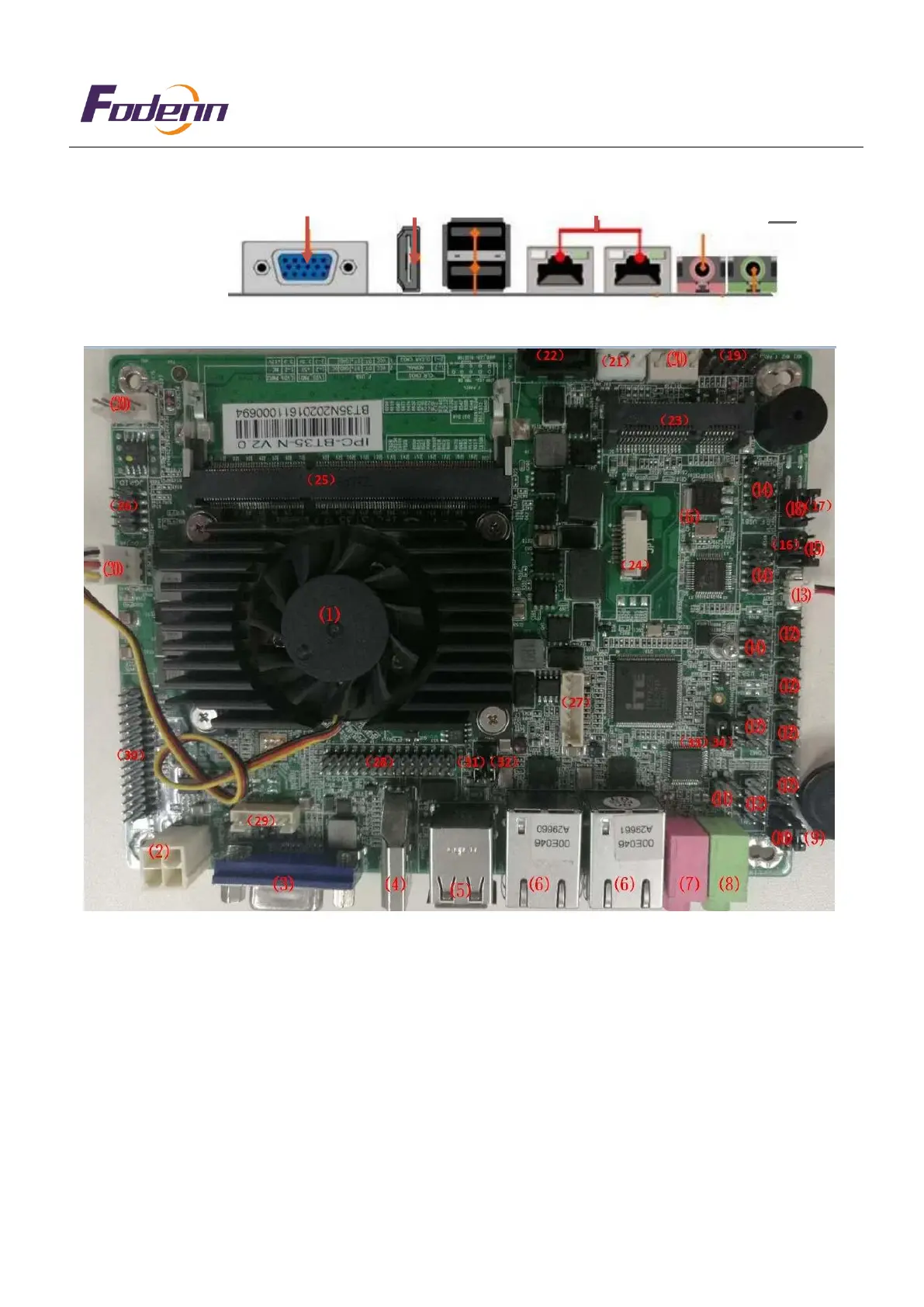

Port Explanatory Chart
1. CPU 2. Power Socket 3. VGA 4. HDMI
5. USB2.0 6.RJ45 7.MIC 8. Line-Out
9. JC21 10.JC61 11. Power Amilifier Pin 12.Series Pin
13. Battery Pin 14.F-USB 1/2/3 15.CLR-CMOS1 16.J1-485
17. J1-485 18.J1-422 19.F-Panel 20.System Fan,CPU Fan Pin
21. SATA Power 22.SATA 23.Mini-PCIE Slot 24. SIM Slot
25. Memory Slot 26.JGPIO 27. JPS2 28.LVDS Pin
29. Invert Pin 30.EDP Pin 31. LVDS-PWR2 32.LVDS-PWR1
33.JC11 34.JC12
To Next Page
