2.2 Inside Port

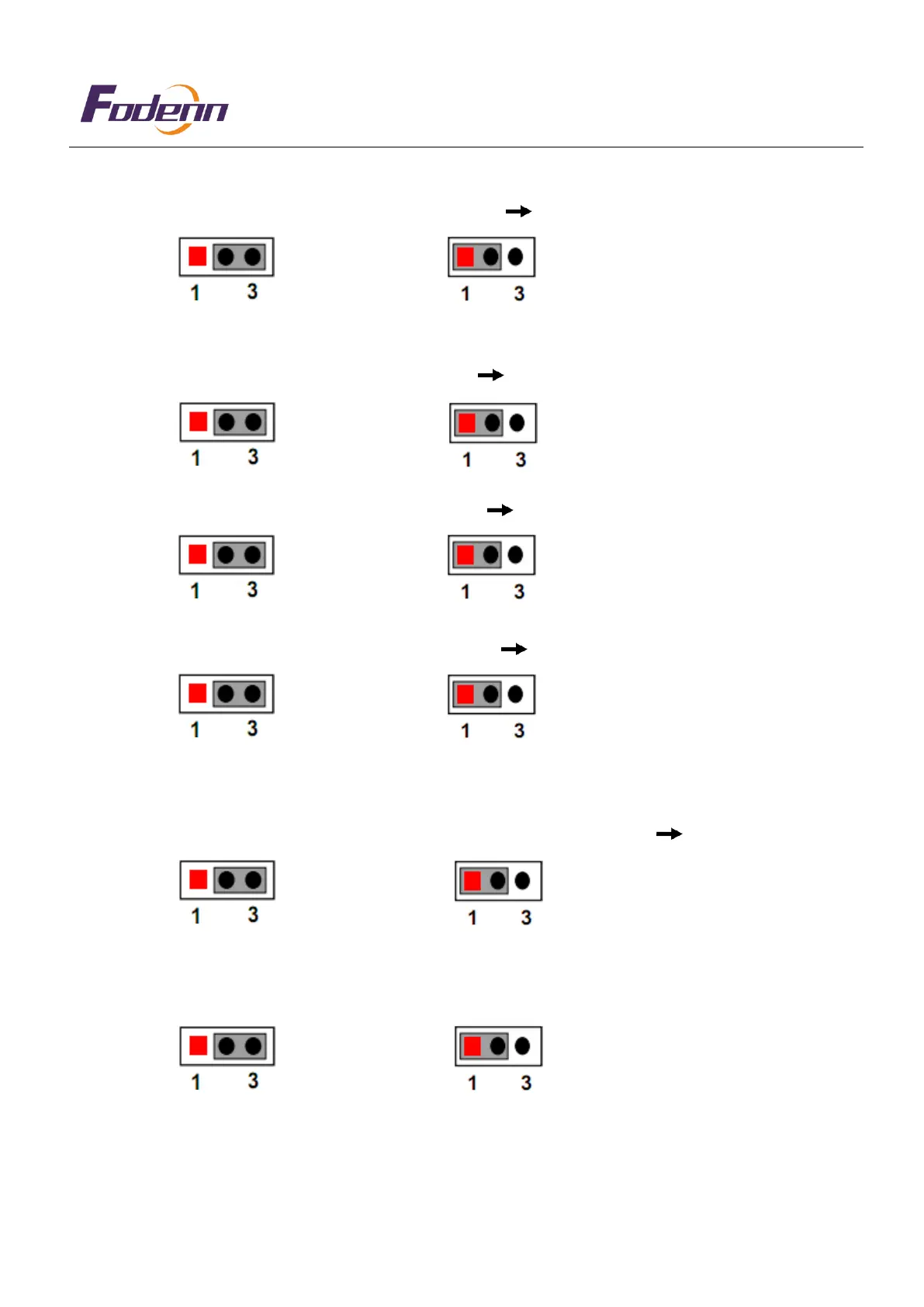

2.2.1 JC11(3-PIN):COM1 Port function set up(9-PIN) JC11 COM1
PIN2-3 Connection：RS232 PIN1-2 Connection：RS232(PIN1 is+5V)
JC12(3-PIN):COM1 Port function settings (9-PIN) JC12 COM1
PIN2-3 Connection：RS232 PIN1-2 Connection：RS232(PIN5 is+12V)
JC21(3-PIN):COM2 Port function settings(9-PIN) JC21 COM2
PIN2-3 Connection：RS232 PIN1-2 Connection：RS232(PIN1 is+5V)
JC61(3-
PIN):COM1 Port function settings(9-PIN) JC61 COM6
PIN2-3 Connection：RS232 PIN1-2 Connection：RS232(PIN1 is+5V)
2.2.2 J1_485/J2_485(3-PIN):COM2
Port function settings
（9-PIN） J1_485/J2_485 COM2
PIN2-3 Connection：RS232 PIN1-2 Connection：
RS485
J1_422(3-PIN):COM2 Port function settings（9-PIN） J1_422 COM2
PIN2-3 Connection：RS232 PIN1-2 Connection：RS422
