Fomotech Alpha 608B - Battery Charger LED Status Light

- 45 -
Charging
Charging completed
Charging failed
:
:
:
POWER

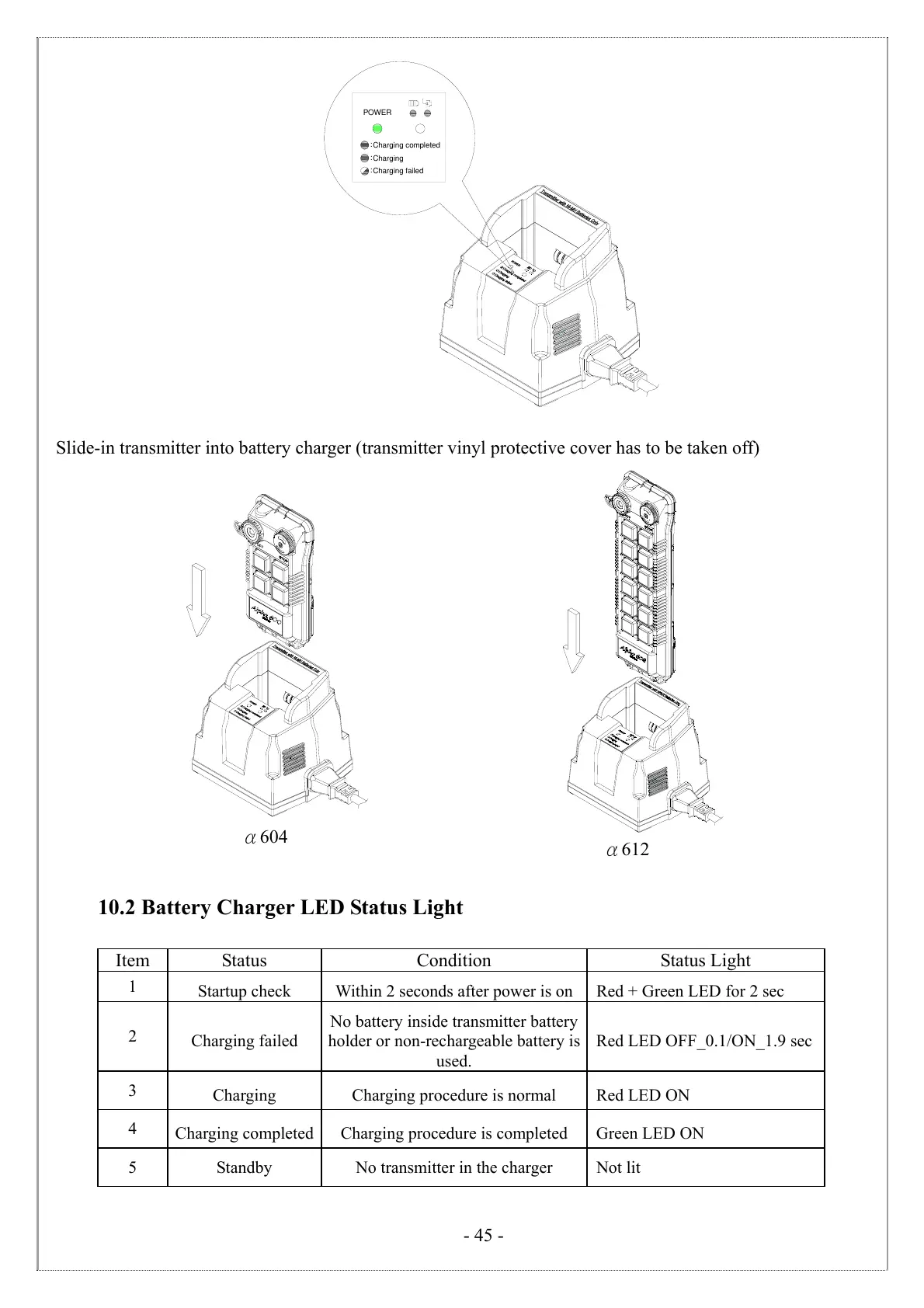

Slide-in transmitter into battery charger (transmitter vinyl protective cover has to be taken off)
α604
α612
10.2 Battery Charger LED Status Light
Item Status Condition Status Light
1
Startup check Within 2 seconds after power is on Red + Green LED for 2 sec
2
Charging failed
No battery inside transmitter battery
holder or non-rechargeable battery is
used.
Red LED OFF_0.1/ON_1.9 sec
3
Charging Charging procedure is normal Red LED ON
4
Charging completed Charging procedure is completed Green LED ON
5 Standby No transmitter in the charger Not lit
