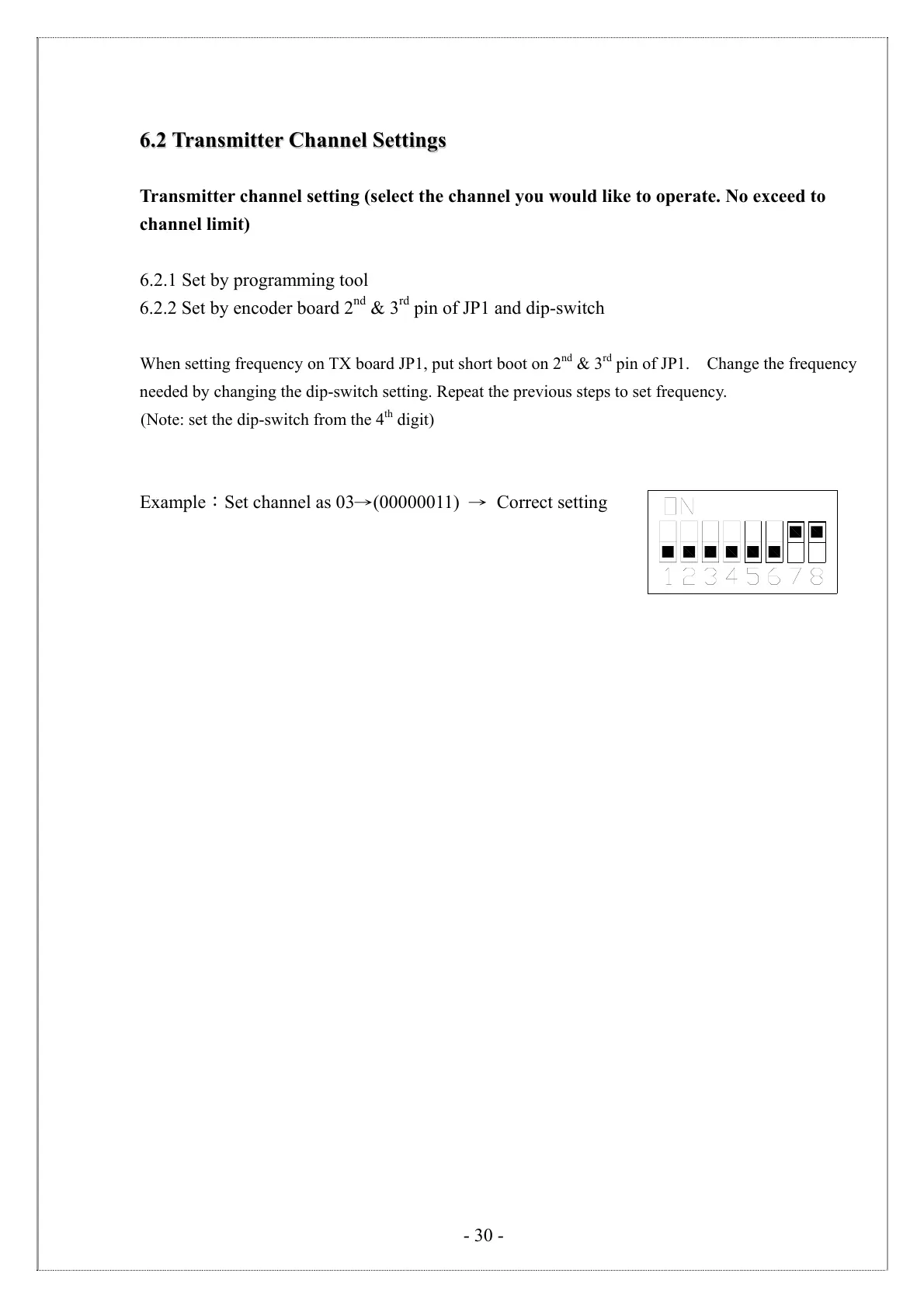

Transmitter channel setting (select the channel you would like to operate. No exceed to
channel limit)
6.2.1 Set by programming tool
6.2.2 Set by encoder board 2
nd
& 3
rd
pin of JP1 and dip-switch
When setting frequency on TX board JP1, put short boot on 2
nd
& 3
rd
pin of JP1. Change the frequency
needed by changing the dip-switch setting. Repeat the previous steps to set frequency.
(Note: set the dip-switch from the 4
th
digit)
Example：Set channel as 03→(00000011) → Correct setting
