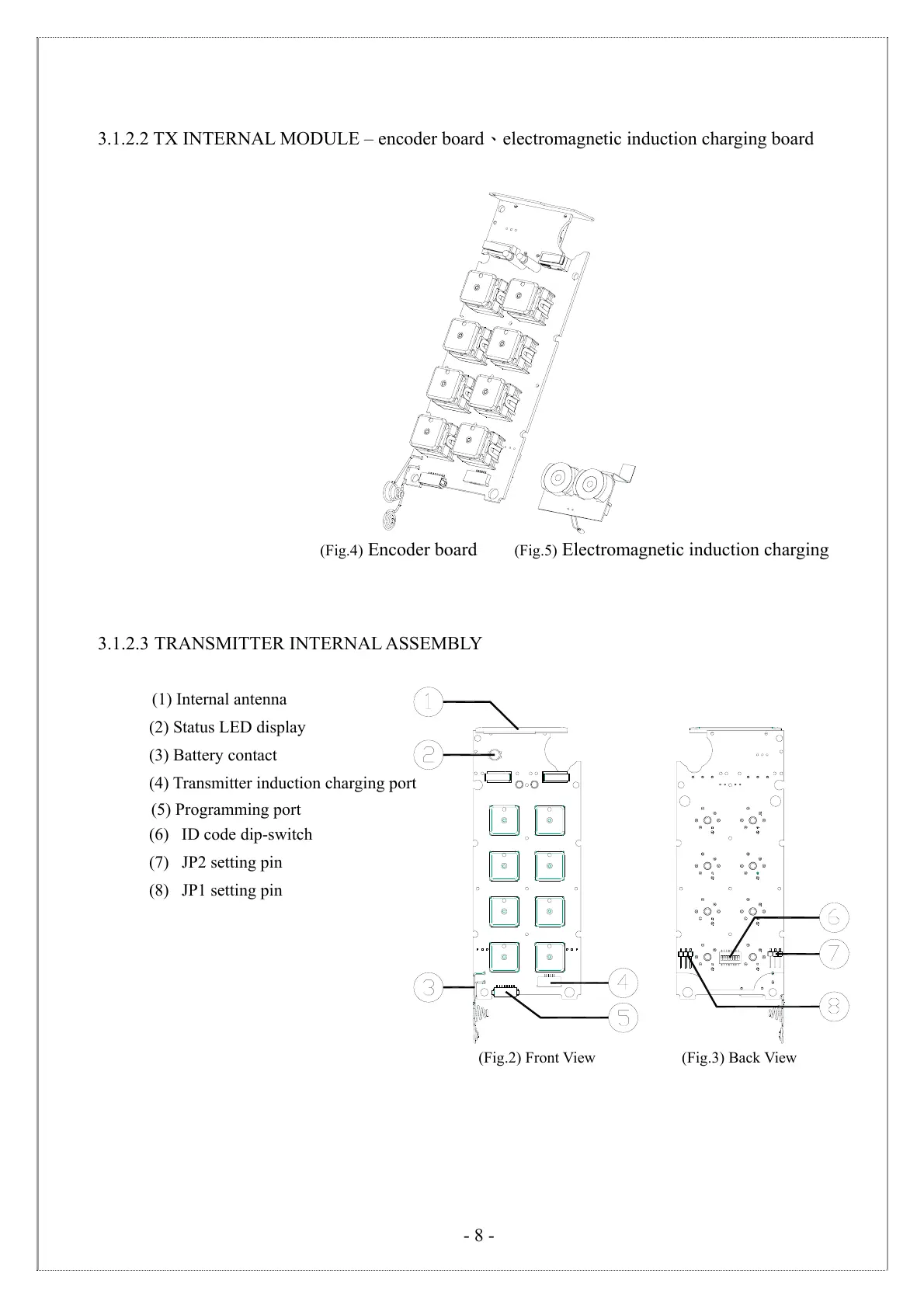

3.1.2.2 TX INTERNAL MODULE – encoder board、electromagnetic induction charging board
3.1.2.3 TRANSMITTER INTERNAL ASSEMBLY
(1) Internal antenna
(2) Status LED display
(3) Battery contact
(4) Transmitter induction charging port
(5) Programming port
(6) ID code dip-switch
(7) JP2 setting pin
(8) JP1 setting pin
(Fig.2) Front View (Fig.3) Back View
(Fig.4) Encoder board (Fig.5) Electromagnetic induction charging
