DESCRIPTION
- DVB-T2 and DVB-C2 HD receiver with HDMI output and PVR function with time shift: records TV
programmes and plays back video, audio and picture files.
- It supports high-efficiency video encoding (H.265 HEVC).
CONTROLS AND FUNCTIONS

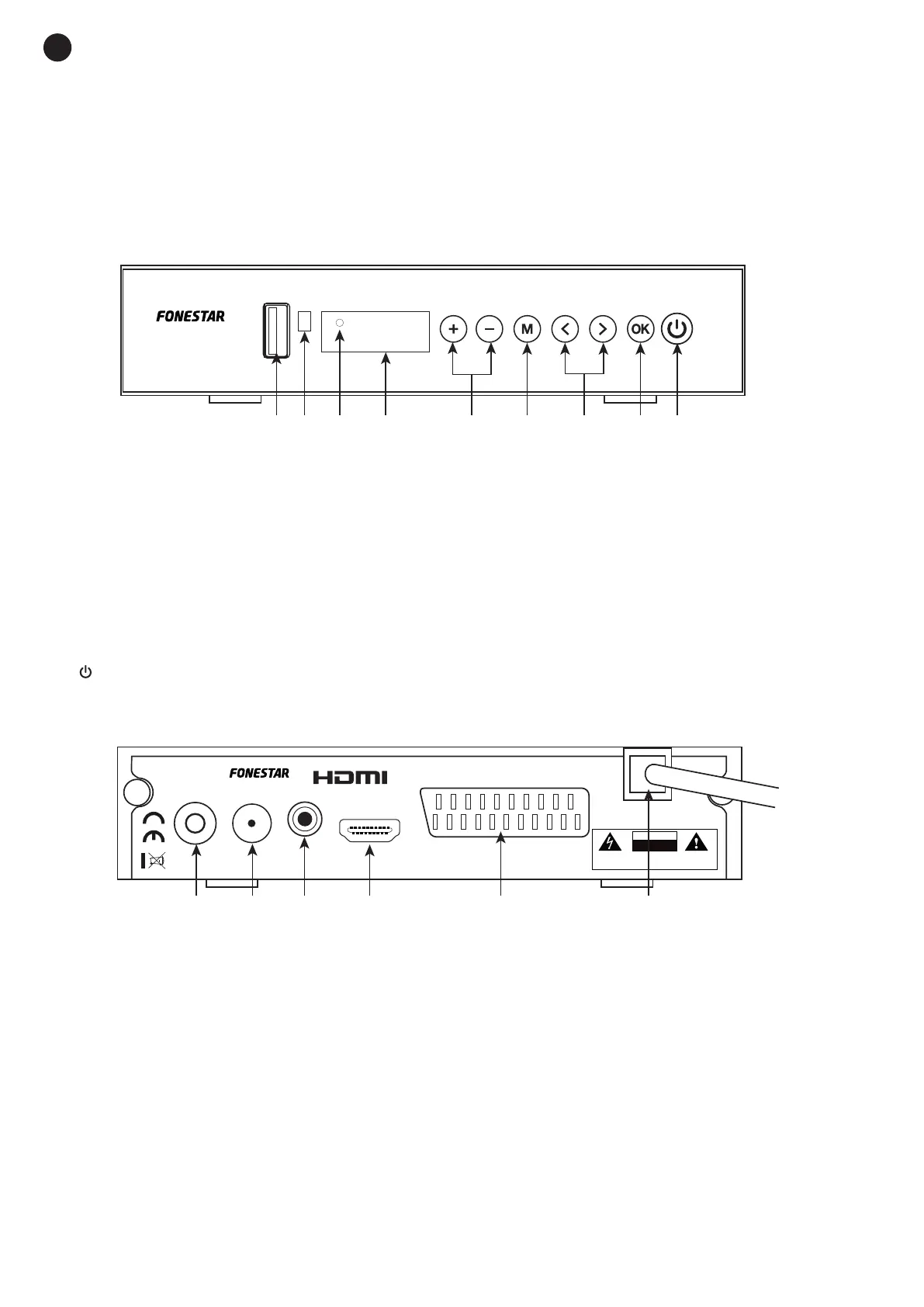

FRONT PANEL
RDT-762HD
HD DVB-T2 RECEIVER
0022
RDT-762HD
DVB-T2 AND DVB-C2 HD RECEIVER
RF IN RF OUT COAXIAL HDMI TV
100-240 V AC, 50/60 Hz
POWER CONSUPTION: 7.5 W MAX.
CAUTION:SHOCK HAZARD-DO NOT OPEN
RISK OF FIRE-REPLACE FUSE AS MARKED
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
1 32 4 5 6 87 9
1.- USB storage device connection port.
2.- IR receiver for remote control.
3.- LED power indicator. Green when on and red when off.
4.- Information display.
5.- +/-: buttons to change channels and navigate menu up/down.
6.- M: button to display the main menu on the screen. It also allows you to go back in the menu.
7.- </>: buttons for volume adjustment and left/right menu navigation.
8.- OK: button to validate the selected menu item.
9.-
: device on/off switch.
REAR PANEL
RDT-762HD
HD DVB-T2 RECEIVER
0022
RDT-762HD
DVB-T2 AND DVB-C2 HD RECEIVER
RF IN RF OUT COAXIAL HDMI TV
100-240 V AC, 50/60 Hz
POWER CONSUPTION: 7.5 W MAX.
CAUTION:SHOCK HAZARD-DO NOT OPEN
RISK OF FIRE-REPLACE FUSE AS MARKED
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
1 32 4 5 6
1.- RF IN: input from the tuner's antenna.
2.- RF OUT: output from the tuner's antenna to provide another antenna socket.
3.- COAXIAL: digital audio output.
4.- HDMI: high definition (HD) audio and video output to connect to a TV with a digital input.
5.- TV: standard definition (SD) audio and video output to connect to the TV input.
6.- Power supply input.
