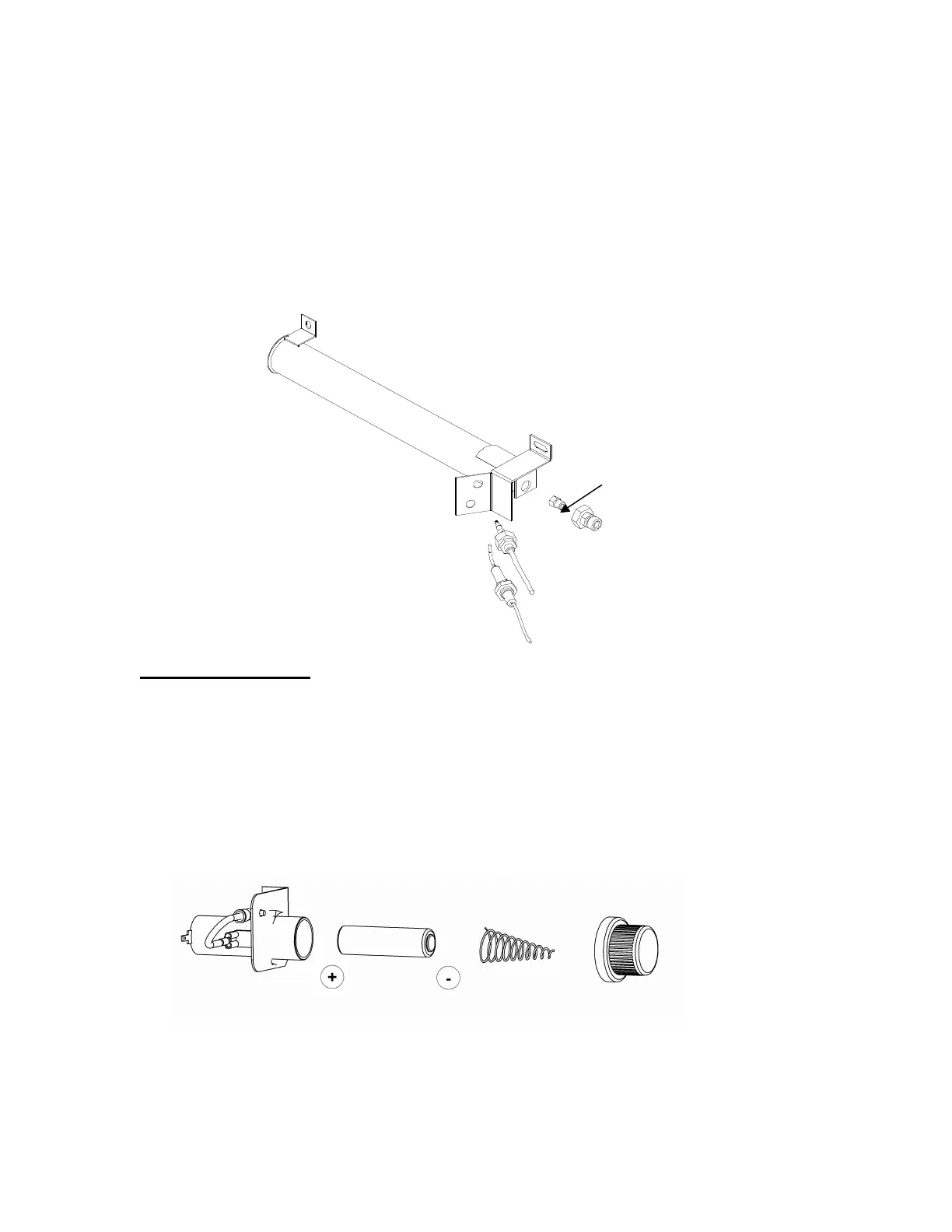

Removal of the oven burner orifice:
Unscrew the oven burner bracket from the back of the stove.
Rotate the burner 180 degrees to gain access to the orifice.
Remove the orifice from the orifice holder with a 7mm wrench.
Re-assemble the burner before use.
Changing the battery
The electronic ignition system is powered from a AA 1.5 Volt Battery. The Battery
holder is located at the back of the stove, under the door.
To change the battery, unscrew the black cap. Remember to respect the polarity.
Orifice
