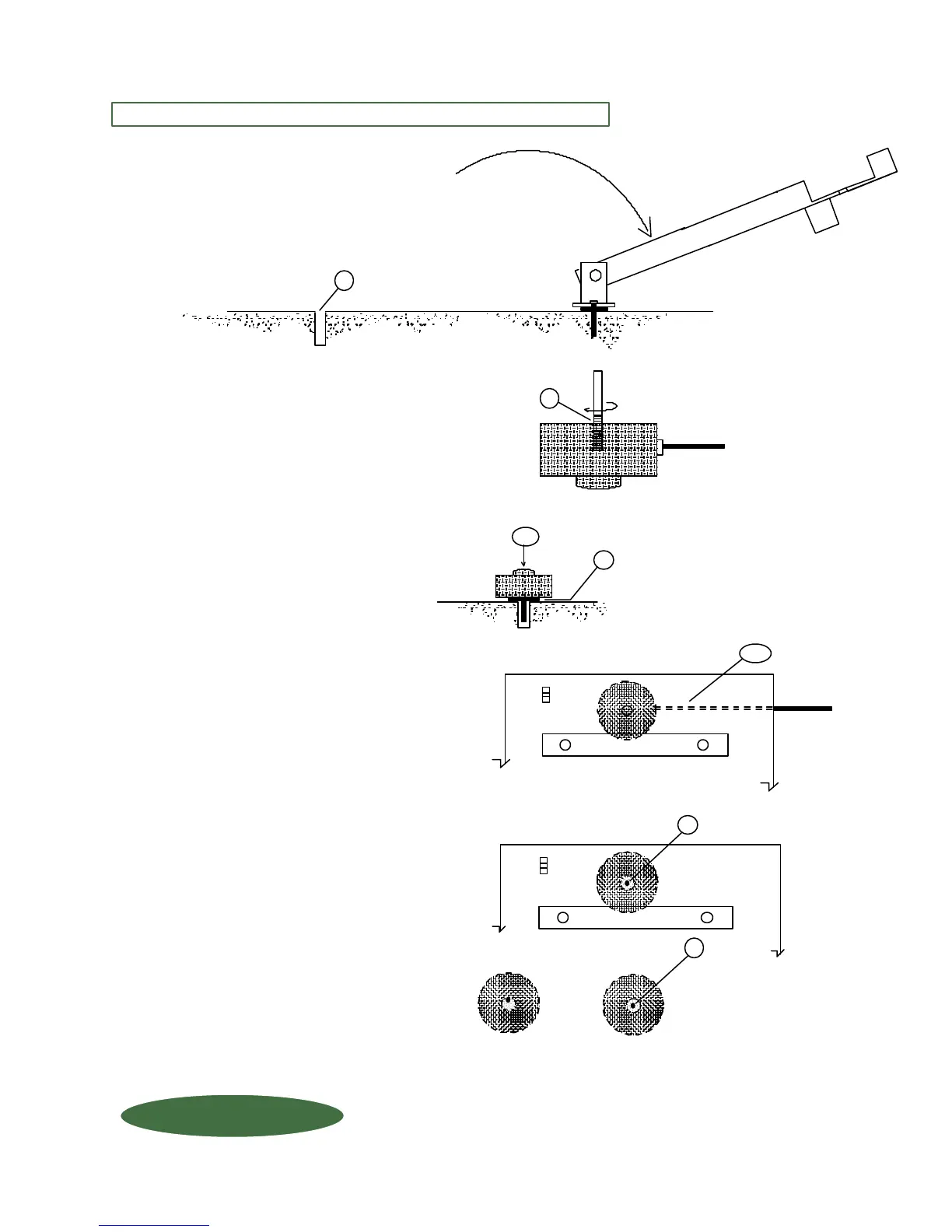

(D) Slide leveling washer(s) if needed onto stud.
(E) 1. Insert Load Cell Stud into hole
in the floor.
2. Be certain that the Load
Cell is seated "flush" on the floor.
Position Load Cell so that the cable
runs straight out to either side of the
Platform.
(B) After mark is established on the floor, pivot
Platform out of the way. Centerpunch the mark to
ensure accurate hole location. Drill a 5/16" hole
using an appropriate bit. Drill the hole approximately
1 inch deep.
Cable to exit straight
out on either side of
Platform.
Drill 5/16" diameter
hole, 1 inch deep.
(F) Pivot Platform back into place. Site through the
mounting hole on the platform to ensure that the
"BLACK DOT" on the Load Cell button is
centered in the hole on the platform.
Correct
Incorrect
B
(C) Install stud into threaded hole on
Load Cell. FINGER TIGHTEN ONLY !
STEP 4: ANCHORING THE LOAD CELL cont....
C
E1
D
E2
F
F
