1"
Clearance between
platform and wall
DO NOT anchor platform to floor until Step 3 !
(A) Place the platform on the floor with the backstop
side of the platform at the wall. (NOTE: Allow at
least 1" clearance between wall and platform)
CAUTION: For proper operation and to avoid possible damage to the scale or injury to yourself, you MUST install
these items in the following Step-by-Step manner. The Electronic CARBOY-SCALE should be used with carboys
which have outside diameters of 8" to 19", and gross weights from 200 to 400 lbs. Remove all items from box.
The load cell system is wired and calibrated at the factory.
(B) Remove stud from Load Cell and place Load Cell
underneath Platform so that the "BLACK DOT" on
Load Button is centered in the hole in the back
of the Platform.
CORRECT
CLOSE-UP DETAIL
PLATFORM
CENTER THE BLACK DOT
LINE OF SIGHT
INCORRECT

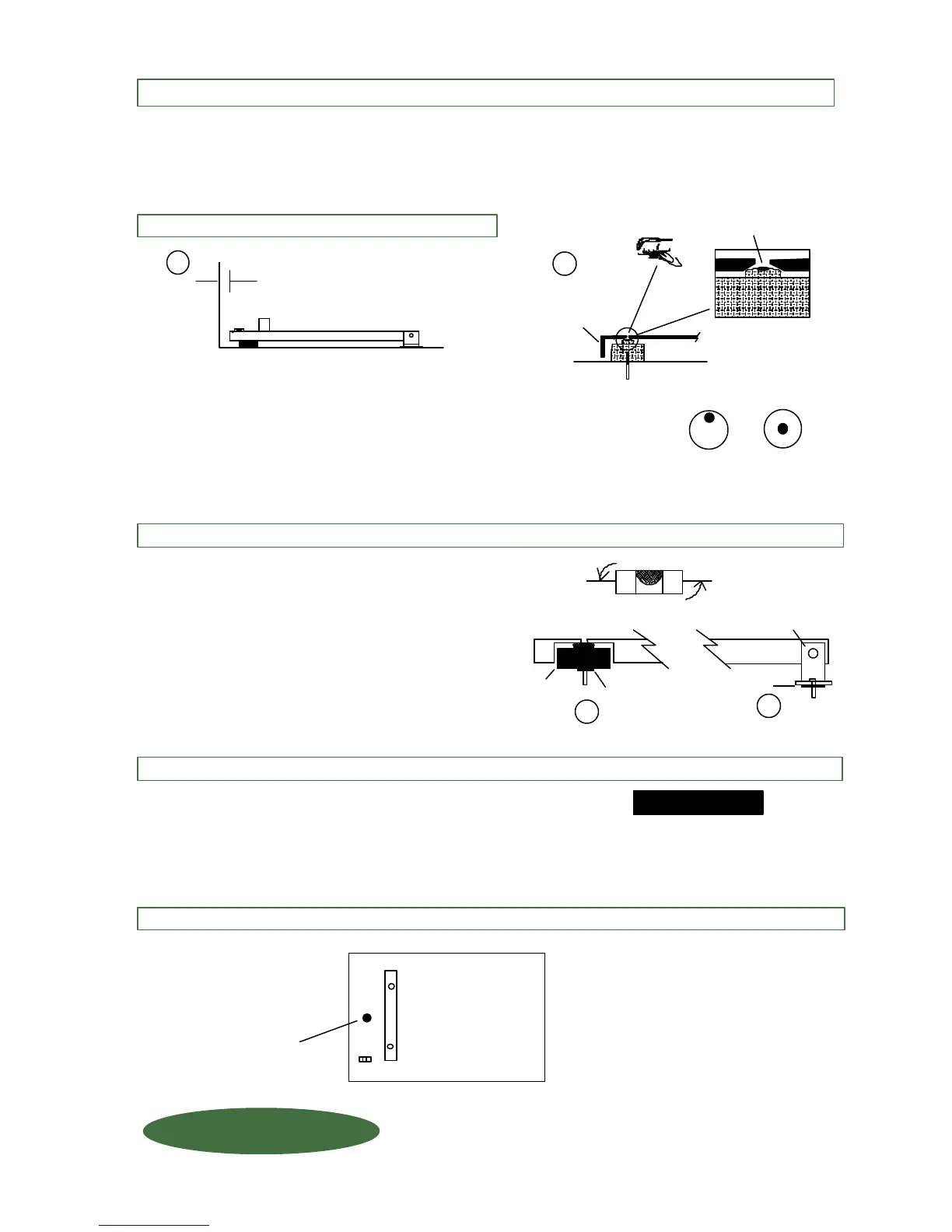

STEP 1: PLACE PLATFORM ON FLOOR
INSTALLATION NOTES:
STEP 2: LEVEL PLATFORM
Check the platform-mounted level to assure
that the scale is level from front to rear.
If the platform is not level, either:
(A) Raise rear of platform by placing shims
underneath the load cell, or
(B) Raise front by placing shims
underneath the hinge on the
anchor bolts (shims provided
with scale).
WASHERS
LOAD CELL
FRONT
MOUNTING FOOT
PLATFORM
REAR
A
WASHERS
Platform must not touch wall or scale will not function
properly. Mark mounting holes on the floor. Drill holes
with 5/16" bit and bolt scale to the floor using two (2) 1/4"
diameter anchor bolts. Make sure your anchor bolts
are properly sized and compatible with your floor material !!
To avoid injury caused by a tipping
carboy, DO NOT use until platform
is bolted to floor.
STEP 3: ANCHORING THE PLATFORM
CAUTION:
STEP 4: ANCHORING THE LOAD CELL
(A) Using Platform as a template, mark floor
to drill Load Cell anchoring hole.
Using this hole,
mark on the floor
for load cell anchoring.
LOAD CELL
ALLIGNMENT
B
B
A
. . .Step 4 continued on page 6
FORCE FLOW
FORCE FLOW
F
F
L
L
O
O
Q
Q
I
I
U
U
P
P
1150-D Burnett Ave, Concord, CA 94520 USA
1-800-893-6723 US & Canada, Fax: 925-686-6713
WWW.FORCEFLOW.COM / INFO@FORCEFLOW.COM
REF: T4\O&M\CARBWIZ\CARBO&M2.tcw (L04.pdf)
S.1.104
W.1.104
