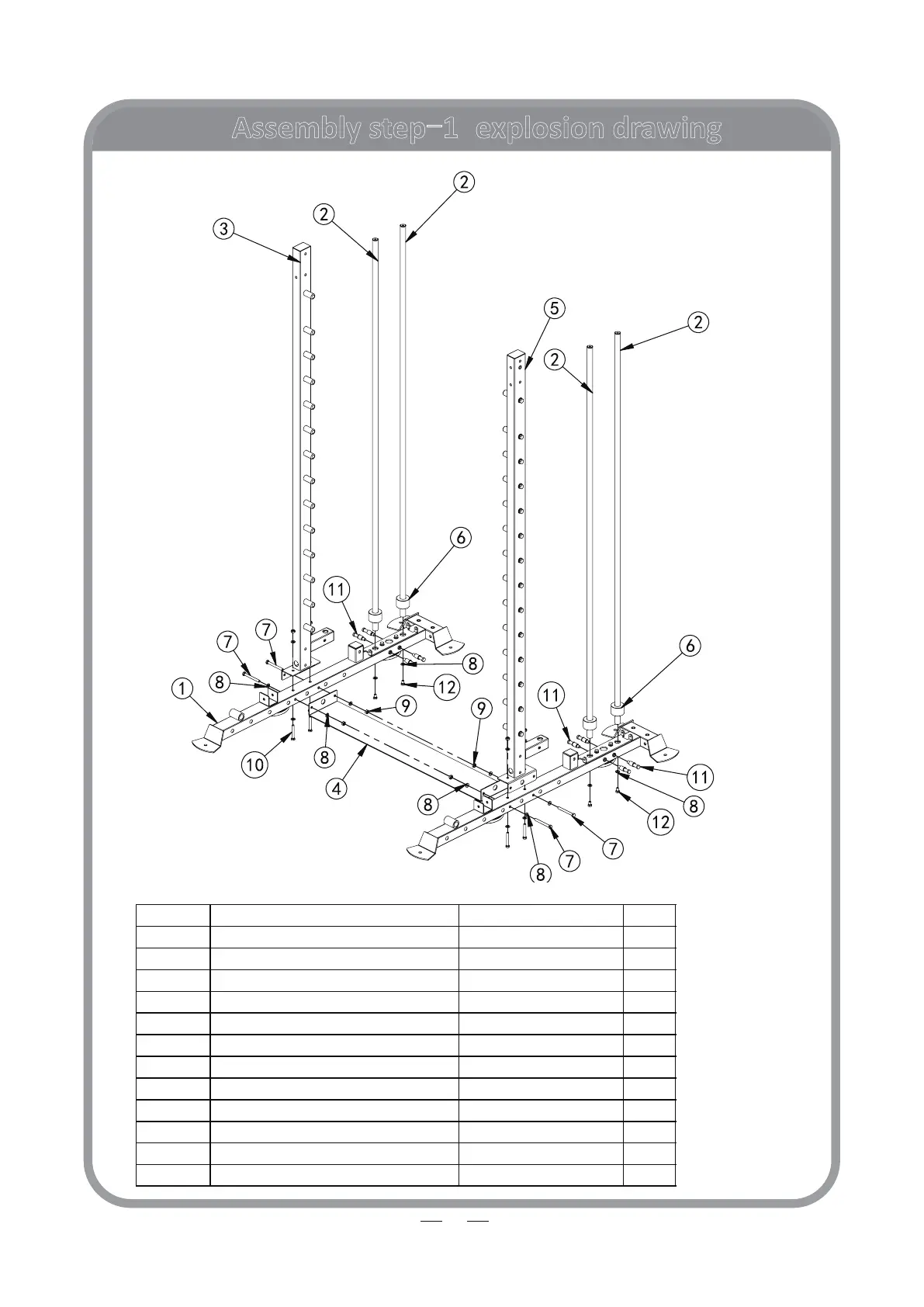

Assembly step-1 explosion drawing

No. Descripon Note Qty.

1 ground tube 2

2 front

guide rod

3 le stand tube 1

4 connect support tube 1

5 right stand tube 1

6 crush pad 4

7 hexagon bolt M10*95 4

8 washer Φ10 20

9 lock nut M10 8

10 hexagon bolt M10*70 4

11 hang sha 8

12 hexagon bolt M10*16 4

φ25*2050
