Force F-X15-V2 - Page 23

9 10 32 33 10
11
11
10
33 34
10 9
32
Front External Top Fixing Plate - Left
1
33
Front Internal Top Fixing Plate
T6
2
34
Front External Top Fixing Plate - Right
1
9
Hexagon Bolt
M16×110 6
10
Flat Washer φ17×φ40×3 12
11 Lock Nut
M16
6
Key No. Description Note
Quantity

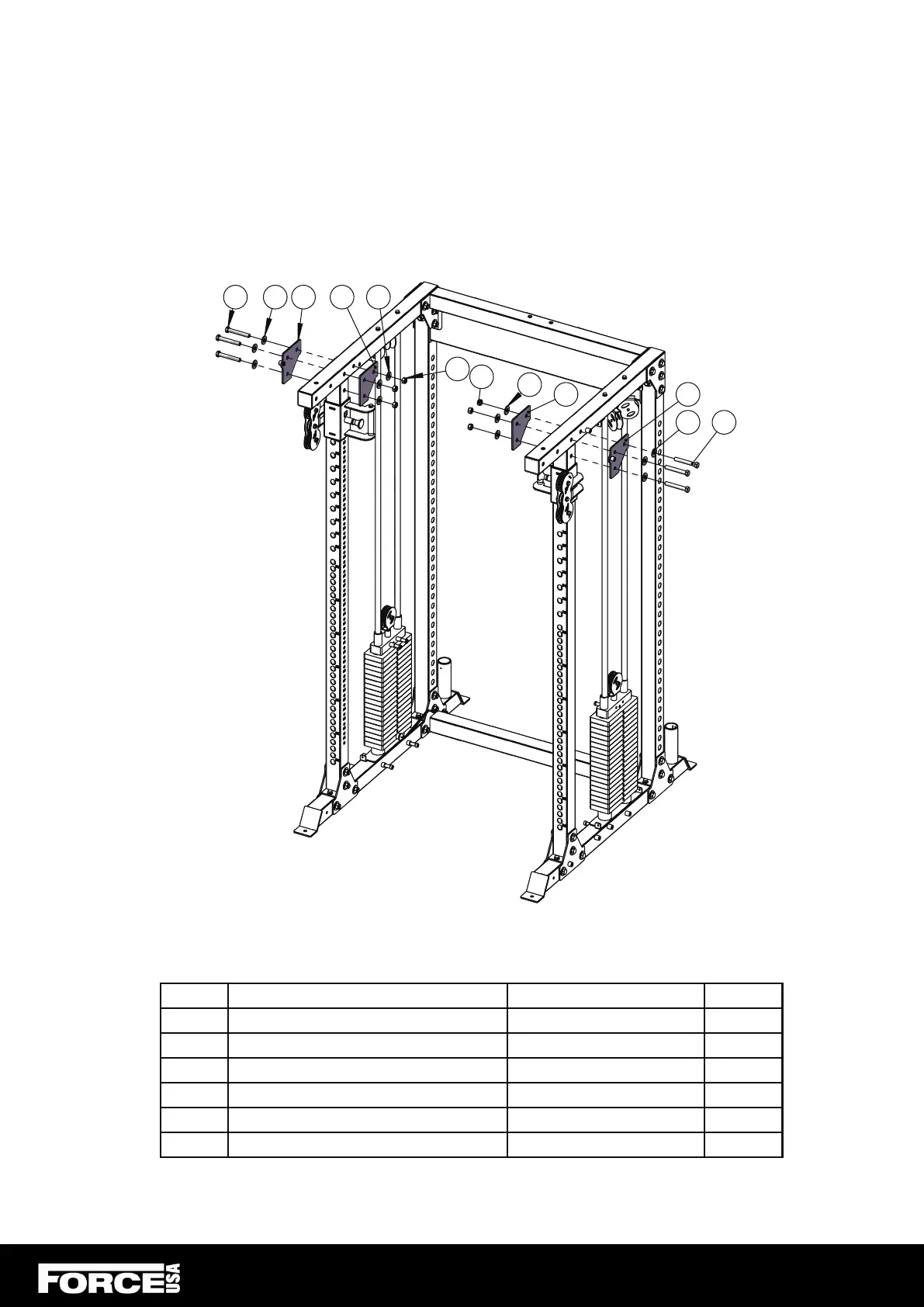

ASSEMBLY STEP 10
