Force F-X15-V2 - Page 41

96
97
45
99
98
96
94
95
96
94
Front Upper Beam
1
95
Face Hanging Ring
1
96
Round Tube Plug
φ32×1.5
6
45
Flat Washer
φ8
2
97
Lock Nut M8
2
98
Oval Round No Core Rivet
4×10
4
99
Scutcheon T1.5
1
Key No. Description Note
Quantity

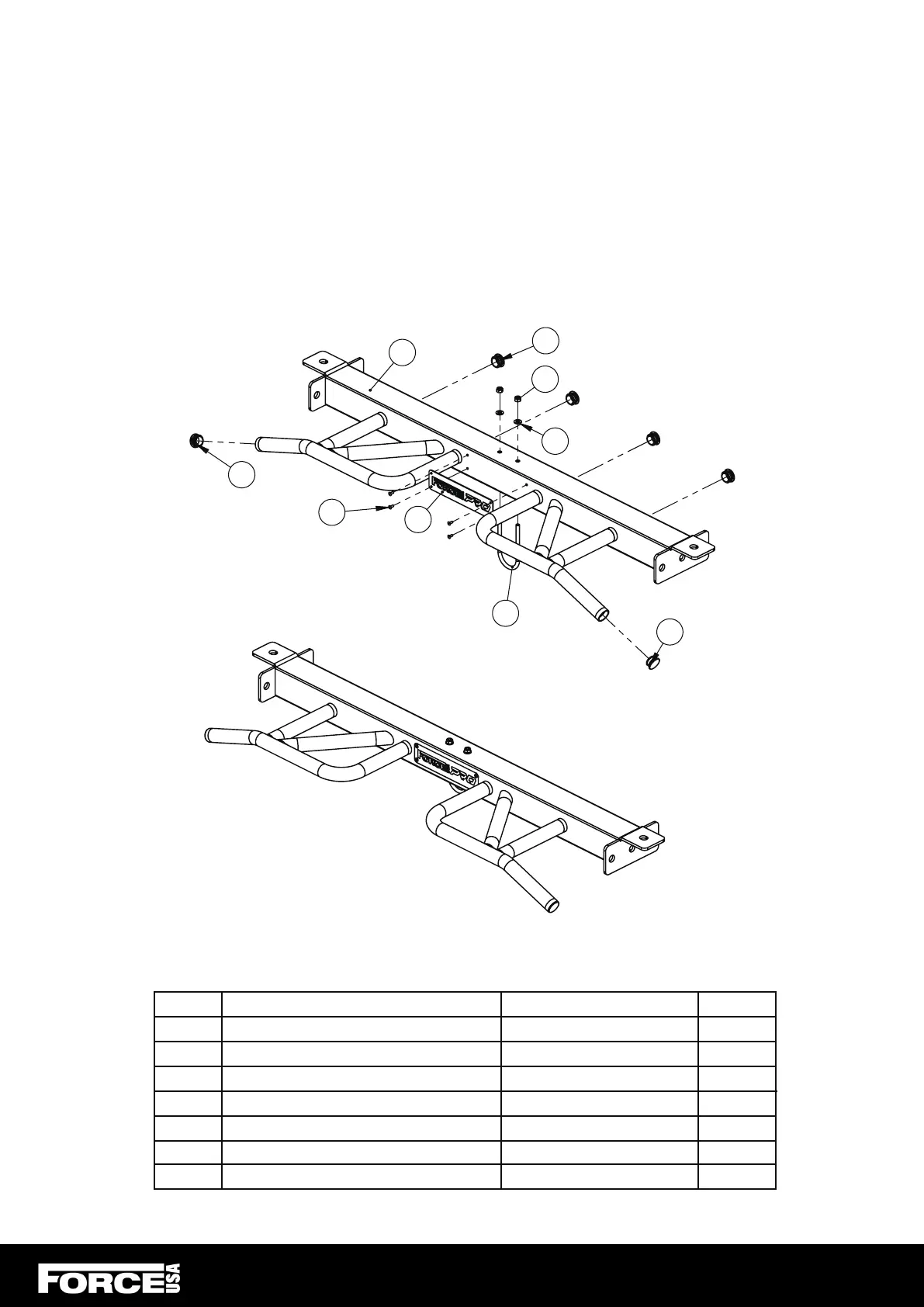

EXPLODED DIAGRAM
35.Chin Up Frame, 1 pc
