MANUAL DISENGAGEMENT FOR C-RAIL
Option 2 - Side Fixed

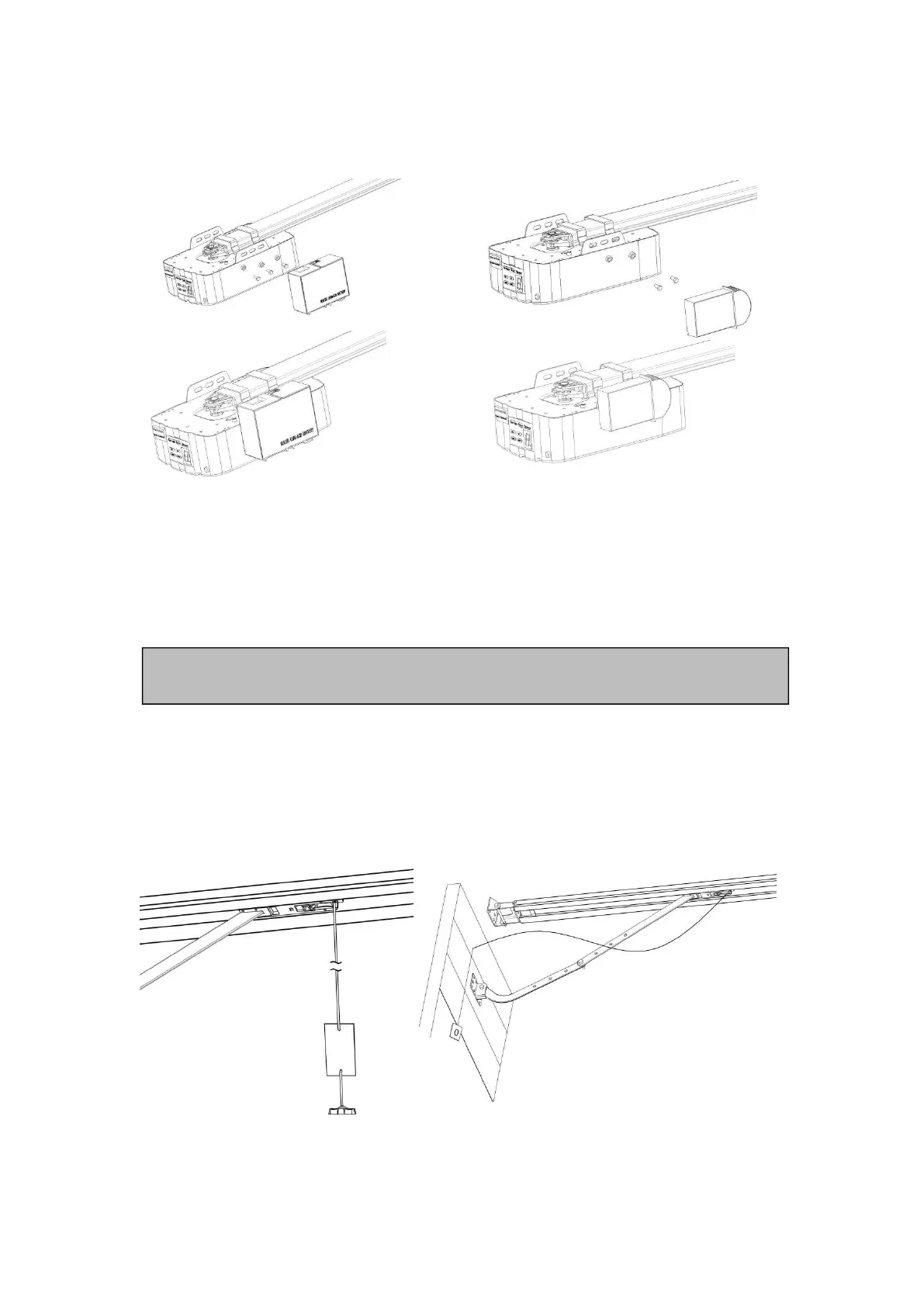

STEP1 (Fig.13)
Assemble the battery & battery bracket like the photo, fix by screws supplied.
STEP2 (Fig.14)
Join the battery to opener, find the Fig.14.
Figure 13 Figure 14
The opener is equipped with a manual release cord to disengage shuttle and move door by
hand while holding the handle down (Fig 15). Pull on the handle to disengage the shuttle. To
re-engage the door simply run opener in automatic mode or move door by hand until the trolley
engages in the chain shuttle.
In some situations that a pedestrian door is not in state, it is recommended that an external
disengagement device should be fitted (Fig 16).
Figure 15
Figure 16
