Force G12-V2 - Page 19

18
17
19
20
9
7
7
8
98
7 Flat Washer φ10 8
8 Lock Nut M10 4
9 Hexagon Bolt M10×75 4
17
Front Guide Tube - Right
□50*50*2 1
18
Front Guide Tube - Left
□50*50*2 1
19
Pulley Slider - Left
1
20
Pulley Slider - Right
1

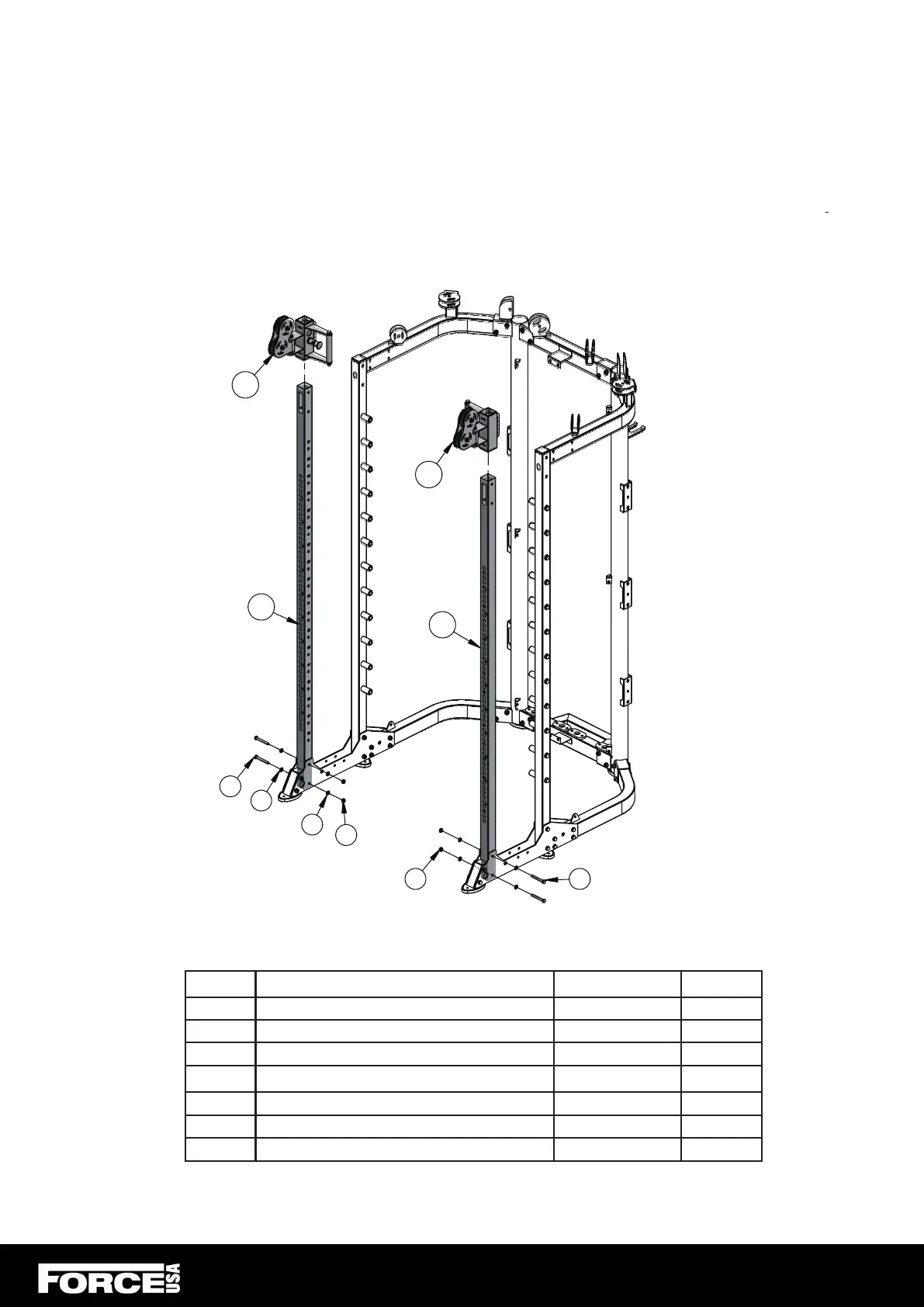

ASSEMBLY STEP 6
Key No.
Description
Note
Quantity
18
F-G12-V2
