Force G12-V2 User Manual

42
7
34
8
35
37
36
38
39
40
43
42
41
7
8
7 Flat Washer φ10 8
8 Lock Nut M10 4
34
Smith Bar Lower Connecting Sleeve
1
35
Large Rubber Bumper - Smith Bar
φ60×φ26×45 1
36
Small Rubber Bumper - Smith Bar
φ60×φ26×25 1
37
Safety Hook Right
1
38
Smith Bar Sliding Sleeve
1
39
Guide Rod - Smith Bar
φ25*1878 1
40
Smith Bar Guide Rod Fixing Sleeve
φ40*φ25.5*35 1
41
Smith Bar Upper Connecting Sleeve
1
42 Hexagon Bolt M10×90 4
43 Grub Screw M8*10 1

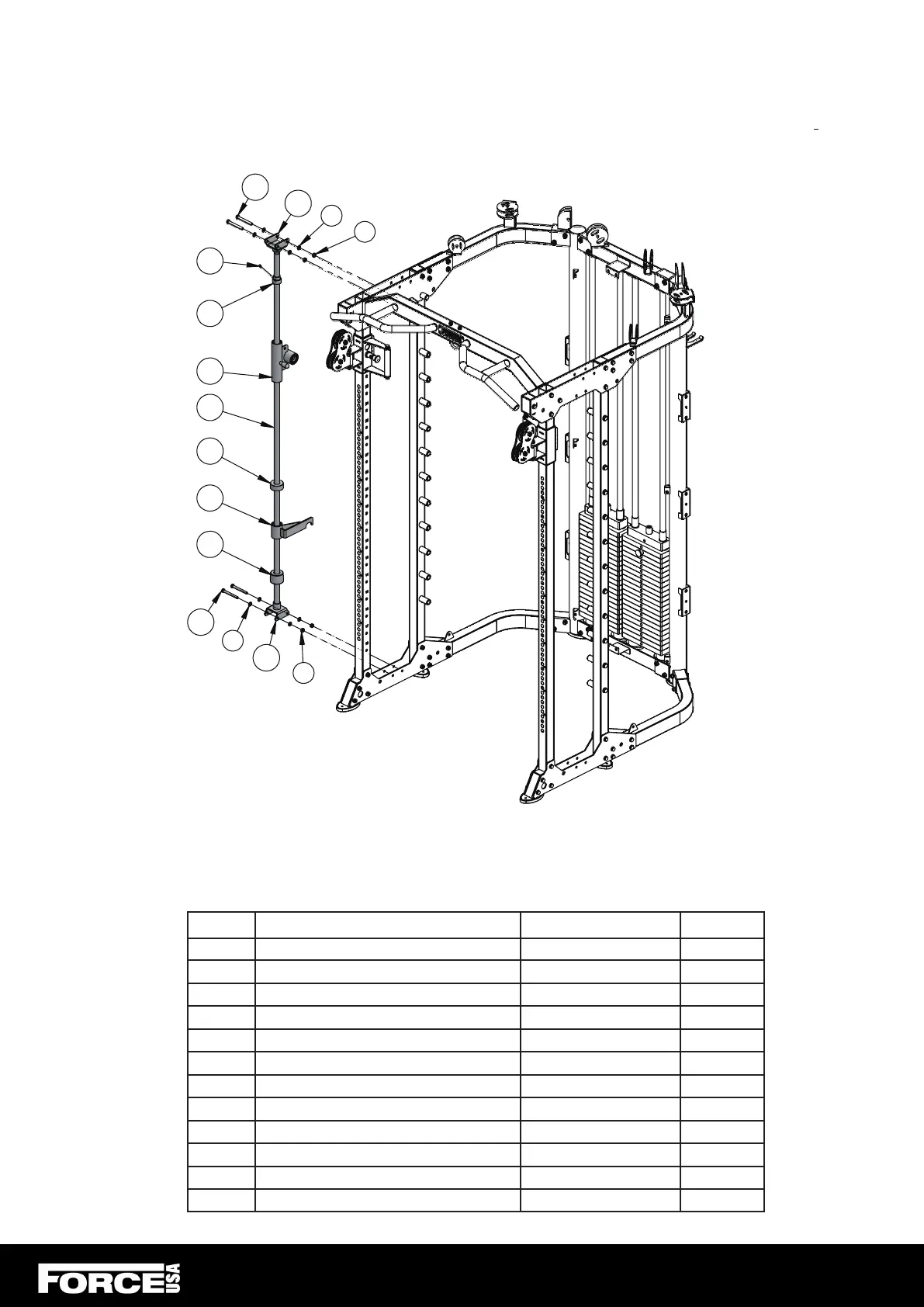

ASSEMBLY STEP 10
Key No.
Description Note Quantity
22
F-G12-V2

Force G12-V2 Specifications
