Force G12-V2 - Page 25

8
7
41
42
40
43
38
39
36
45
35
42
34
8
7 Flat Washer φ10 8
8 Lock Nut M10 4
34
Smith Bar Lower Connecting Sleeve
1
35
Large Rubber Bumper - Smith Bar
φ60×φ26×45 1
36
Small Rubber Bumper - Smith Bar
φ60×φ26×25 1
38
Smith Bar Sliding Sleeve
1
39
Guide Rod - Smith Bar
φ25*1878 1
40
Smith Bar Guide Rod Fixing Sleeve
φ40*φ25.5*35 1
41
Smith Bar Upper Connecting Sleeve
1
42 Hexagon Bolt M10×90 4
43 Grub Screw M8*10 1
45 Safety Hook Left 1

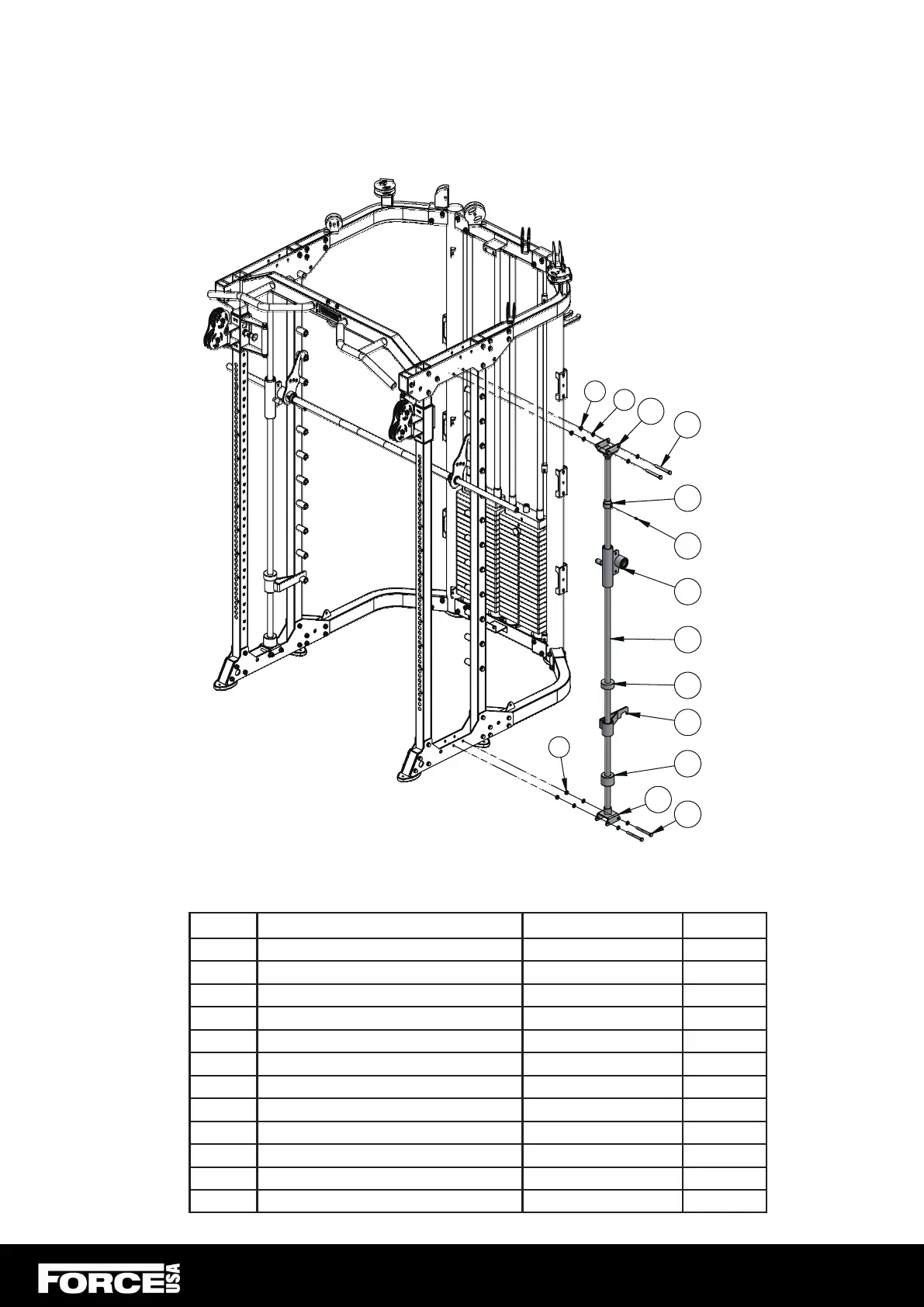

ASSEMBLY STEP 12
Key No.
Description Note Quantity
24
F-G12-V2
