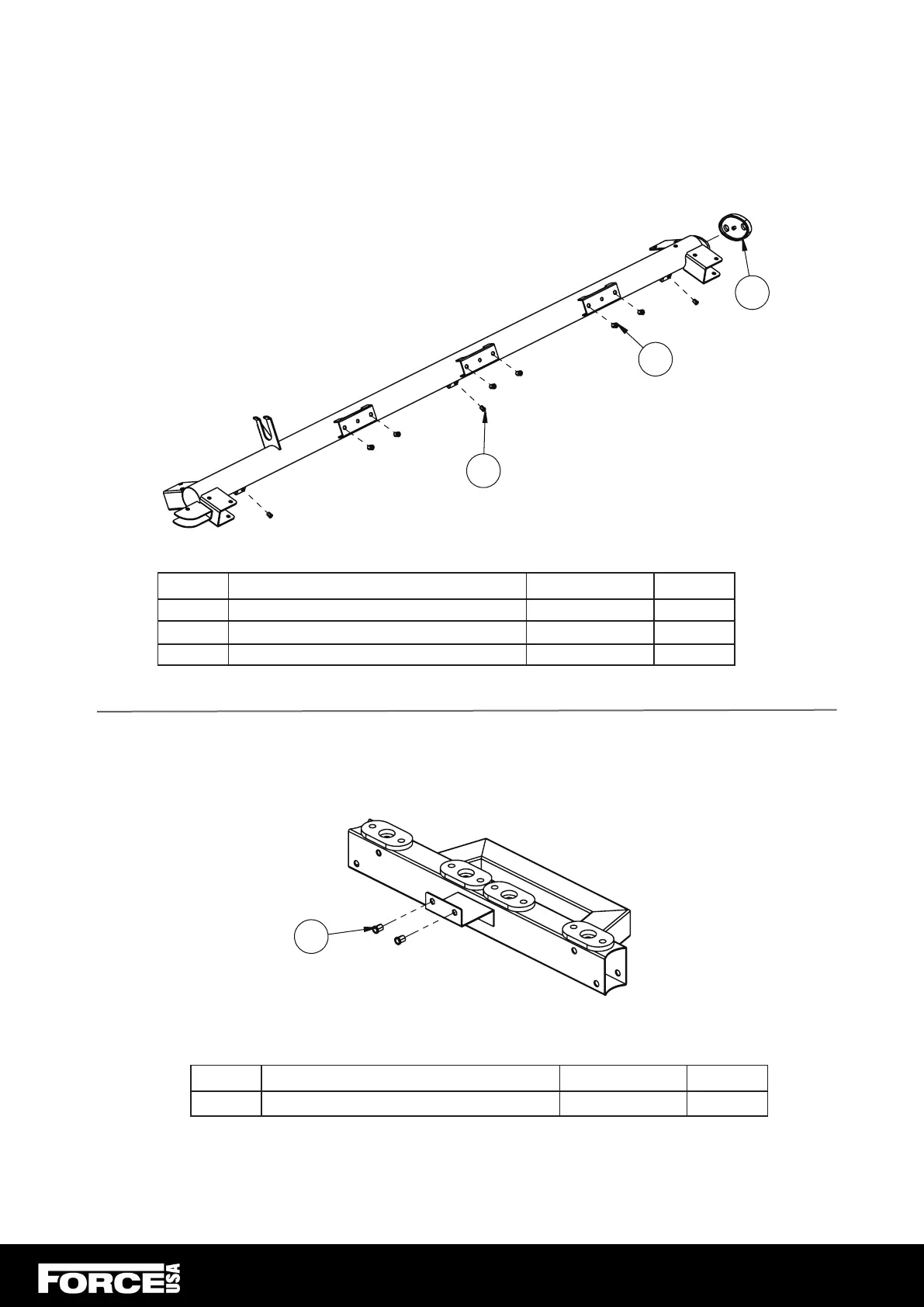

Force G12-V2 - Exploded Diagrams; Upright Frame Assembly; Mainframe Connecting Tube Assembly

102
103
104
Upright Frame Right, 1 pc
Upright Frame Left, 1 pc
104
Mainframe Connecting Tube, 1 pc
102
Oval Pad
131*80
1
103
Hexagon Rivet Nut
M8
6
104
Hexagon Rivet Nut
M6
3
104 Hexagon Rivet Nut
M6
2
EXPLODED DIAGRAM
Key No.
Description
Note
Quantity
Key No.
Description
Note
Quantity
