Force JX-1125N - Step 14: Backrest Pad and Arm Pads

Step 14 (Diagram 15)
A. Attach the Backrest Pad (#52) to the Power Tower Main Support (#23), Secure with two M8x75mm
Allen Bolts (#116) and Ø8mm Washers (#126).
B. Place two Arm Pads (#53) to Left & Right Dip Arm (#24 & #25), Secure each of them with two
M8x65mm Allen Bolts (#117) and Ø8mm Washers (#126).

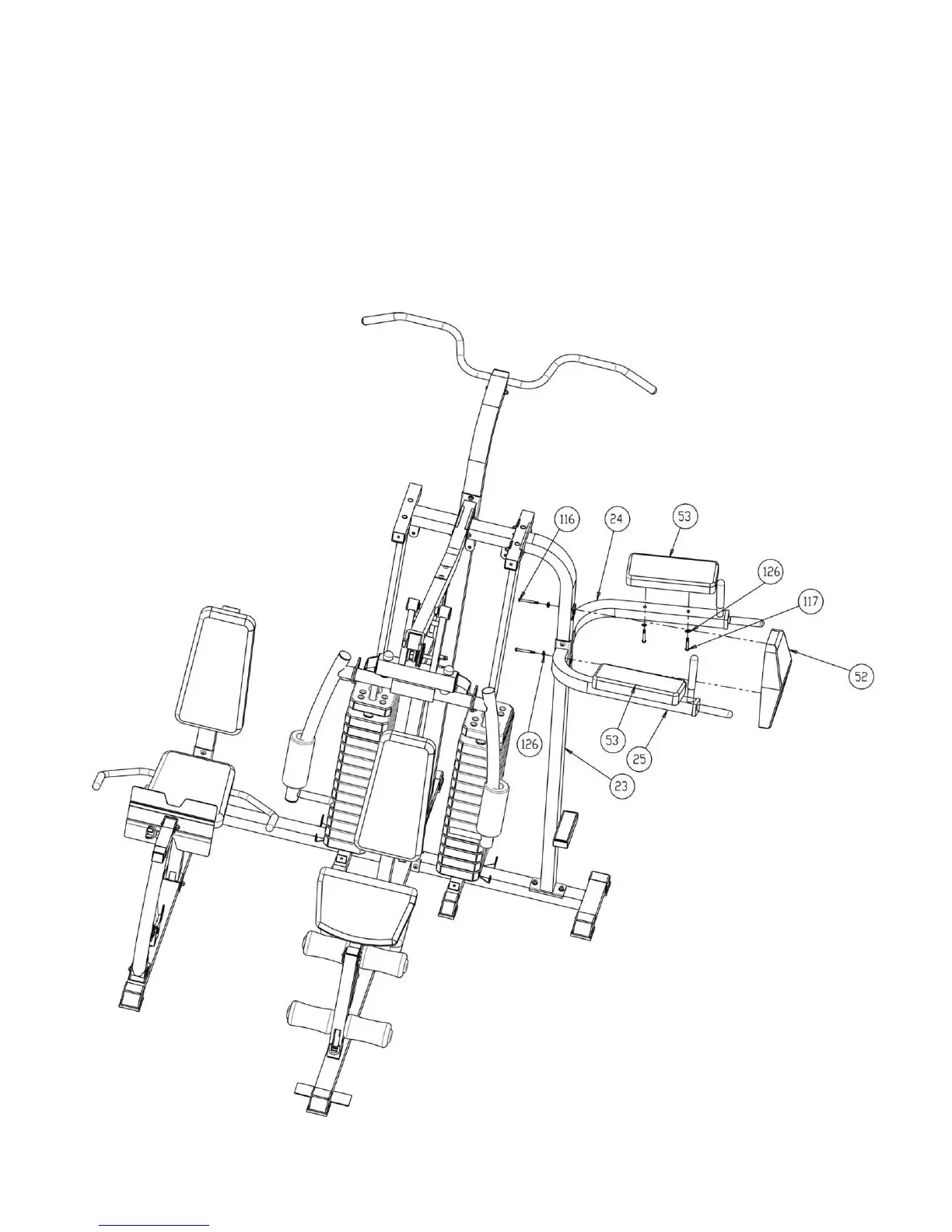

Diagram 15
21
