Next Generation Firewall Hardware Guide | Model 120W
Indicator lights

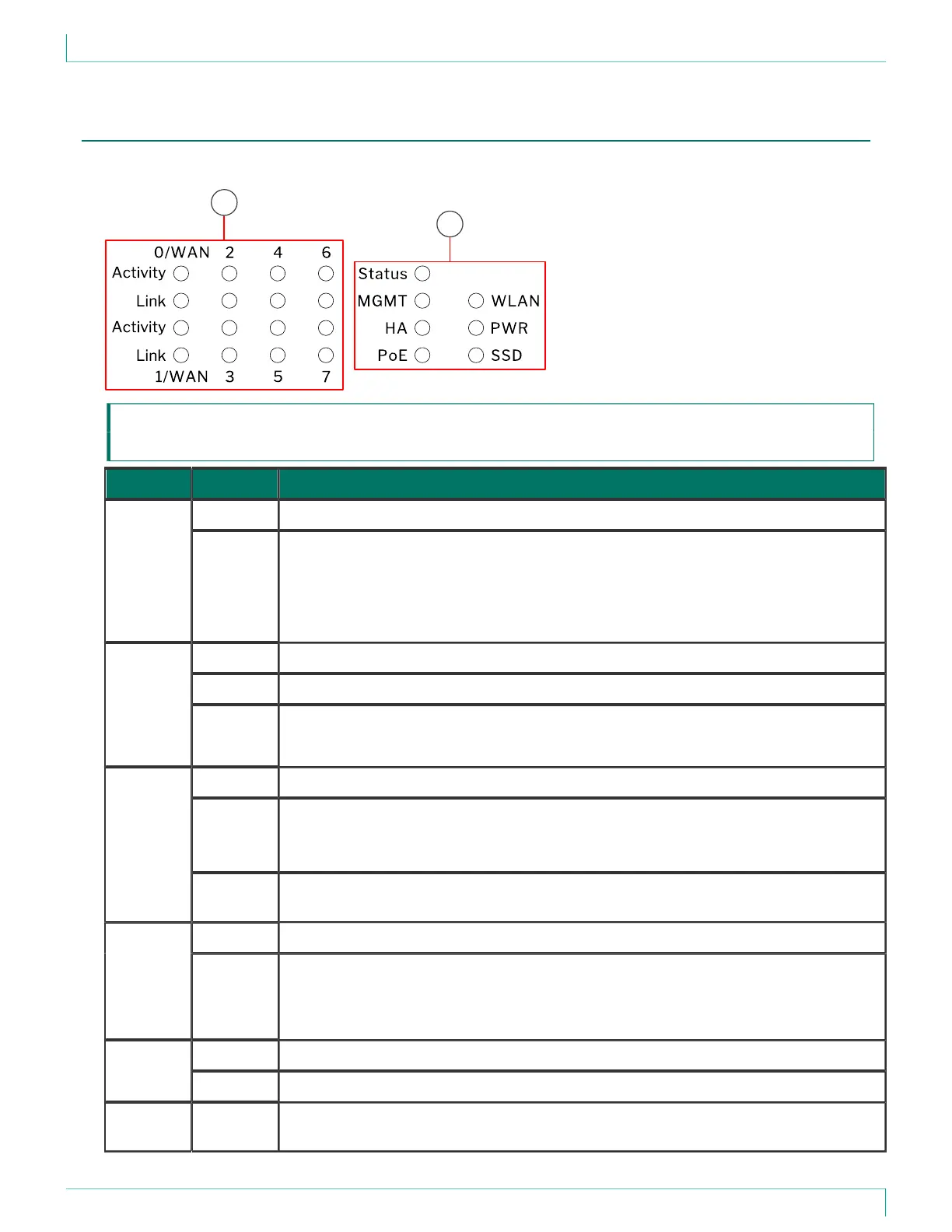

Indicator lights show the status of the appliance and any fixed Ethernet ports.
1
2
1 Ethernet port indicators
2 Status indicators
Indicator Color Description
Unlit No link.Activity/
link status
light for
each
Ethernet
port
(Activity)
Green Link OK. Flashes on activity.
Unlit
10 Mbps link.
Amber 100 Mbps link.
Link
speed
light for
each
Ethernet
port (Link)
Green 1 Gbps link.
Unlit
The initial configuration has not yet been generated.
Amber Flashes while initial contact is being established. Steady amber when initial contact
has been established, but the NGFW Engine is offline.
Alternates with green when the NGFW Engine is in the standby state.
Status
Green Flashes when initial contact is established, but a policy has not been installed. Steady
green when the NGFW Engine is online.
Unlit
The NGFW Engine has made initial contact but no policy is yet installed.
MGMT
Green Flashes when the NGFW Engine tries to make initial contact or when the NGFW
Engine is reconnecting to the Log Server. Steady green when initial contact with
the Management Server has been made, the management connection has been
established, and a policy has been installed.
Unlit
The NGFW Engine does not have a clustering configuration.
HA
Green The NGFW Engine has a clustering configuration.
PoE Unlit
There is no power feed to any of the Ethernet ports that support power over Ethernet
(PoE).
