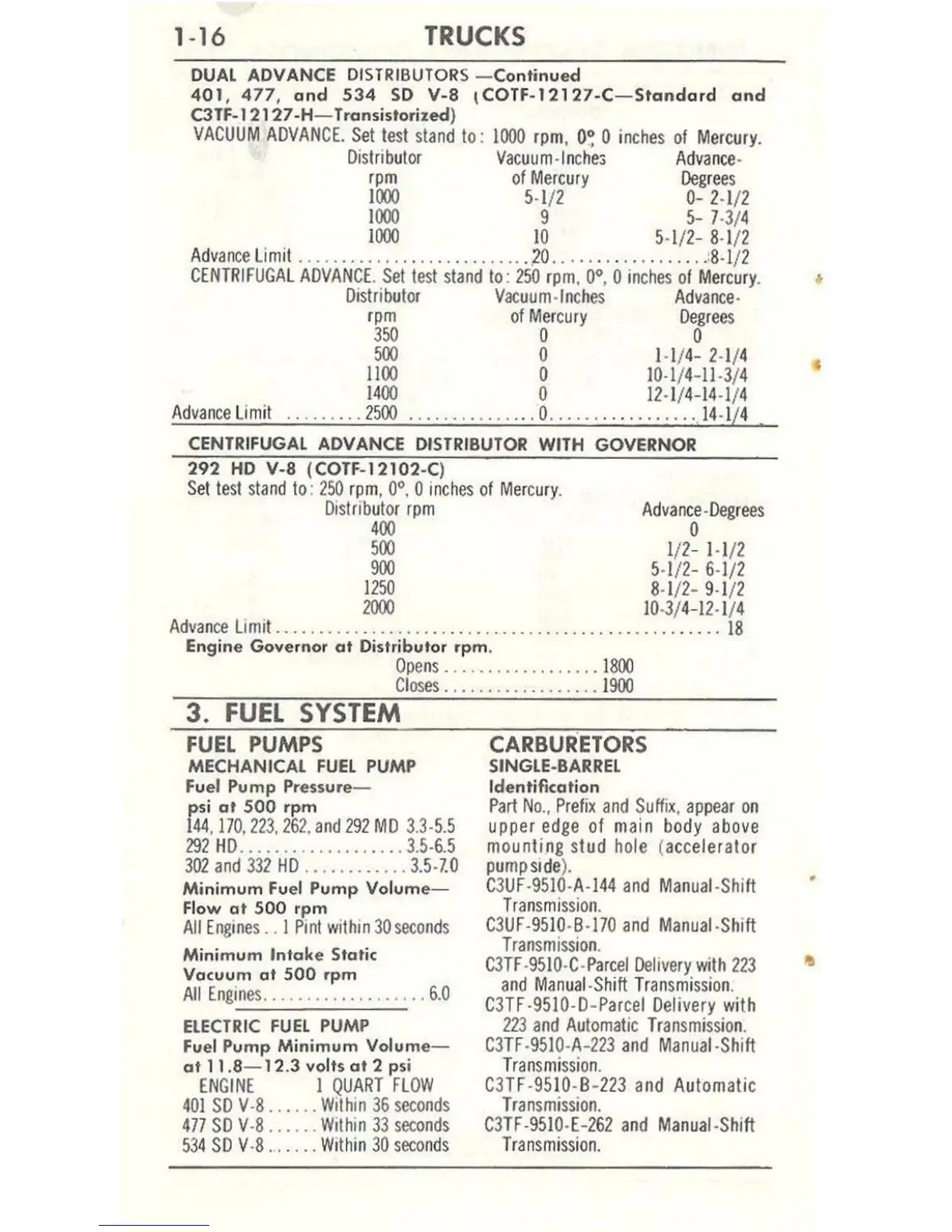

DUAL ADVANCE DI S TRIBUTOR S - Continued
401 , 477, a nd 534 SO v-a \C OT F-12 1 27-C-S t and a rd and
C3TF.12127 -H- Transistorized)
VACUUM ADVAN CE . Set test s tand to : 1000 rpm, O~ 0 in ches of Mercury.
Distrib u tor Vacuum-Inche:; Advance -
rpm of Mercury Deg r ee s
IIXX> 5·1 /2 0- 2·1/2
IIXX> 9 5- 7·3/4
I IXX> 10 5·1/ 2- 8·1 /2
Advance Limit .......... . .. ... . .. .... . ,0 ..... . . . ... . , .... . :8.1/2
CENTRIFUGAL ADVANCE , Set test stand to : 250 rpm , 0·, 0 inches of Mer cu ry .
Distrib u tor Vacuum - Inches Advance·
rpm of Mercury Degrees
350 0 0
500 0 1·1/4- 2·1/4
llOO 0 10 ·1/4- 11 ·3/4
1400 0 12 ·1/ 4-14 ·1/4
Advance Limit ... , .. , 2500 . . . . , .... . , 0 ....... .. " ...... .14.1 /4
CENTRIFUGAL ADVANCE DISTR I BUTOR WITH GOVERNOR
292 HD v-a (COTF-12 102-C)
Set te st sta nd to : 150 rpm, 0·. 0 inches of Mercury ,
Distrib u to r rpm Advance-Degrees
400 0
500 1/1- 1·1 /2
900 5·1 /2 - 6·1/1
IB 8 · ~9 · 1 /2
1000 10 ·3/ 4-12·1/4
Advance Limit .... , ..... . .... . ... , .... , ............ , . ...... , . . . .. 18
Engine Gove rnor at Distributor rpm .
Op e ns . ....... . .. , . , ... . 1 800
Cl oses ..... , , .......... . 1 900
3_ FUEL SYSTEM
FUEL PUMPS
MECHANICAL FUel PUMP
Fuel Pump Pressure-
psi at 500 rpm
144 , 170 , 113 , 16 1. and 292 MD 3. 3·5.5
191 HD ........... , ... . ... 3. 5·6.5
302 and 3 32 HD .. , .... .. ... 3.5 · 7.0
Mi nimum Fuel Pump Vol ume -
F lo w at 500 rpm
All Engine s .. I Pint within 30 seconds
Min i mum Intake Static
Vacuum at 500 rpm
All Engine s ........... .. .... , ,6.0
ELECTR IC FUel PUMP
fue l Pump Minim um Volume -
at 11 .8-12.3 vo lt s at 2 psi
ENGINE I QUART FLOW
401 SO V·8 .,., .. Wi thin 36 s econd s
477 SO V·8, , .... Wit hin 33 s econds
53 4 SO V·8 .. . ... Within 30 seco nd s
CARBURETORS
SINGLE-BARRel
Identification
Part N o., Prefix and Suff ix, appear on
upper edge of m ai n body ab ove
mounting stud hole ( ac ce l erato r
pu mpsi de ).
C3 UF · 9510 ·A· 144 and Manual · Shift
Transmission.
C3UF·951O · B·170 and Manual · Shift
Transm i ssio n.
C3TF · 951O ·C· Parc el Delive ry wi th 123
and Manual·Shift Tra nsm is sion.
C3 TF · 9510 ·D- Parce l Delivery with
22 3 and Automatic Tr ansm i ssio n.
C3TF · 9510·A - 213 and Manual · Shift
Tr ans mi ssio n.
C3TF·9510 -B- 213 and Automatic
Tr ansm i ssio n.
C3 TF · 951O·E - 262 and Manual · Shift
Tr ans mi ssio n.
•
•
