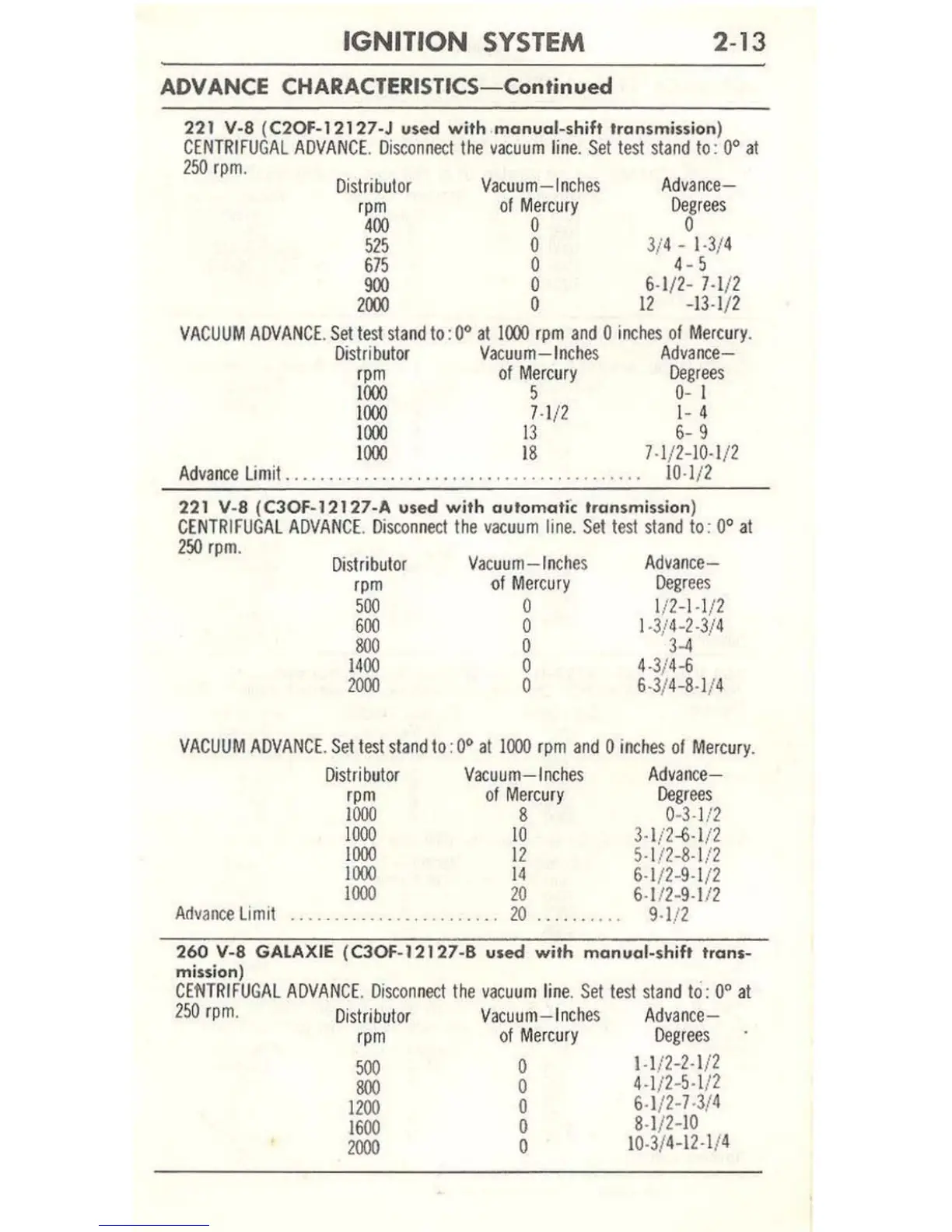

IGNITION SYSTEM
2-13
ADVANCE CH A RACTE R IS TI CS- Con tinued
221 V-B ( C20 F -1212 7-J u se d with .manual-shift tra ns m iss ion )
CENTR I FUGAL ADVANCE. Disconnecl Ihe vacuum line. Set tesl sland to: O· at
250 rpm.
Distributor
Vac u um-Inches
Advance-
rpm
of Mercury
Degrees
400 0
0
525 0
3/ 4 - 1 -3/ 4
675 0
4 - 5
900
0
6-1/2- 7-1/2
2000 0
12
-13-1 /2
VACUUM ADVANCE . Set test sta nd to : O· at 1000 r pm and 0 inches of Mercury.
Distrib u to r Vac u um-Inche s Advance-
r pm of Merc u ry Degrees
1 000 5 0- I
1 000 7-1 /2 1- 4
1 000 13 6- 9
1 000 18 7-1 / 2-10-1/2
Adva n ce Limil .. .. .. .. . .. .. .. .. . .. . .. . .. . . . .. . .. . 10 -1/2
221 v-a ( C30F - 12127- A used w ith automatic tr an smission)
CENTRIFUGAL ADVANCE. Discon necllhe vacuum line. Sel tesl sland 10 : O· at
250 rpm .
Dis t ributor
rpm
500
600
800
1400
2000
Vacuum- In ches
of Mercury
o
o
o
o
o
Advance-
Degrees
1/2-1- 1/2
1 -3/4-2 -3 /4
3-4
4 -3/ 4-6
6 -3/ 4-8-1 /4
VACUUM ADVANCE. Sellesl sland to : O· al 1000 rpm and 0 inches of Mercury.
Dist r ib u tor Vacuum-Inches
rp m of Me r cury
1000 8
1000 10
1000 12
1000 14
1000 20
Adv ance limit .. _. . . ............ 20 ........ ..
Adva n ce-
Degrees
0- 3-112
3- 1 /2 -6-1 /2
5- 1 /2-8- 1/2
6-1/2- 9-1 /2
6-112-9-1 /2
9-1/2
2 60 v-a GAlA X IE ( C30F -12 12 7-B u sed with manual- shift trans-
mi ssion)
CEtlTR I FUGAL ADVANCE. Disconnecllhe vacu um li ne . Sellesl stand 10 : O· al
250 rpm . D ist ri butor Vacu um - I nc h es Adva n ce-
r pm of Me rcu ry Degrees
500 0 1-1 /2 -2 -1/2
800 0 4-1 /2- 5-1 /2
12 00 0 6-1 /2-7·3/4
1600 0 8-1/2- 10
2000 0 10 -3/4- 1 2- 1/4
