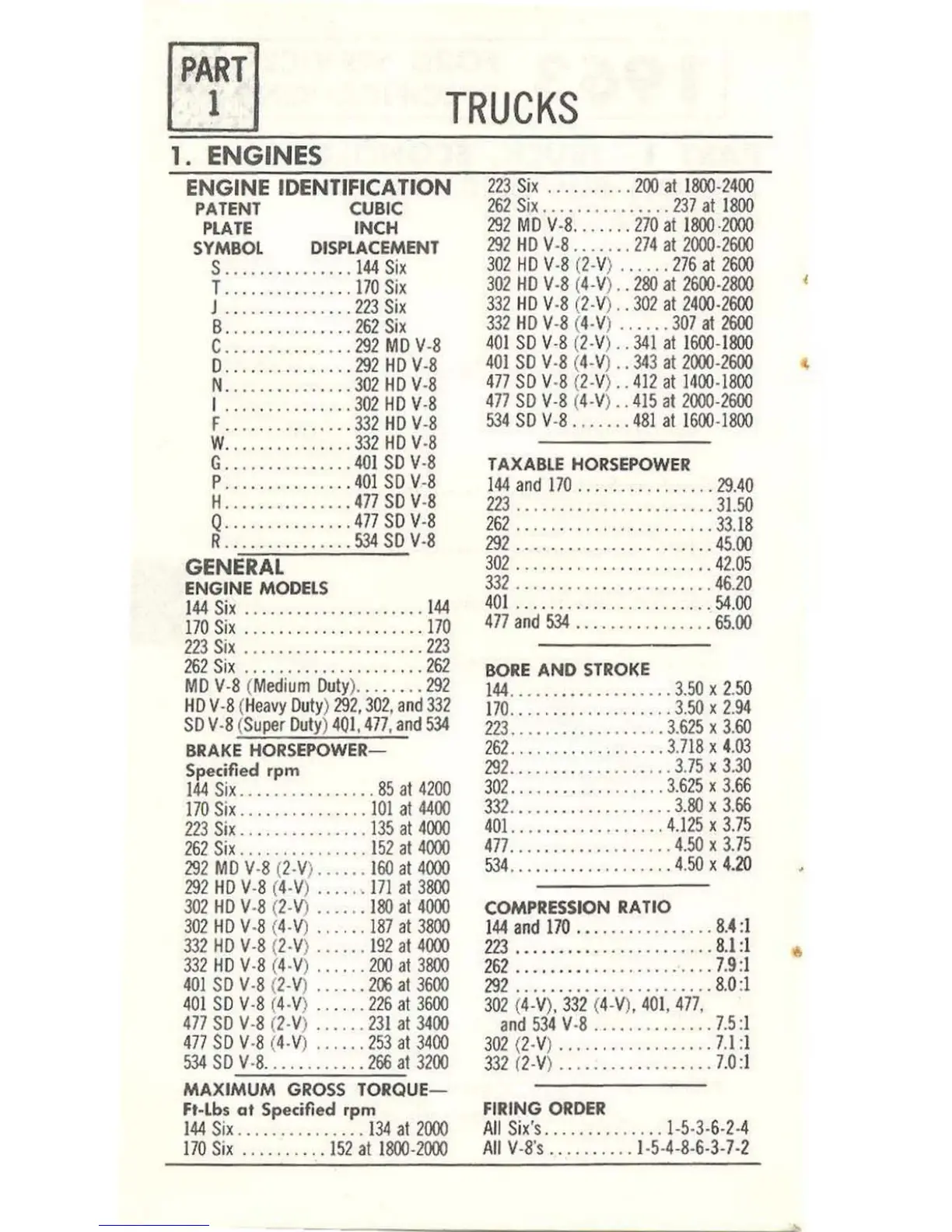

TRUCKS
1. ENGINES
ENGINE IDENTIFICA liON
PATENT CUBIC
PL ATE INCH
SYMBOL DISPLACEME NT
S .. .. .. .. ... . . . . 144 Six
T .. ... .. . . .. ... . 170 Six
J . . ...• •• .•.. . .. 223 Six
B .. ... . .. .. ... .. 262 Six
C .... ..•. .• ... .. 292 MD V-8
D .. . .. . ..... . ... 292 H DV-8
N . .... .. .... . . .. 302 HDV-8
1 .. • .• ••. .•• •. •• 30 2H DV -8
F .. .. .... . ... ... 332 HDV-8
W ... . .... .. . .... 332 HD V-8
G . ... ... ... . .... 40 1 SD V·8
P . ..... . .... . ... 401 SD V-8
H .... .. ... . ... .. 477 SD V -8
Q ..... .. .. .... .. 477 SD V-8
R . . . . . .. ... .. .. . 534 SD V·8
GENERAL
ENGINE MODELS
1 44 Six .. .. .. .. ... .. ...... .. 1 44
17 0 Six .. .. ........ .. ... .. .. 170
223 Six ............... . .. .. . 223
262 Six .. .. .. .. .. ..... .. .... 262
MD V·8 ( Med i um Du ly ) ........ 292
HD V -8 (H eavy Du ly ) 292 . 30 2, a nd 332
SD V-8 ( Super Dul y) 40 1. 4 77. a nd 534
BRAKE HORSEPOWER-
Sp e cifi ed rpm
144 Six ................ 85 al 4200
170 Six .. .. ........... 101 al 4400
223 Six ............... 135 al 4 000
262 Six ............... 15 2 al 4000
29 2 MD V -8 (2- V) ...... 160 al 4000
292 HD V-8 ( 4-V ) . ... .. 171 al 3800
302 HD V-8 (2 -V) ... . .. 1 80 al 4000
302 HD V-8 (4· V) .. . . . . 187 al 3800
332 HD V-8 (2·V) .. . ... 1 92 al 4000
33 2 HD V-8 (4-V) . . .... 200 al 3800
401 SO V·8 (2 -V ) ...... 2~ al 3600
401 SD V-8 (4-V) .. .. .. 226 al 3600
477 SD V-8 (2· V) ...... 23 1 al 3 400
477 SD V·8 (4- V) .. .. .. 253 al 3 400
534 SD V -8 . .. .. ....... 266 al 3 200
MAX I MUM GROSS TORQUE-
Ft-lbs at Sp e cifi ed rpm
144 Six ............... 1 34 al 2000
1 70 Six . .. . ... . . . 152 al 1800 - 2000
12 3 Si x .. ..... .. . 200 al 1 800-2 4 00
262 Six ............... 237 al 1 800
292 MD V-8 . .. . .. . 170 al 1 800·2000
292 HD V·8 ..... . . 274 al 2000 - 2600
302 HD V-8 (2-V) .. .... 2 76 al 2600
30 2 HD V-8 (4-V) . . 280 al 2600-2800
331 HD V-8 (2- V) . . 302 al 2400 · 2600
332 HD V-8 ( 4-V ) _ .. ... 307 al 2600
40 1 SD V-8 (2-V) .. 341 al 1 600 -1 800
401 SO V·8 (4.V) .. 34 3 al 2000 - 2600
477 SD V·8 (2-V) .. 412 al 14 00 -1 800
477 SD V-8 (4 -V) .. 415 al 2000 - 2600
53 4 SO V-8 .... . .. 4 81 al 1 600 - 1800
TAXABLE HORSEPOWER
1 44 an d 1 70 .... .. .. . ... .... 29.40
223 ....... . ...... . ........ 31.50
262 ... . .. ... . ..... .. .... . . 33.18
292 ....... .. .... .. _ ....... 45 . 00
302 ... .... ....... .. .... ... 42. 05
332 ....................... 46.20
401 . . . . . . .... . ..... . . ... . . 54.00
477 and 534 .. . .... . .. . . .... 65.00
BORE AND STROKE
144 ..... ... ...... . .... 3 .5 0 x 2.50
1 70 . . . . . ... .. . ... .. ... 3. 50 x 2.94
22 3 ....... . .......... 3.615 x 3. 60
162 ...... . ....... .. .. 3 .7 18 x 4 .03
292 ..... .. ............ 3 .75 x 3.30
302 .. .... . .. . . . ... . .. 3.625 x 3. 66
332 . . ... ... . .......... 3.80 x 3.66
40 1. .... .. .. .. . _ .. ... 4 .125 x 3.75
477 ... .... . .. ......... 4.50 x 3. 75
534 ....... .. ..... . . . . . 4. 50 x 4_20
COMPRESSION RATIO
144 a nd 1 70 ........ ........ 8.4: 1
2
23 . ....... . ....... " . .. .. 8 .1: 1
262 .. ... .... ......... . . . . . 7. 9:1
292 .. .... .. .. ............. 8. 0:1
301 (4-V). 332 (4- V) . 40 1, 477 .
a
nd 534 V·8 ............. . 7.5 :1
302 (2-V) . ... . . . ... . . . .. . .. 7.1:1
332 (2-V) .................. 7.0 :1
FIRING ORDER
All Si x·s ...... . ..... . . 1-5- 3- 6-2 -4
All V-8·s .. ... . .... 1-5- 4-8- 6 -3 -7-2
,
