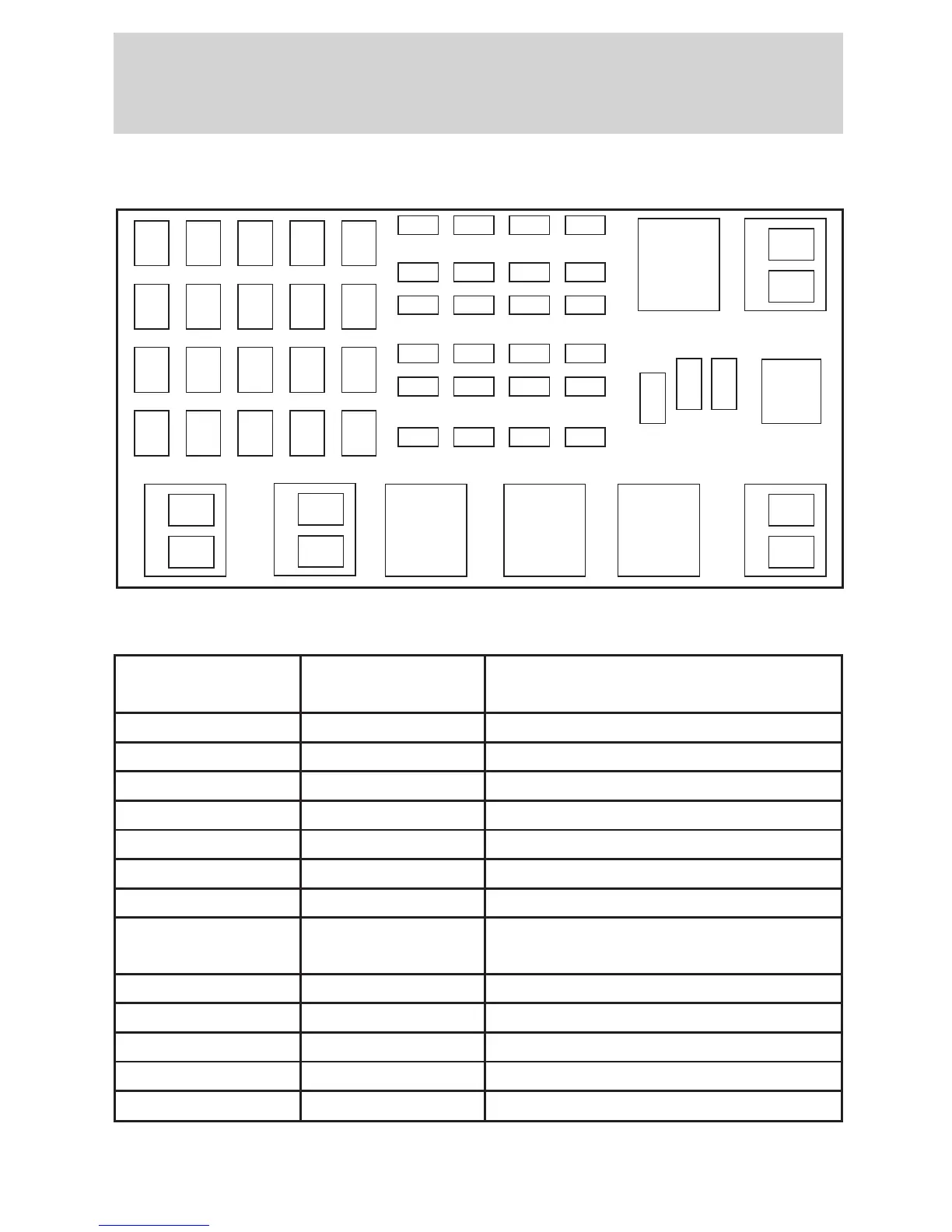

Ford 2001 Ranger - 2.3 L Engine; High-Current Fuses

2.3L engine (if equipped)
The high-current fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box
Description
1 50A** I/P Fuse Panel
2 — Not Used
3 — Not Used
4 — Not Used
5 — Not Used
6 50A** ABS Pump Motor
7 30A* Powertrain Control Module (PCM)
8 20A* Power Door Locks and Remote
Entry
9 — Not Used
10 — Not Used
11 50A** Starter Relay, Ignition Switch
12 20A* Power Windows
13 — Not Used
12345
21 22 23 24
25 26 27 28
29 30 31 32
33 34 35 36
37 38 39 40
41 42 43 44
678910
55
4948
54
5352
51
56
56 B
56 A
50
50 B
50 A
4745
45 B
45 A
46
46 B
46 A
11 12 13 14 15
16 17 18 19 20
