The pull fuse is located under the instrument panel and is visible from
the exterior of the fuse panel cover.
The fuse holder is designed to allow you to pull the fuse (#6) from the
fuse panel circuit without having to completely remove it from the fuse
panel. The fuse and fuse holder will remain in the fuse panel.
If the fuse (#6) must be replaced, the fuse and fuse holder can be
removed by pulling it completely out from the fuse panel cover.
With the fuse (#6) removed, the following systems will not be functional:
• radio
• power sliding door(s) – (if equipped)
• keyless entry system– (if equipped)
When the pull fuse is reinstalled, the following features will need to be
reset.
• radio pre-sets
• power sliding door(s) – (if equipped)
Please refer to the Using Your Audio System and Power Sliding Door
sections in the Controls and Features chapter for instructions to reset
these features.

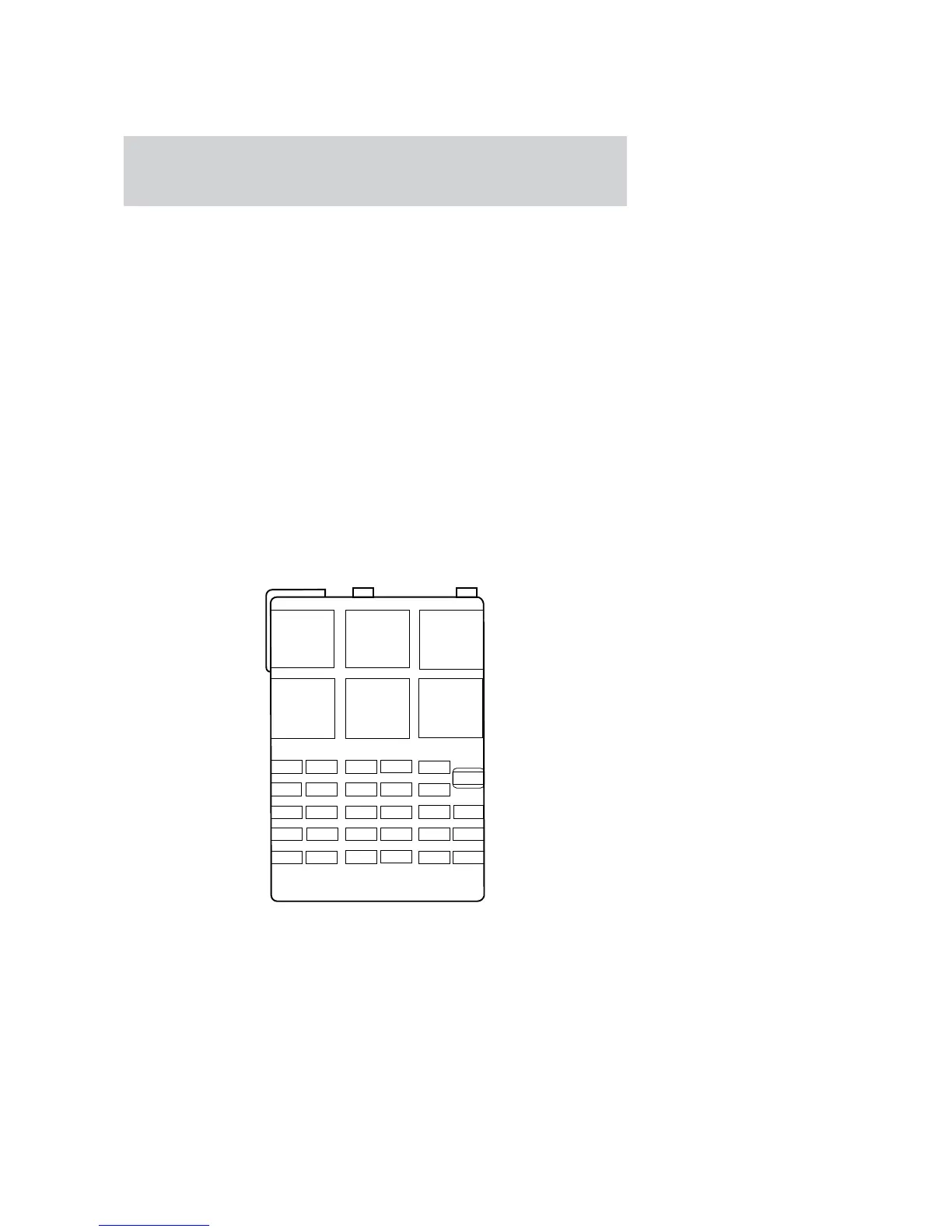

RELAY 1 RELAY 2 RELAY 3
RELAY 4 RELAY 5 RELAY 6
FUSE 1
FUSE 7
FUSE 12
FUSE 18
FUSE 24
FUSE 8
FUSE 13
FUSE 19
FUSE 25
FUSE 9
FUSE 14
FUSE 20
FUSE 26
FUSE 10
FUSE 15
FUSE 21
FUSE 27
FUSE 11
FUSE 16
FUSE 22
FUSE 28
FUSE 17
FUSE 23
FUSE 29
FUSE 2 FUSE 3 FUSE 4 FUSE 5
FUSE 6
