Ford 2007 Explorer - Passenger Compartment Fuse Panel; Fuses

Passenger compartment fuse panel

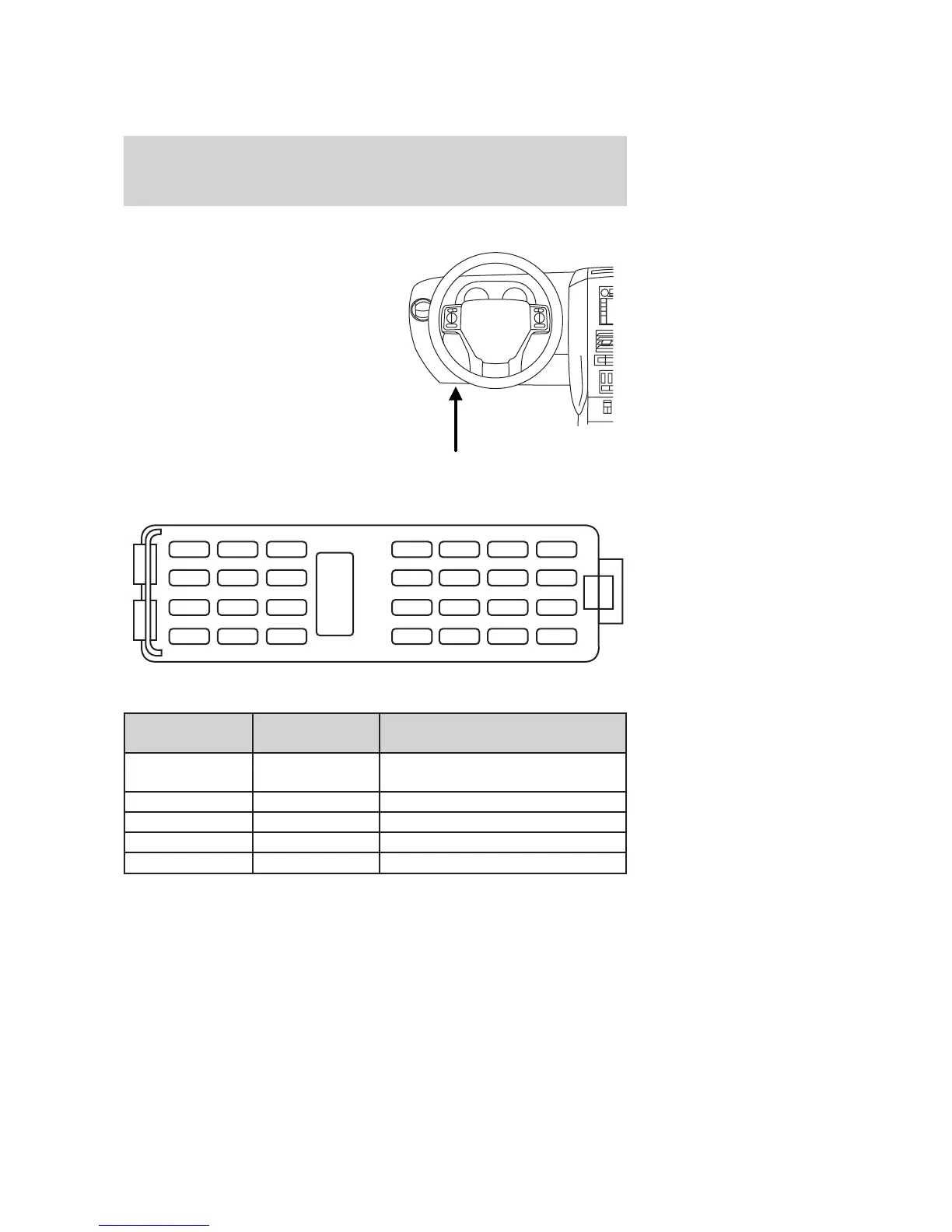

The fuse panel is located below the
instrument panel on the driver’s
side.
To remove a fuse use the fuse puller tool provided on the fuse panel box.
The fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Passenger Compartment Fuse
Panel Description
1 20A Moonroof, Adjustable pedals,
DSM, Memory lumbar motor
2 5A Microcontroller power (SJB)
3 20A Radio
4 10A OBD II connector
5 5A Moonroof
C
B
1
4
3
2
1
8
7
6
5
1
2
1
1
1
0
9
1
6
1
5
1
4
1
3
2
0
1
9
1
8
1
7
2
4
2
3
2
2
2
1
2
8
2
7
2
6
2
5
