Ford 2011 Explorer - Page 330

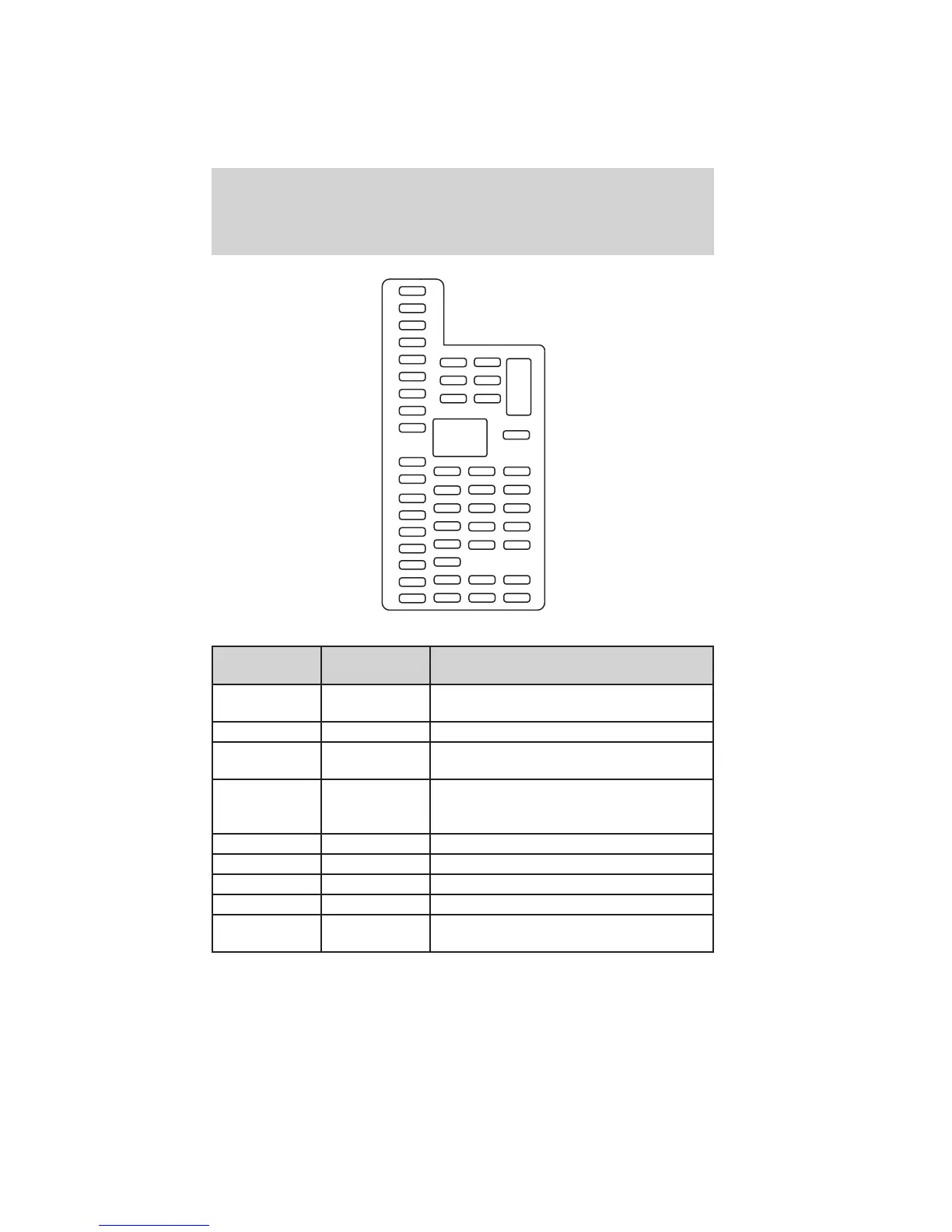

The fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Protected Circuits
1 30A One touch up/down driver side front
window
2 15A Not used (spare)
3 30A One touch up/down passenger side front
window
4 10A Interior demand lamps (overhead
console, 2nd row, cargo), glove box lamp,
2nd and 3rd row seat release, visor lamps
5 20A Amplifier
6 5A Not used (spare)
7 7.5A Memory seat module logic feed
8 10A Not used (spare)
9 10A 4” Radio display (without SYNC威), Power
liftgate logic, Electronic finish panel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22 33 41
42
43
44
45
34
35
36
37
23
24
25
26
27
28 38 46
39 4729
32
40
31
30
48
49
