Replacing high-mount brake lamp bulbs
Your vehicle is equipped with an LED center high-mount stop lamp.
It is designed to last the life of the vehicle. If replacement is required,
see your authorized dealer.

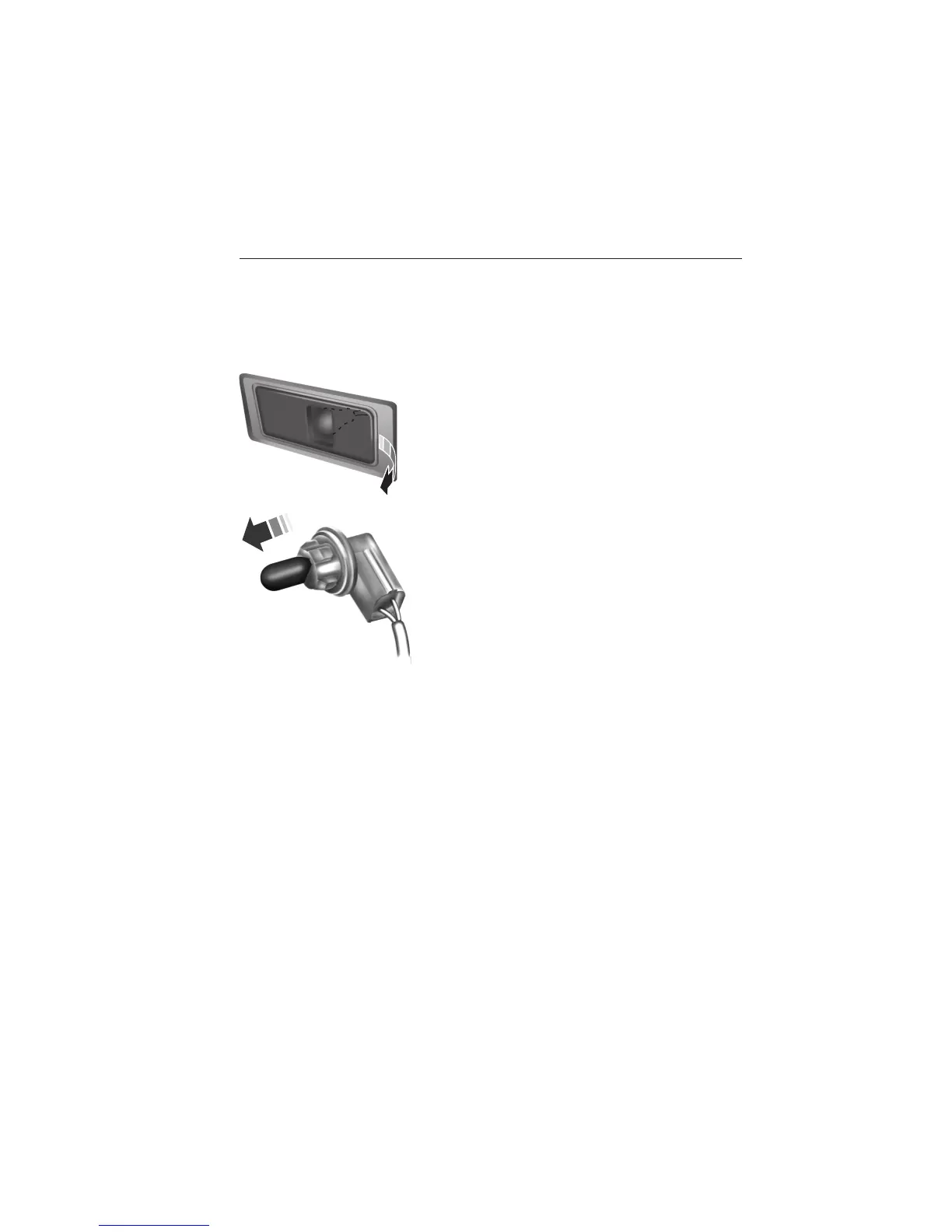

Replacing license plate lamp bulbs
1. Make sure the headlamp switch is in the off
position.
2. Press the lever and carefully pry the license
plate lamp assembly (located above the license
plate) from the liftgate.
3. Rotate the bulb socket counterclockwise and
remove from lamp assembly.
4. Pull bulb straight out of socket and push in
the new bulb.
5. Install the bulb socket into the lamp
assembly and rotate clockwise.
6. To install, carefully press the lamp assembly
into the liftgate.
294 Maintenance
2014 Edge (edg)
Owners Guide gf, 2nd Printing, March 2014
USA (fus)
