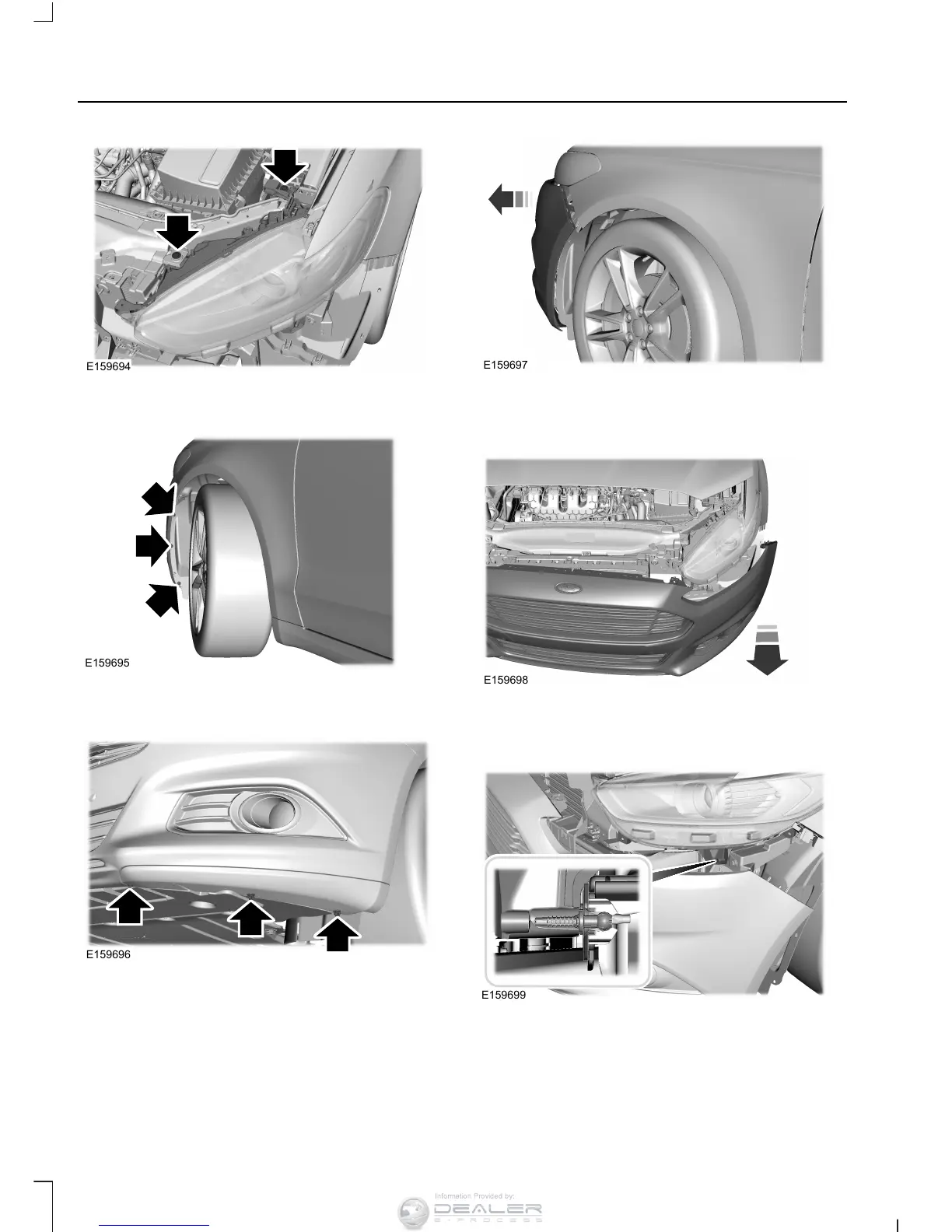

5. Remove the two headlamp assembly
screws.
6. Remove the lower three wheel housing
fasteners.
7. Remove the three front bumper cover
lower fasteners, only on the side of the
headlamp you are servicing.
8. Separate the front bumper cover from
the fender and pull the fender outward
1.2 inches (3 centimeters).
9. From the front of the vehicle, pull the
front bumper cover forward 4 inches
(10 centimeters).
10. Carefully pull the headlamp assembly
outward to disengage it from the
lower fixing point.
250
Fusion (CC7) , enUSA
Maintenance
