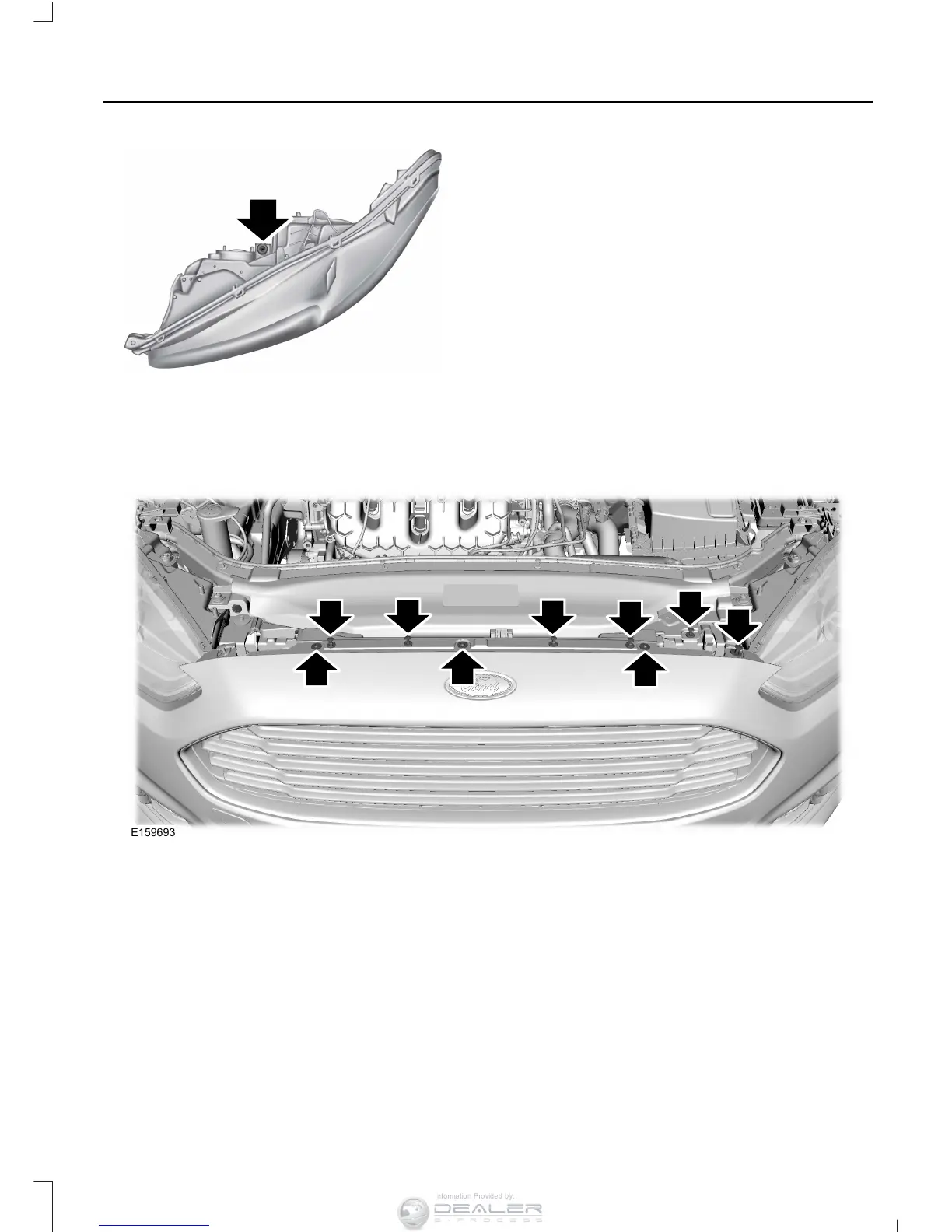

5. Locate the vertical adjuster on each
headlamp. Using a Phillips #2
screwdriver, turn the adjuster either
clockwise or counterclockwise in order
to adjust the vertical aim of the
headlamp. The horizontal edge of the
brighter light should touch the
horizontal reference line.
6. Close the hood and turn off the lamps.
Horizontal Aim Adjustment
Horizontal aim is not required for this
vehicle and is not adjustable.
REMOVING A HEADLAMP
1. Make sure the headlamp control is in
the off position and open the hood.
2. Remove the six fasteners securing the
front fascia to the front trim cover.
3. Remove the three bumper cover upper
screws.
4. Remove the fastener at the inboard
side of the headlamp you are servicing.
249
Fusion (CC7) , enUSA
Maintenance
