Ford 2014 TRANSIT CONNECT User Manual

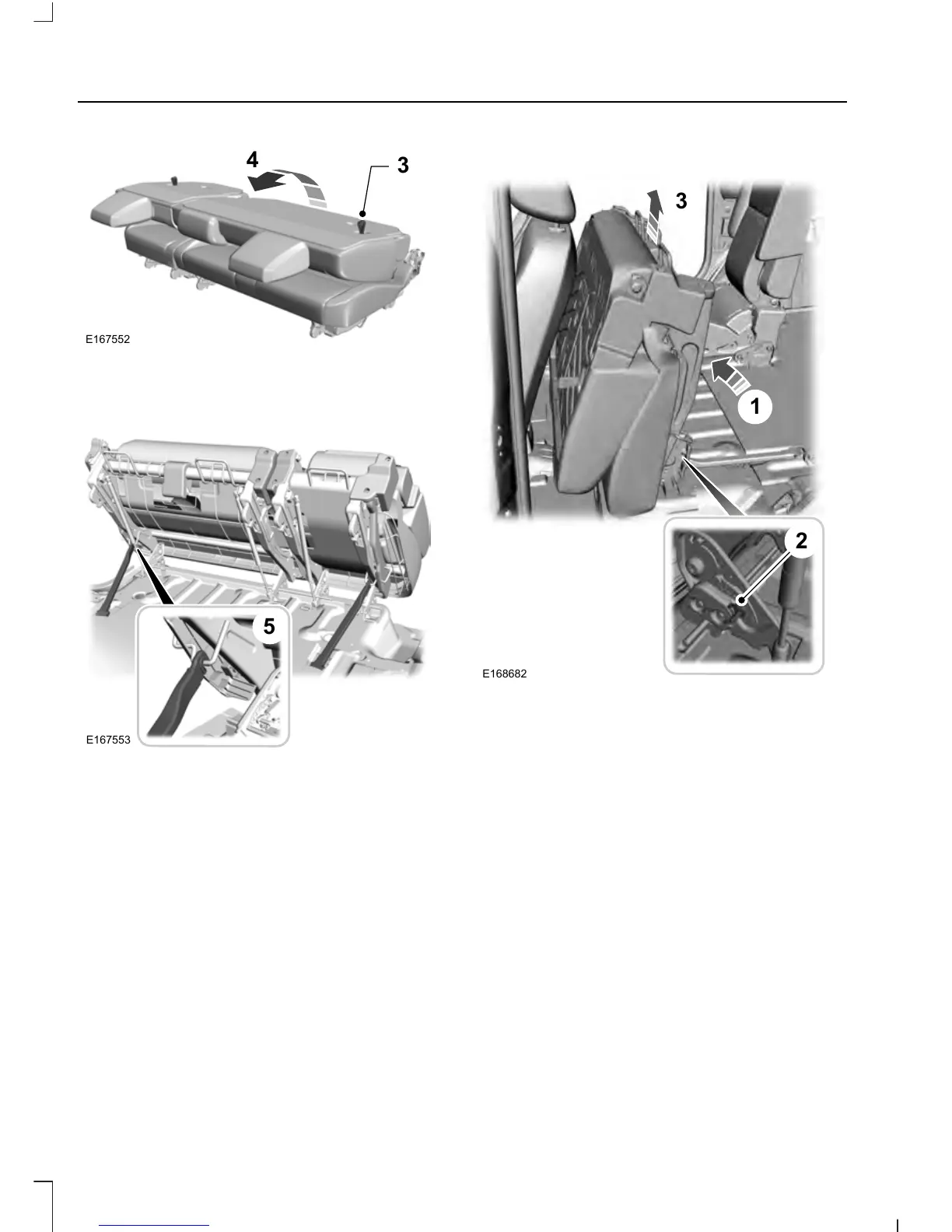

E167552
4
3
3. Pull the strap on the rear of the
seatback.
4. Raise the seat.
E167553
5
5. Lift the support rod and connect it to
the seat frame. This prevents the seat
from falling backward.
Note: Rear row occupants can sit next to a
seat in the same row that has the seatback
in the folded position, but not when the seat
is in the tilted position.
Unfolding the Seat
1. Disconnect the support rod from the
seat frame.
2. Unfold the seat backward and lock into
position.
3. Unfold the seat back backward and
lock into position.
Removing the Seats
E168682
1
3
2
1. Raise the seat.
2. Rotate the locking lever.
3. Remove the seat.
Refitting the Seat
1. Align the seat catches, push the seat
down and lock into position.
2. Unfold the seat backward and lock into
position.
3. Unfold the seat back backward and
lock into position.
102
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, Edition date: 07/2013
Seats
