Vehicles With Seven Seats

Second Row Seats

Folding the Seat Flat

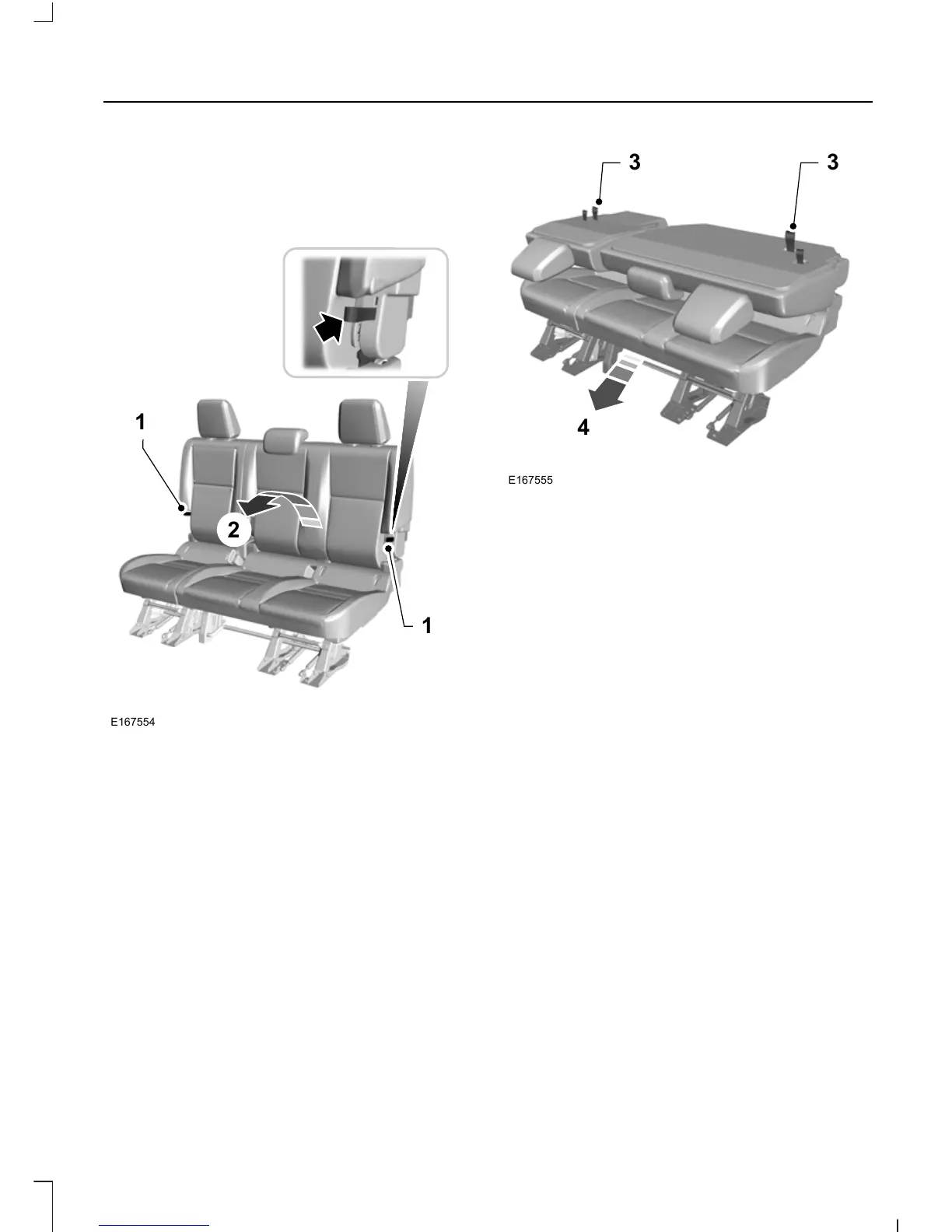

E167554

1. Pull the strap on the side of the

seatback.

2. Fold the seatback forward.

E167555

3. Pull the large strap on the rear of the

seatback.

4. Move the seat forward to the lowered

position.

Note: A distinct click will be heard when

the seat is locked in the lowered position.

Note: Rear row occupants can sit next to a

seat in the same row that has the seatback

in the folded position, but not when the seat

is in the tilted position.

103

Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, Edition date: 07/2013
