Ford 2017 EXPLORER - Changing a Fuse

Protected componentsFuse amp ratingFuse or relay number
Not used.—30
Not used.—31
SYNC.
10A
1
32
GPS module.
Display.
Radio frequency receiver.
Radio.
20A
1
33
Run/start relay.
30A
1
34
Restraints control module.
5A
1
35
Extended power module.
Lane departure warning module.
15A
1
36
Auto high beam.
EC mirrors.
Rear heated seats.
Heated steering wheel.
20A
1
37
Left-hand front window motor.
30A
3
38
Rear power window motors.
1
Micro fuse.
2
Dual micro fuse.
3
Circuit breaker.
CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire.

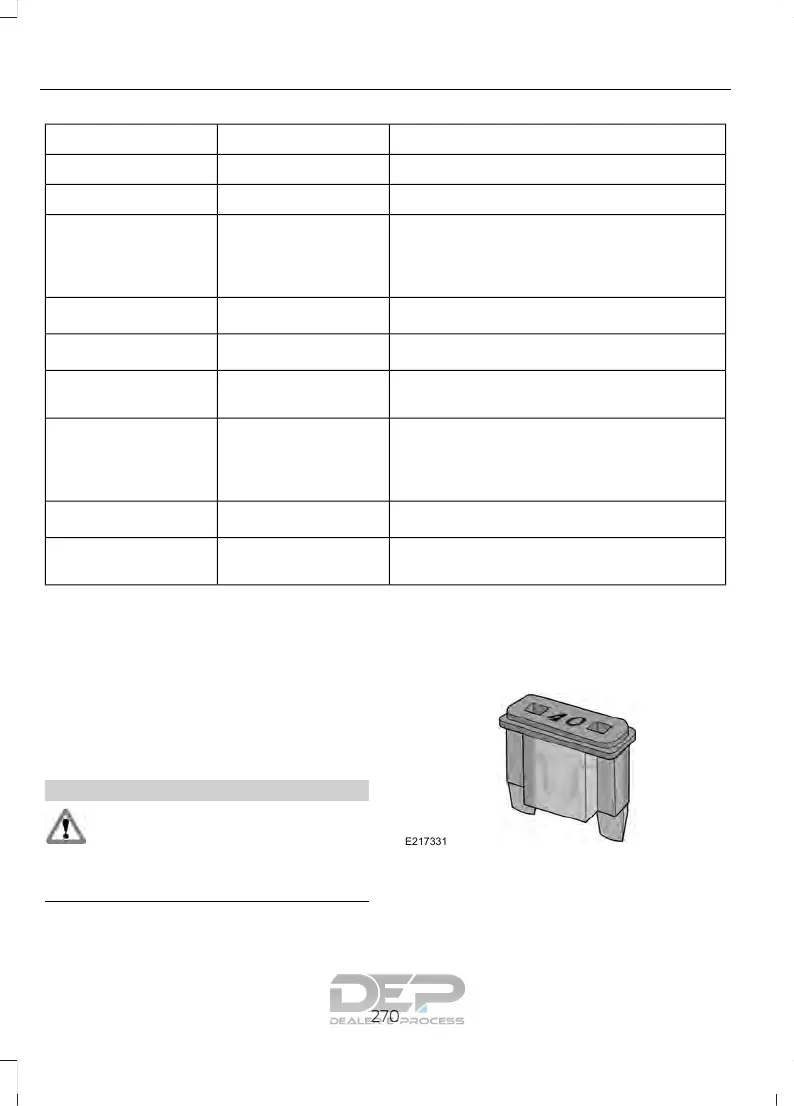

E217331
If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
270
Explorer (TUB) Canada/United States of America, enUSA, Edition date: 03/2016, First Printing
Fuses
