Ford 2017 EXPLORER - Under Hood Overview - 2.3 L Ecoboost

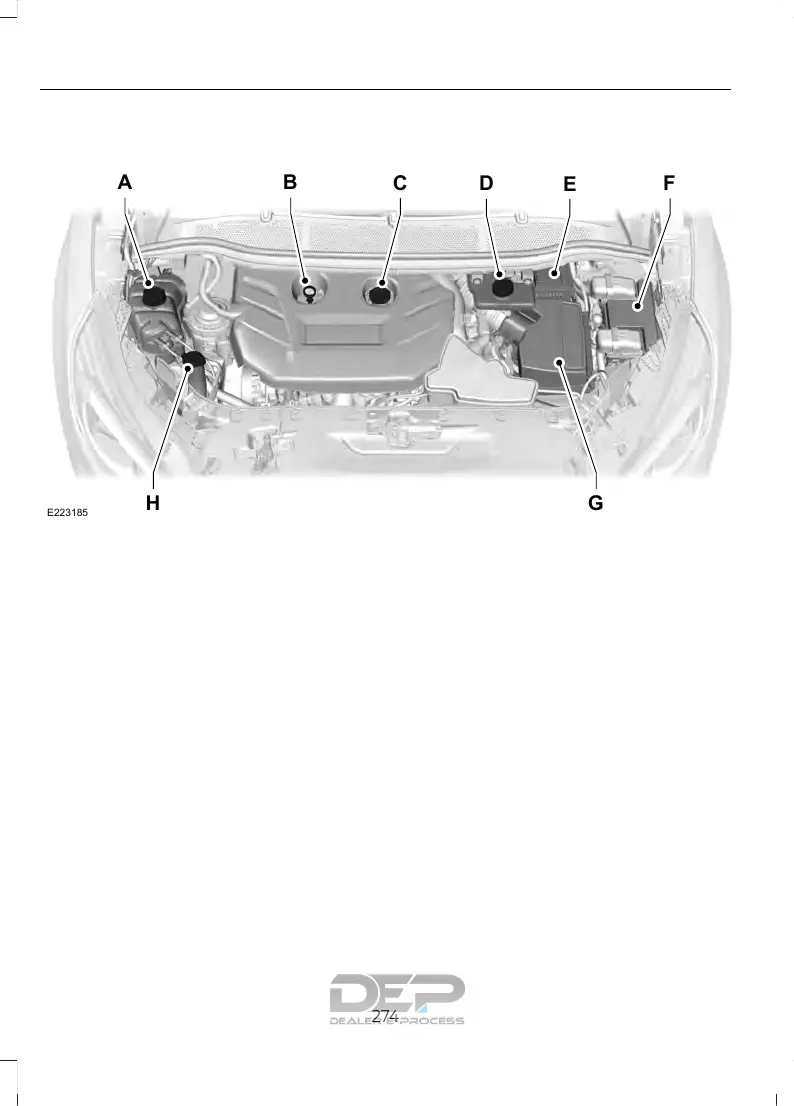

UNDER HOOD OVERVIEW - 2.3L ECOBOOST™
A
H G
D
B
C
E
F
E223185
Engine coolant reservoir. See Engine Coolant Check (page 279).A
Engine oil dipstick. See Engine Oil Dipstick (page 277).B
Engine oil filler cap. See Engine Oil Check (page 277).C
Brake fluid reservoir. See Brake Fluid Check (page 285).D
Battery. See Changing the 12V Battery (page 286).E
Engine compartment fusebox. See Fuse Specification Chart (page 262).F
Air filter assembly. See Changing the Engine Air Filter (page 296).G
Windshield washer fluid reservoir. See Washer Fluid Check (page 285).H
274
Explorer (TUB) Canada/United States of America, enUSA, Edition date: 03/2016, First Printing
Maintenance
