GAUGES

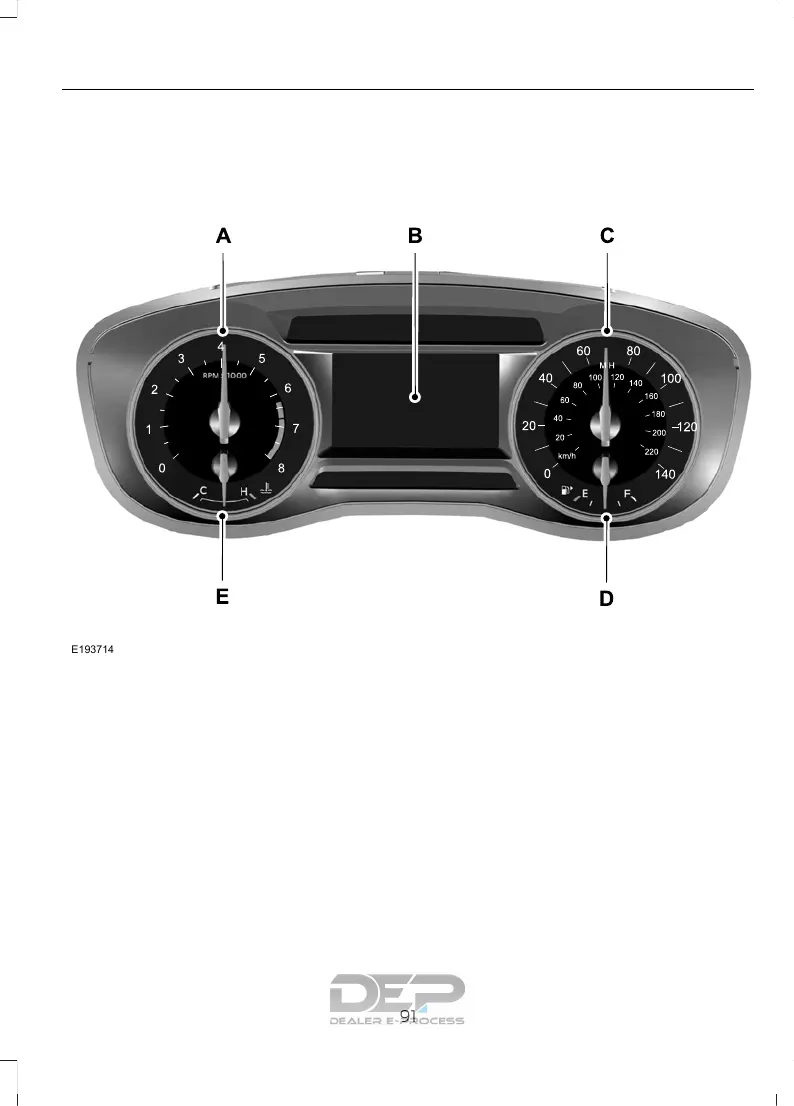

Type 1
E193714
Tachometer.A
Information display. See Information Displays (page 99).B
Speedometer.C
Fuel gauge.D
Engine coolant temperature gauge.E
91
Explorer (TUB) Canada/United States of America, enUSA, Edition date: 03/2016, First Printing
Instrument Cluster
