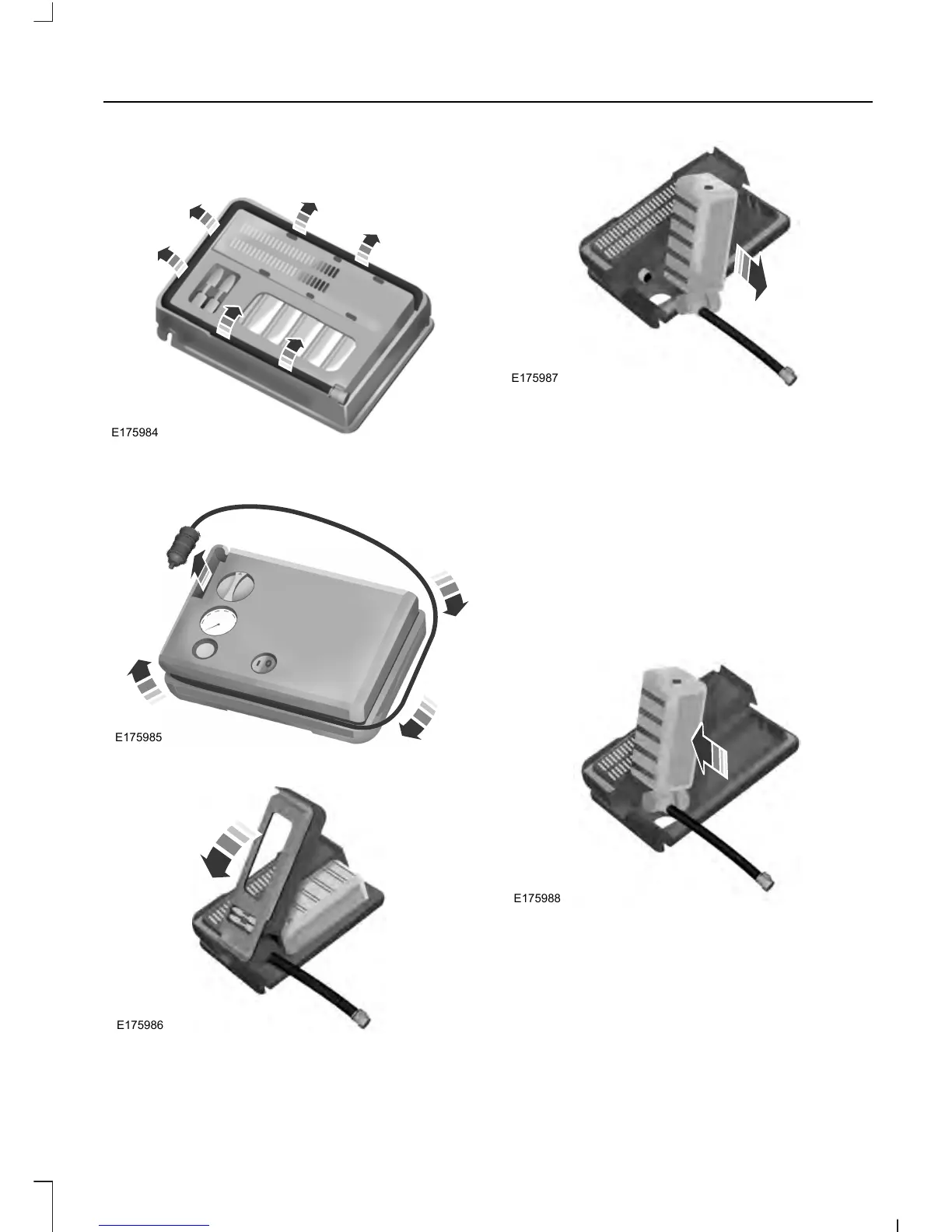

Removal of the sealant canister from

the kit

E175984

1. Unwrap the dual purpose hose (black

tube) from the compressor housing.

E175985

2. Unwrap the power cord.

E175986

3. Remove the back cover.

E175987

4. Rotate the sealant canister up 90

degrees and pull away from

casing/housing to remove.

Installation of the sealant canister to

the kit

1. With the canister held perpendicular

to the housing, insert the canister

nozzle into the connector and push

until seated.

2. Rotate the canister 90 degrees down

into the housing/casing.

E175988

3. Snap the back cover back into place.

291

Fusion (CC7) Canada/United States of America, enUSA, First Printing
