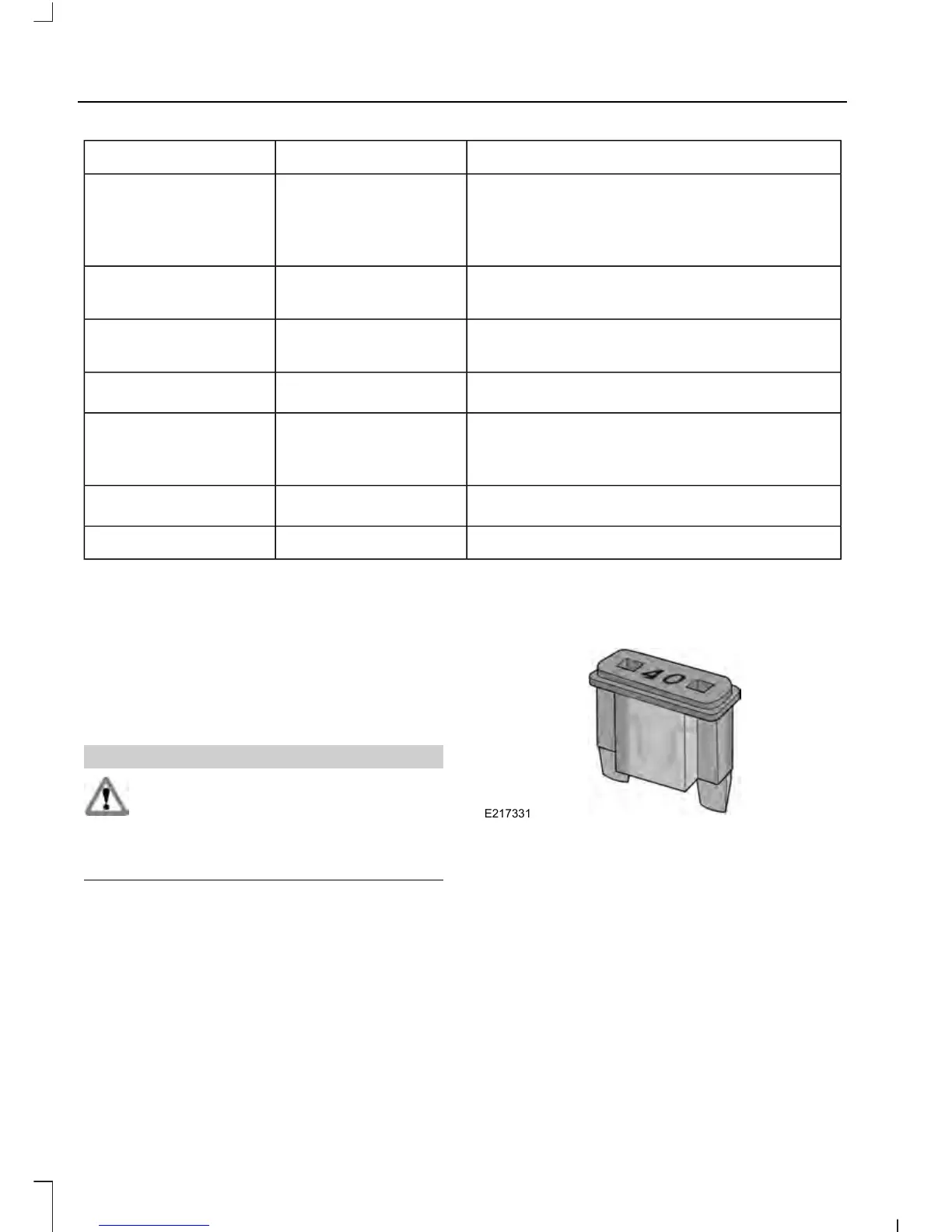

Protected componentsFuse amp ratingFuse or relay number
Global positioning system.
10A
1
32
Display.
Voice control.
Radio frequency receiver.
Radio.
20A
1
33
Active noise control.
Run-start bus (fuse 19, 20, 21, 22, 35, 36,
37, circuit breaker).
30A
1
34
Not used (spare).
5A
1
35
Auto-dimming rear view mirror.
15A
1
36
Continuous control damping suspension.
Rear heated seats.
Heated steering wheel.
20A
1
37
Not used (spare).30A38
1
Micro fuse.
2
Dual micro fuse.
CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire.
E217331
If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
254
Fusion (CC7) Canada/United States of America, enUSA, First Printing
Fuses
