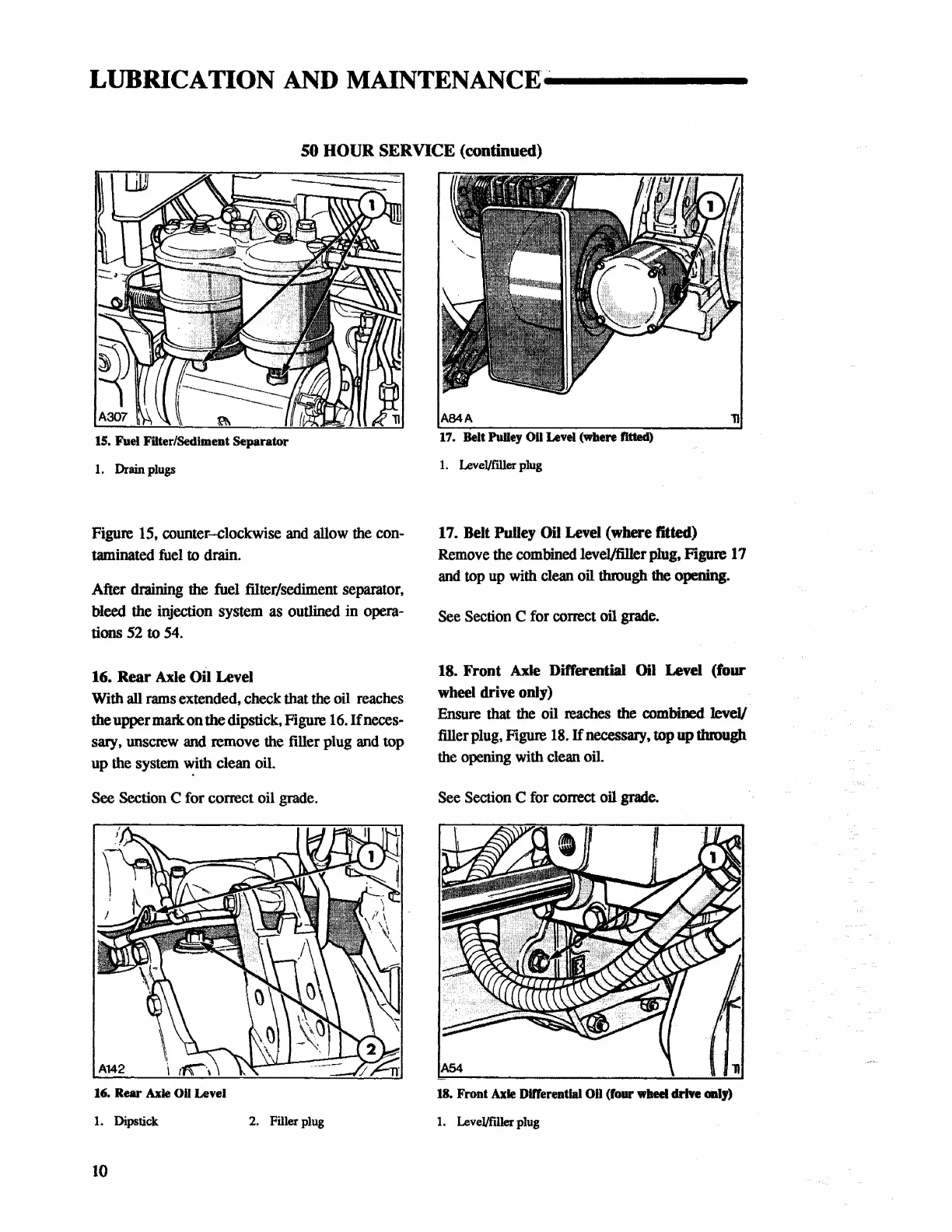

50 HOUR SERVICE (continued)
15. Fuel Filter/Sediment Separator
1. Drain plugs
Figure 15, counter-clockwise and allow the con-
taminated
fuel to drain.
After draining
the fuel filter/sediment separator,
bleed the injection system as outlined in opera-
tions
52 to 54.
16. Rear Axle Oil Level
With all rams extended, check that the oil reaches
the upper mark on the dipstick, Figure 16. If neces-
sary, unscrew and remove the filler plug and top
up the system
~ith clean oil.
See Section C for correct oil grade.
16. Rear Axle OU Level
1. Dipstick
2. Filler plug
10
A84A
17. Belt Pulley OU Level (where fitted)
1. LeveVfiller plug
11
17. Belt Polley Oil Level (where fitted)
Remove the combined leve]/filler plug, Figure 17
and top up with clean oil through the opening.
See Section C for correct oil grade.
18. Front Axle Differential Oil Level (four
wheel drive only)
Ensure that the oil reaches the combined level/
filler plug, Figure 18. If necessary, t.op up through
the opening with clean oil.
See Section C for correct oil grade.
18. Front Axle Differential 011 (four wheel clrlve only)
1. LeveVfiller plug
