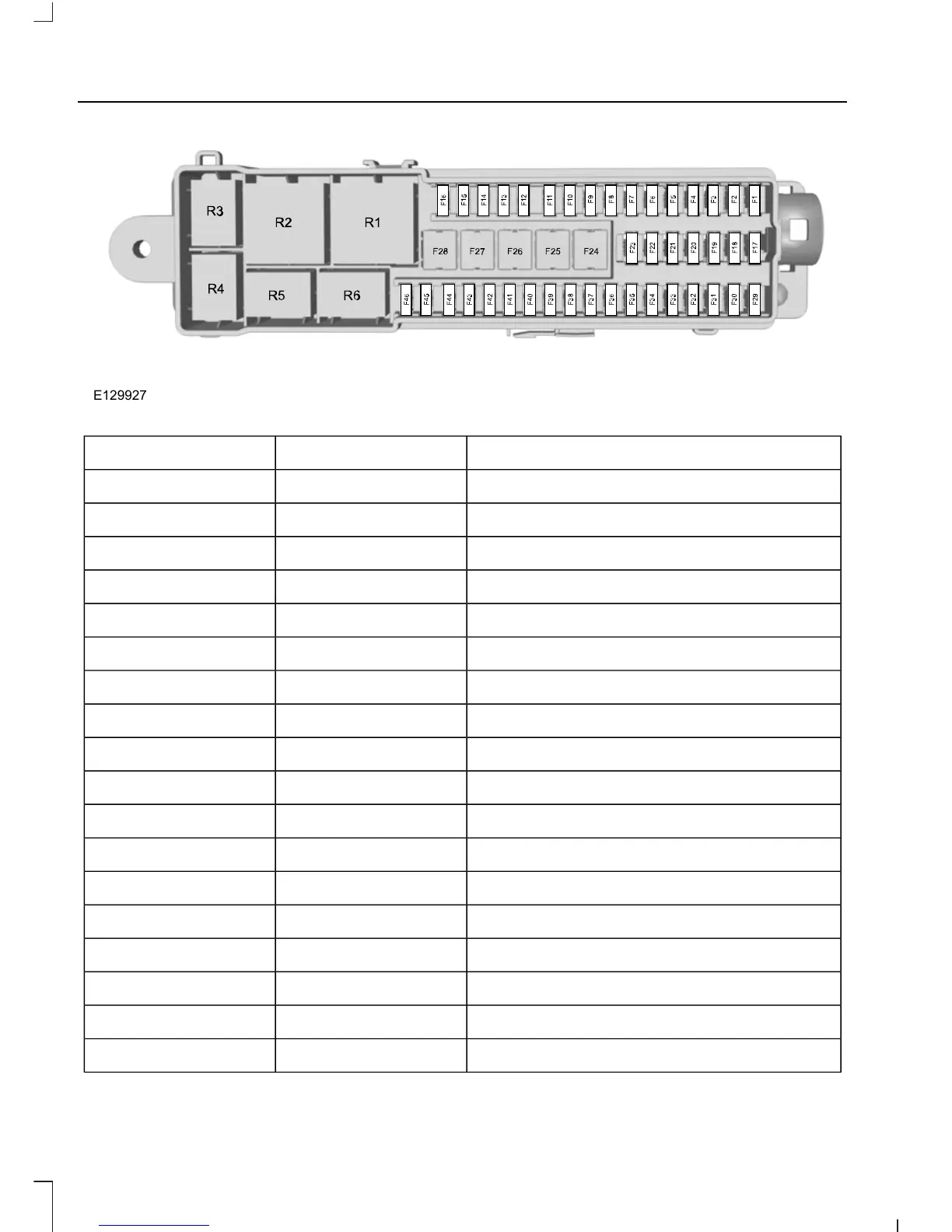

E129927

Protected componentsFuse amp ratingFuse or relay number

Hands-free liftgate entry module.5AF1

Keyless vehicle module.10AF2

Keyless vehicle door handles.5AF3

Door control unit front left.25AF4

Door control unit front right.25AF5

Door control unit rear left.25AF6

Door control unit rear right.25AF7

Not used.—F8

Driver seat motor.25AF9

Heated rear window.25AF10

Ignition relay.5AF11

Battery electronics control module.15AF12

Not used.—F13

Charger (C-MAX Energi).10AF14

Not used.—F15

Not used.—F16

Battery electronics control module.10AF17

Battery electronics control module — fan.15AF18
