UNDER HOOD OVERVIEW -
PLUG-IN HYBRID ELECTRIC
VEHICLE (PHEV)
WARNING
The inverter system controller
contains various high-voltage
components that can cause serious
bodily harm or death. The inverter system
controller is not serviceable and should
never be touched, probed, or tampered
with.
Note: Do not attempt to service any of the
high-voltage components or wiring. For
easier identification, the high-voltage wiring
insulation is color coated orange.

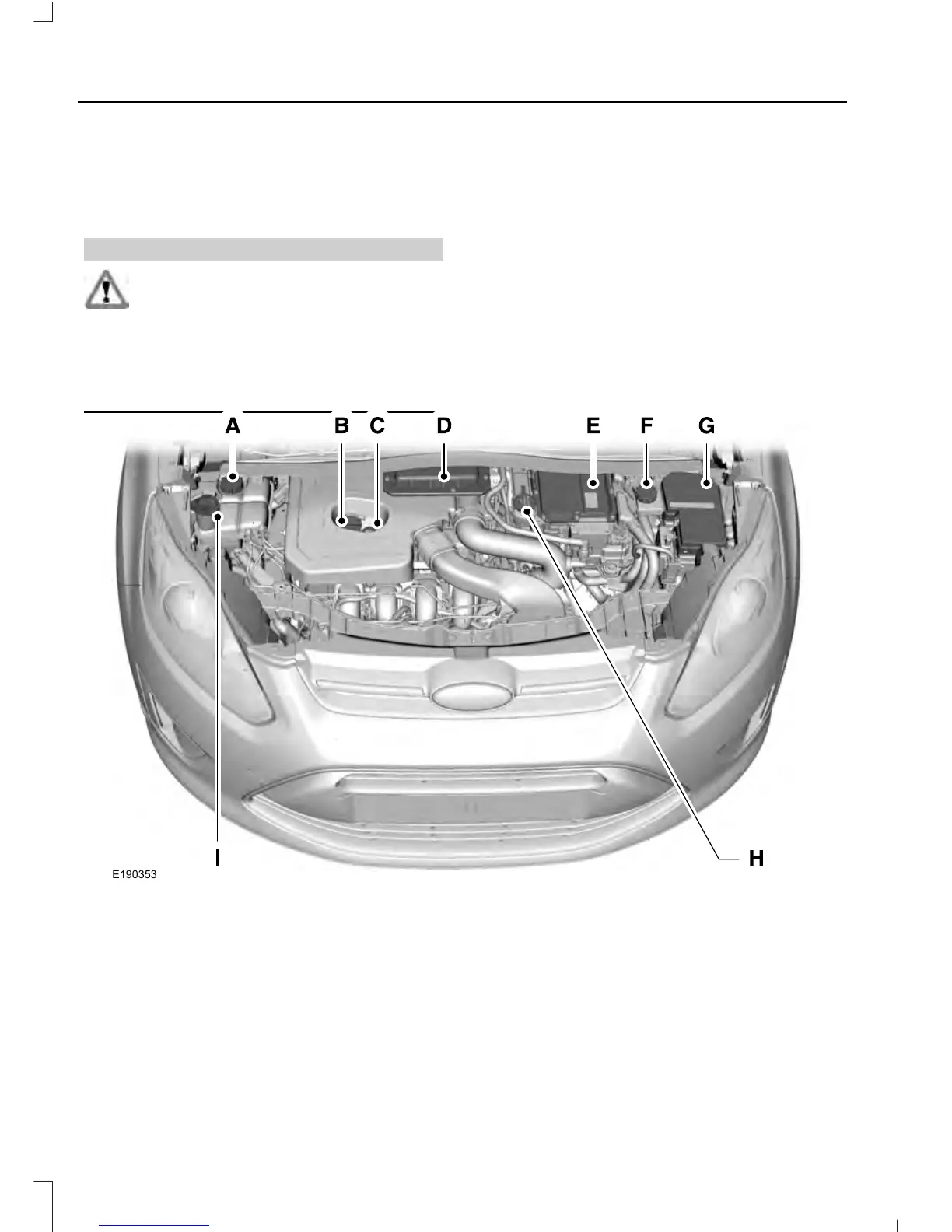

E190353
Engine coolant reservoir cap. See Engine Coolant Check (page 214).A
Engine oil filler cap. See Engine Oil Check (page 213).B
Engine oil dipstick. See Engine Oil Dipstick (page 213).C
Engine air filter cover. See Changing the Engine Air Filter (page 230).D
Inverter system controller.E
Brake fluid reservoir cap. See Brake Fluid Check (page 218).F
